Compact Disc Changer Connector End View

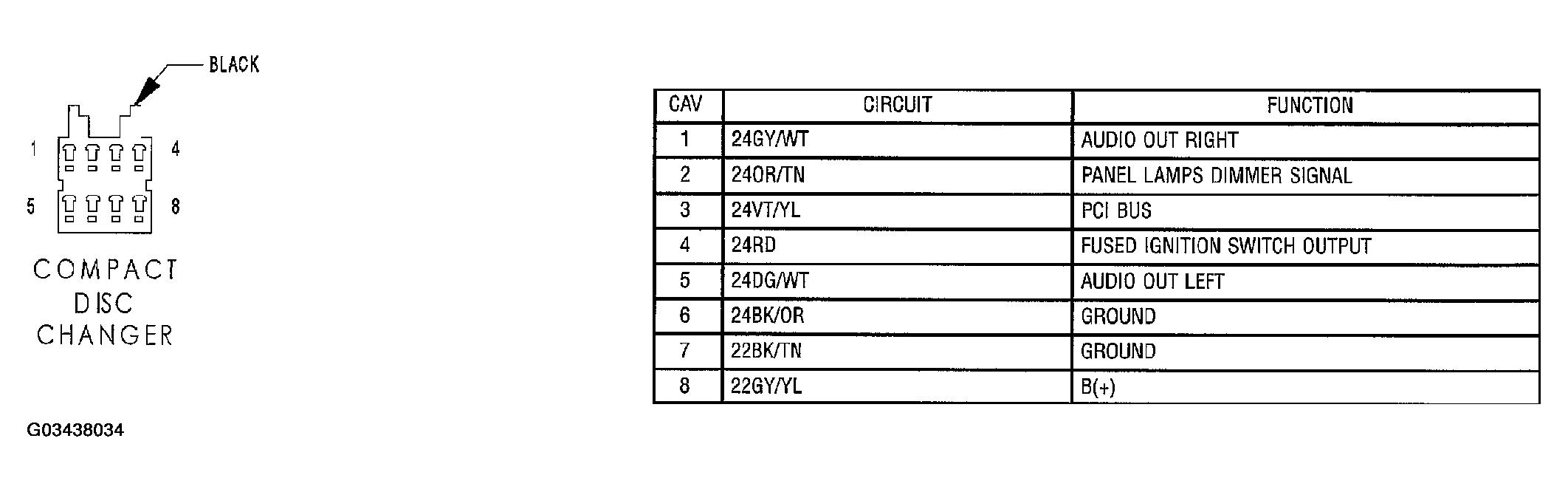

Fig 1: Compact Disc Changer Connector End View
G03438034Courtesy of CHRYSLER GROUP, LLC
