Driver Power Mirror Connector End View
Driver Power Mirror Connector End View

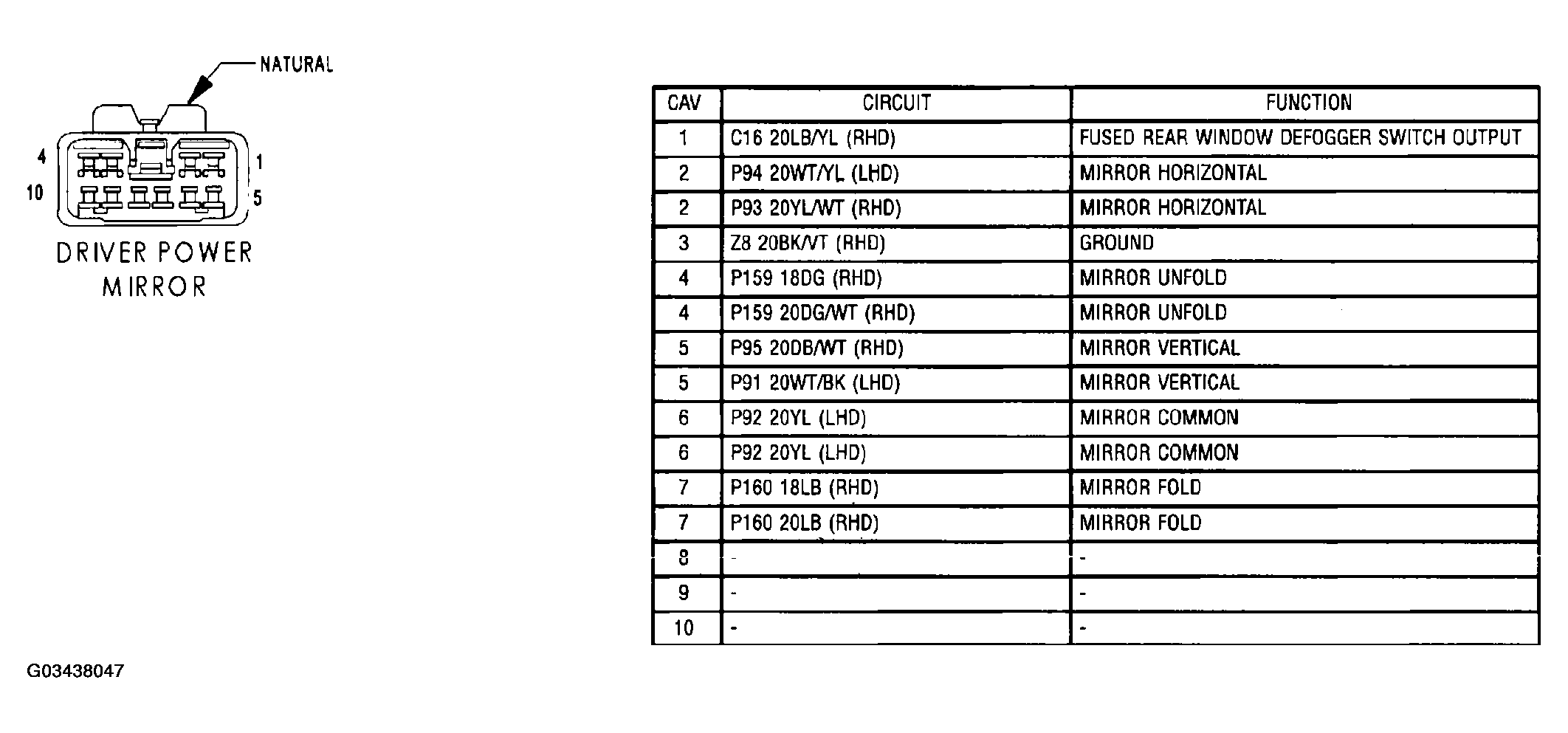

Fig 1: Driver Power Mirror Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
