Electronic Throttle Control Module Connector End View

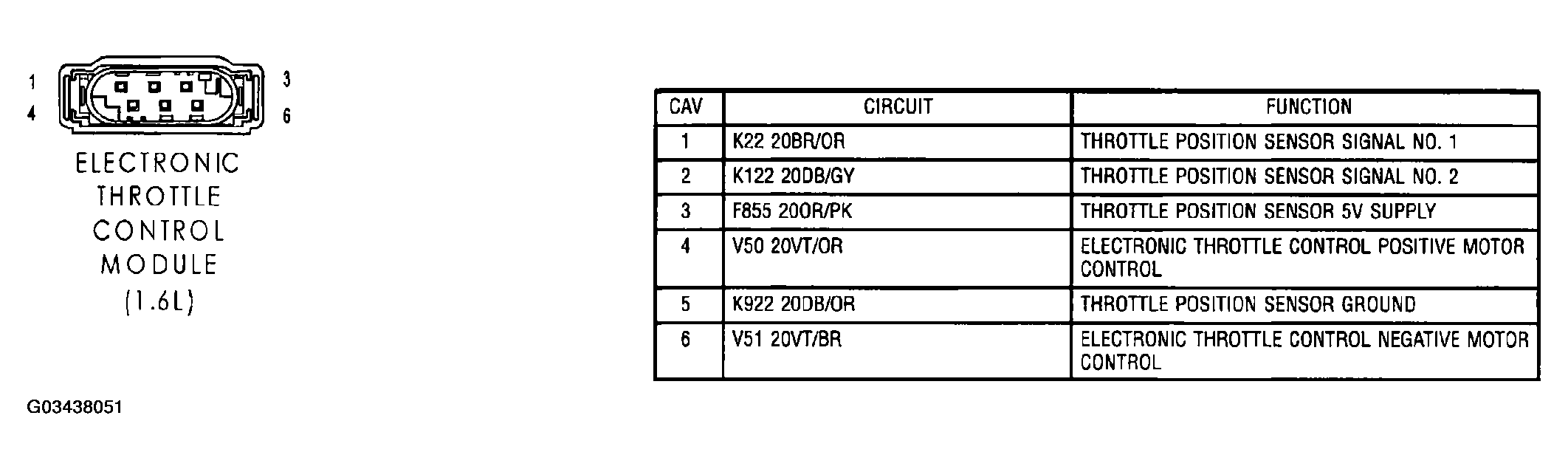

Fig 1: Electronic Throttle Control Module Connector End View
G03438051Courtesy of CHRYSLER GROUP, LLC
