Multifunction Switch Connector End View

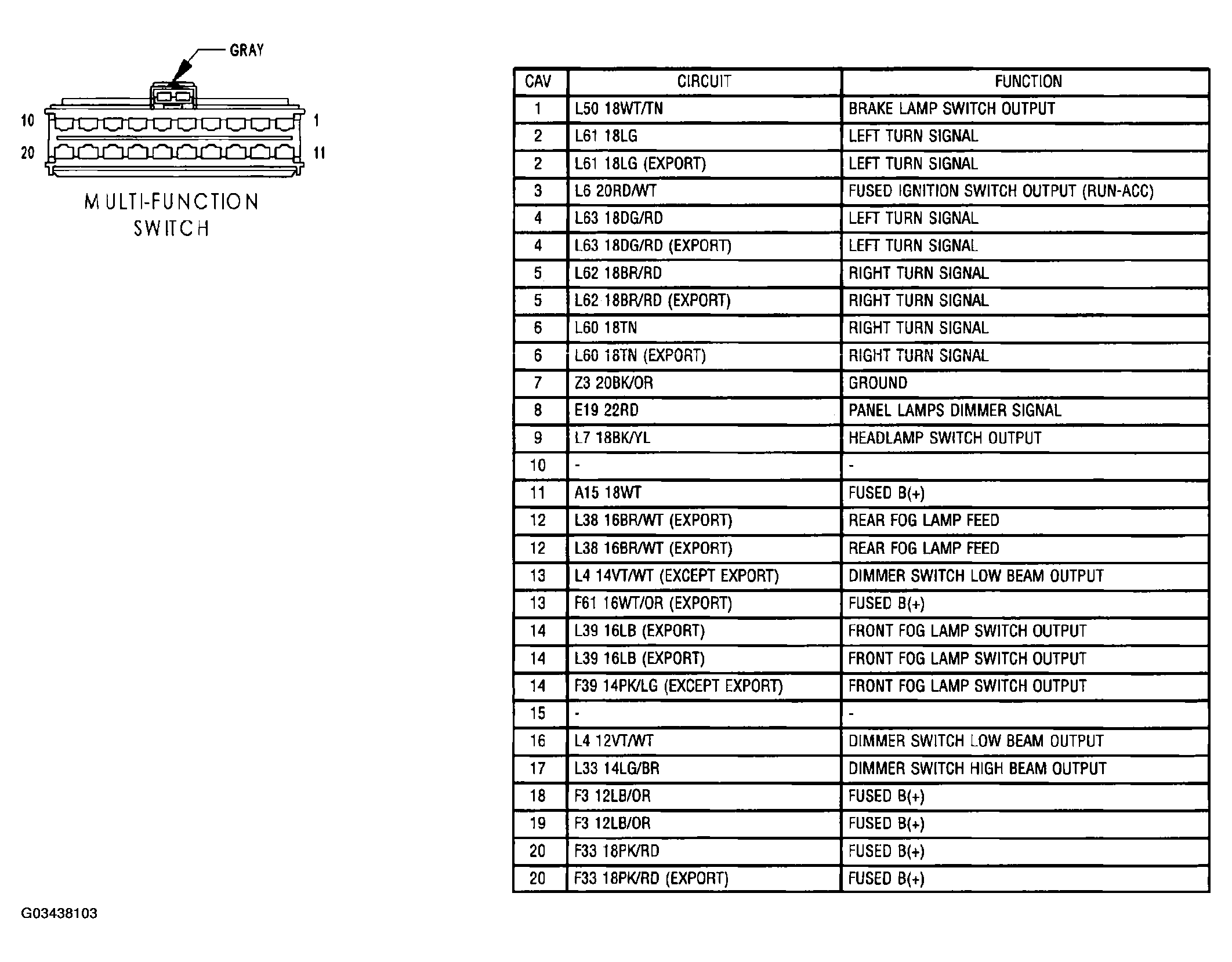

Fig 1: Multifunction Switch Connector End View
G03438103Courtesy of CHRYSLER GROUP, LLC
