Passenger Power Window Switch (LHD) Connector End View
Passenger Power Window Switch (LHD) Connector End View

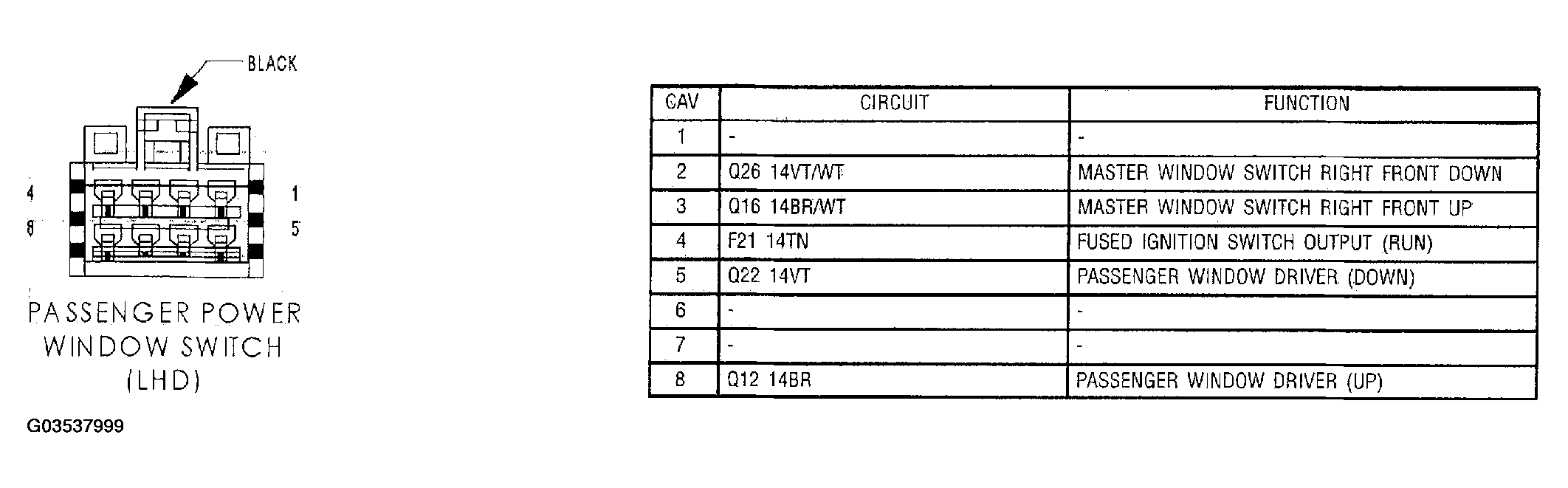

Fig 1: Passenger Power Window Switch (LHD) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
