Powertrain Control Module C1 (2.0L Next Generation Controller) Connector End View

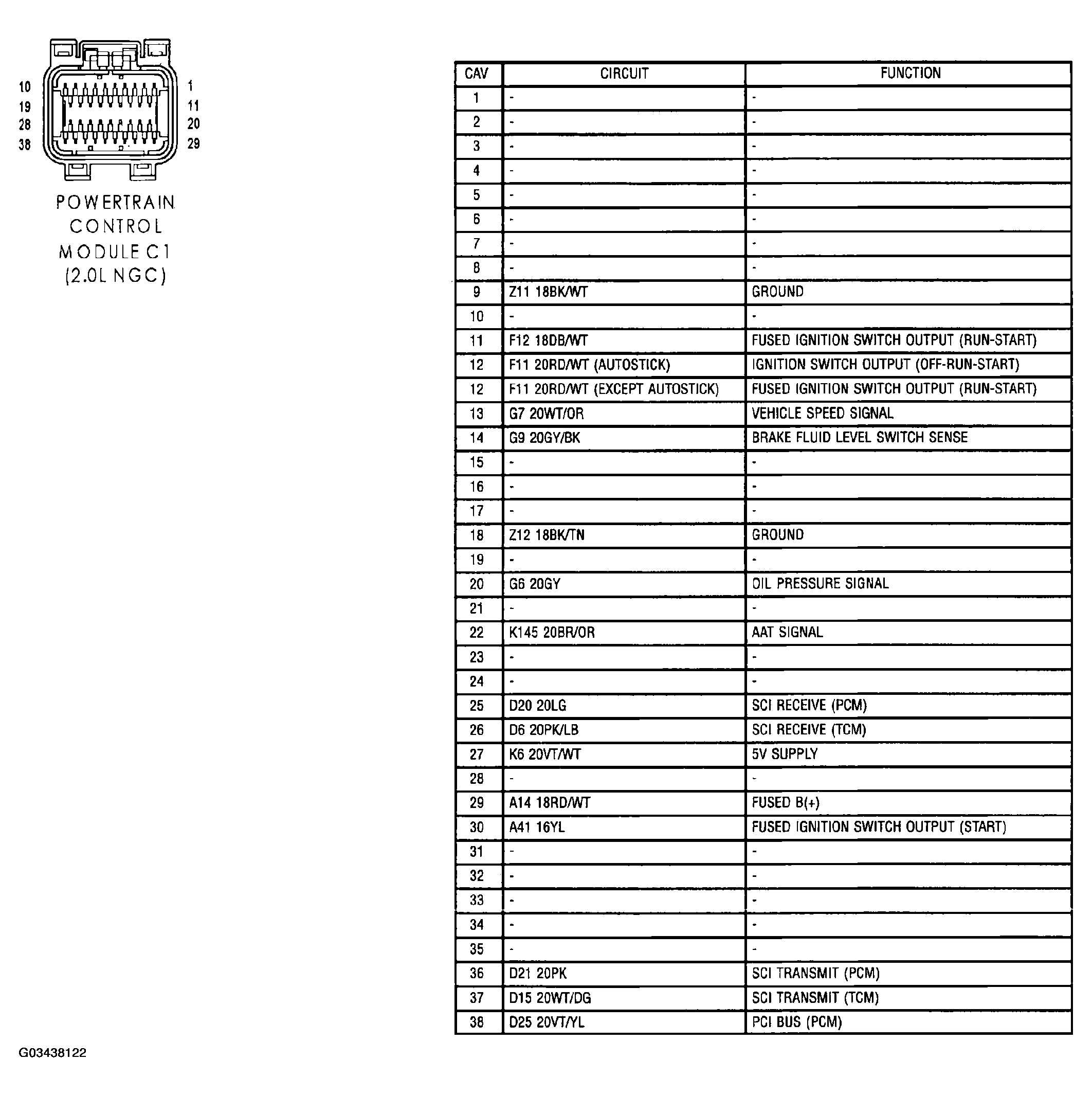

Fig 1: Powertrain Control Module C1 (2.0L Next Generation Controller) Connector End View
G03438122Courtesy of CHRYSLER GROUP, LLC
