Powertrain Control Module C4 (2.0L Next Generation Controller) Connector End View

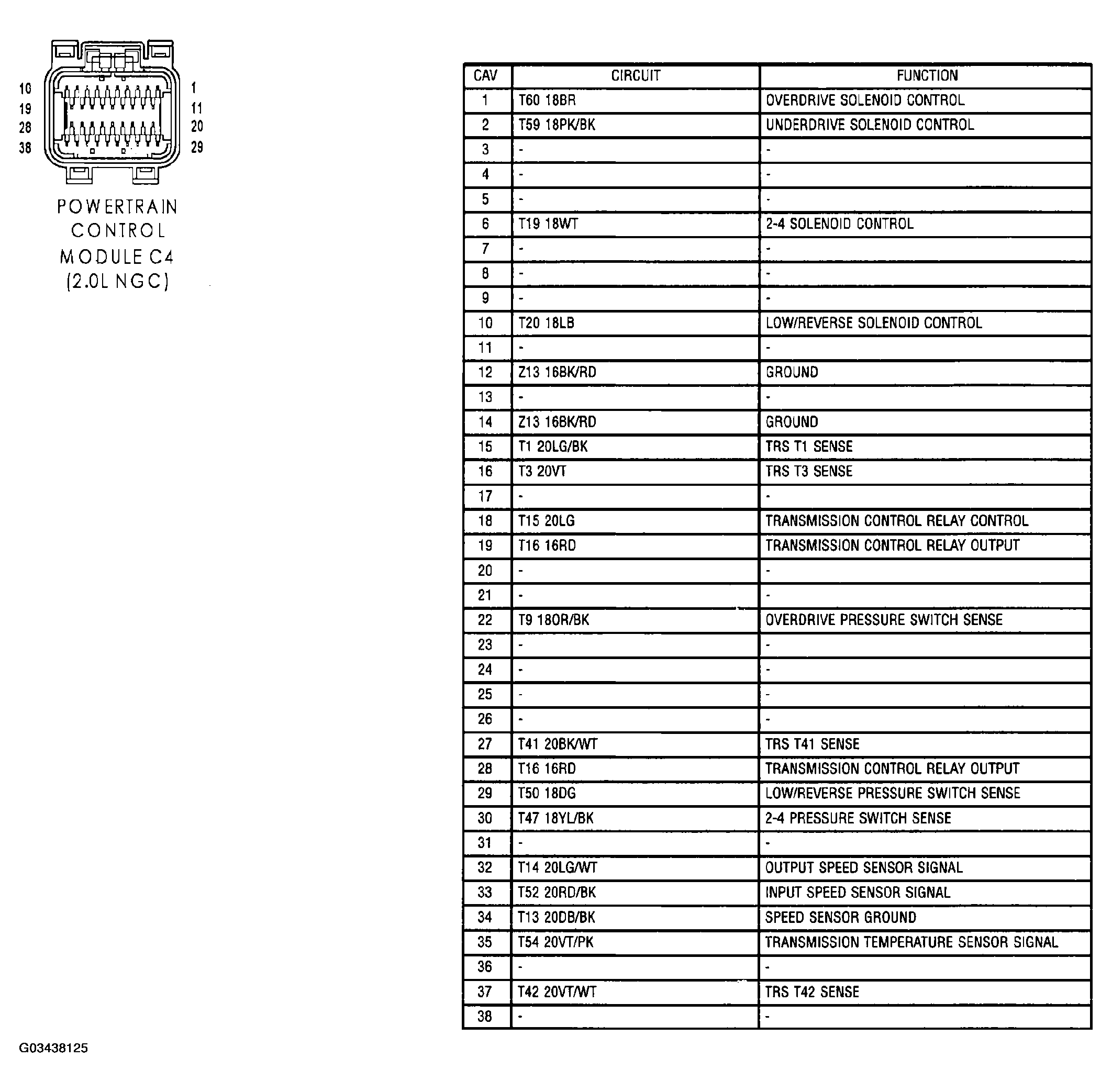

Fig 1: Powertrain Control Module C4 (2.0L Next Generation Controller) Connector End View
G03438125Courtesy of CHRYSLER GROUP, LLC
