Powertrain Control Module C4 Connector End View (Green 38-Way)

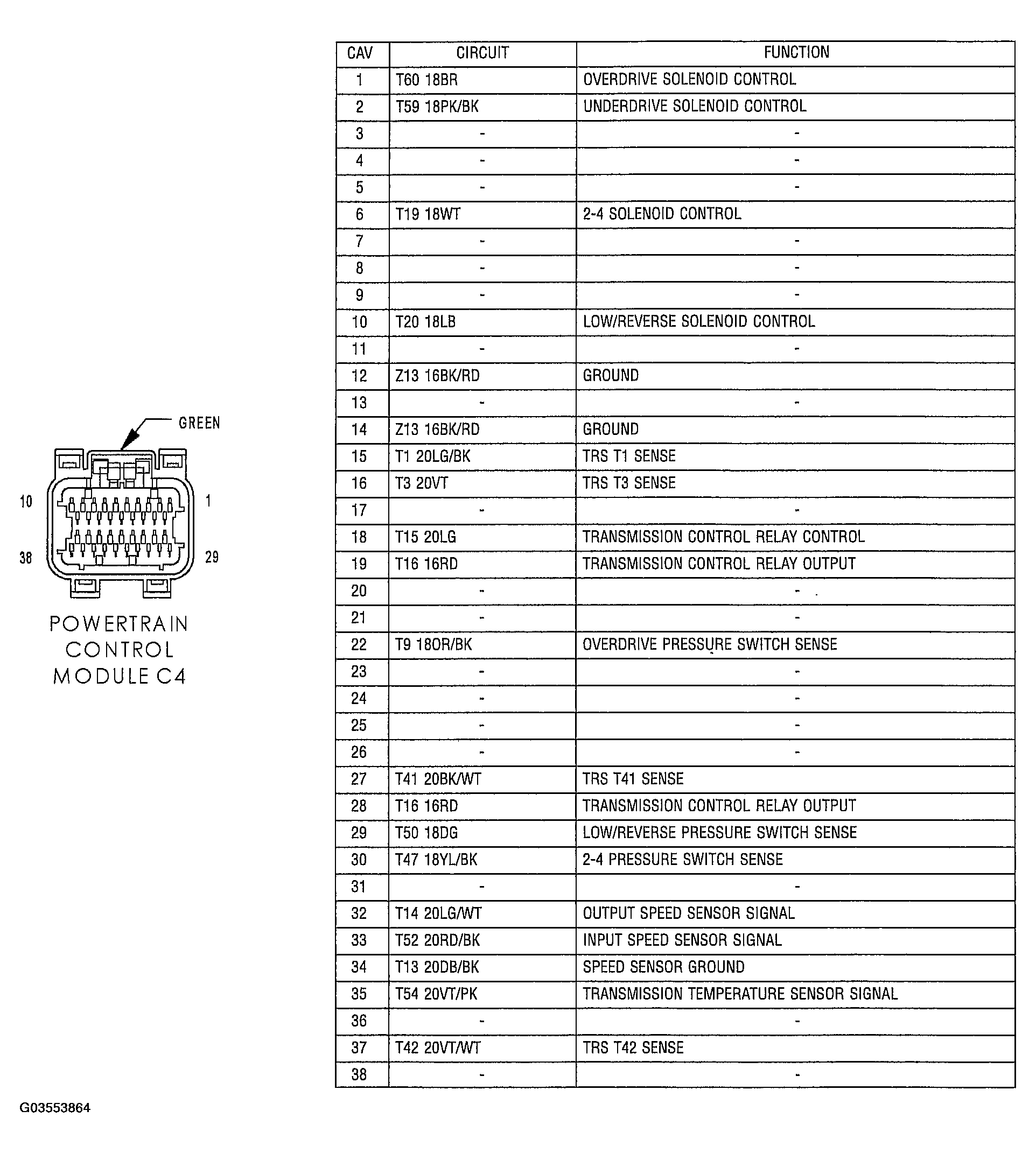

Fig 1: Powertrain Control Module C4 Connector End View (Green 38-Way)
G03553864Courtesy of CHRYSLER GROUP, LLC
