Ignition Switch C1 Connector End View

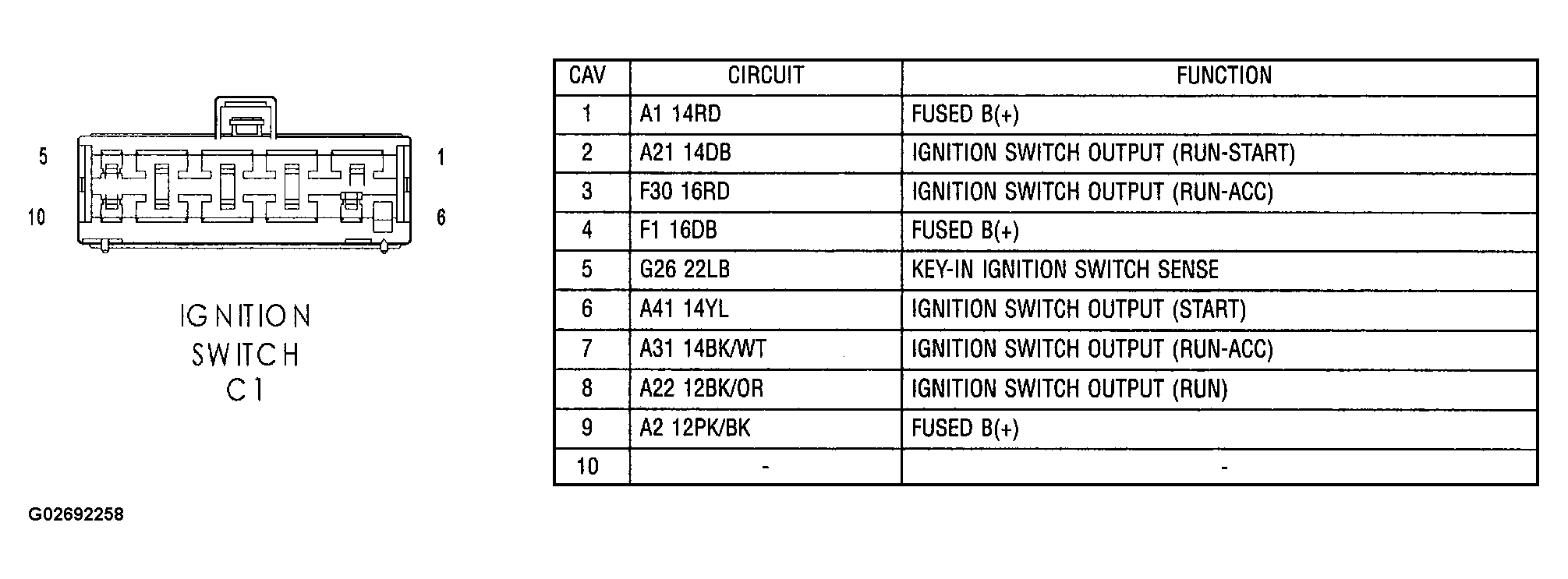

Fig 1: Ignition Switch C1 Connector End View
G02692258Courtesy of CHRYSLER GROUP, LLC
