Clutch Interlock/UPSTOP Switch: Removal: RHD

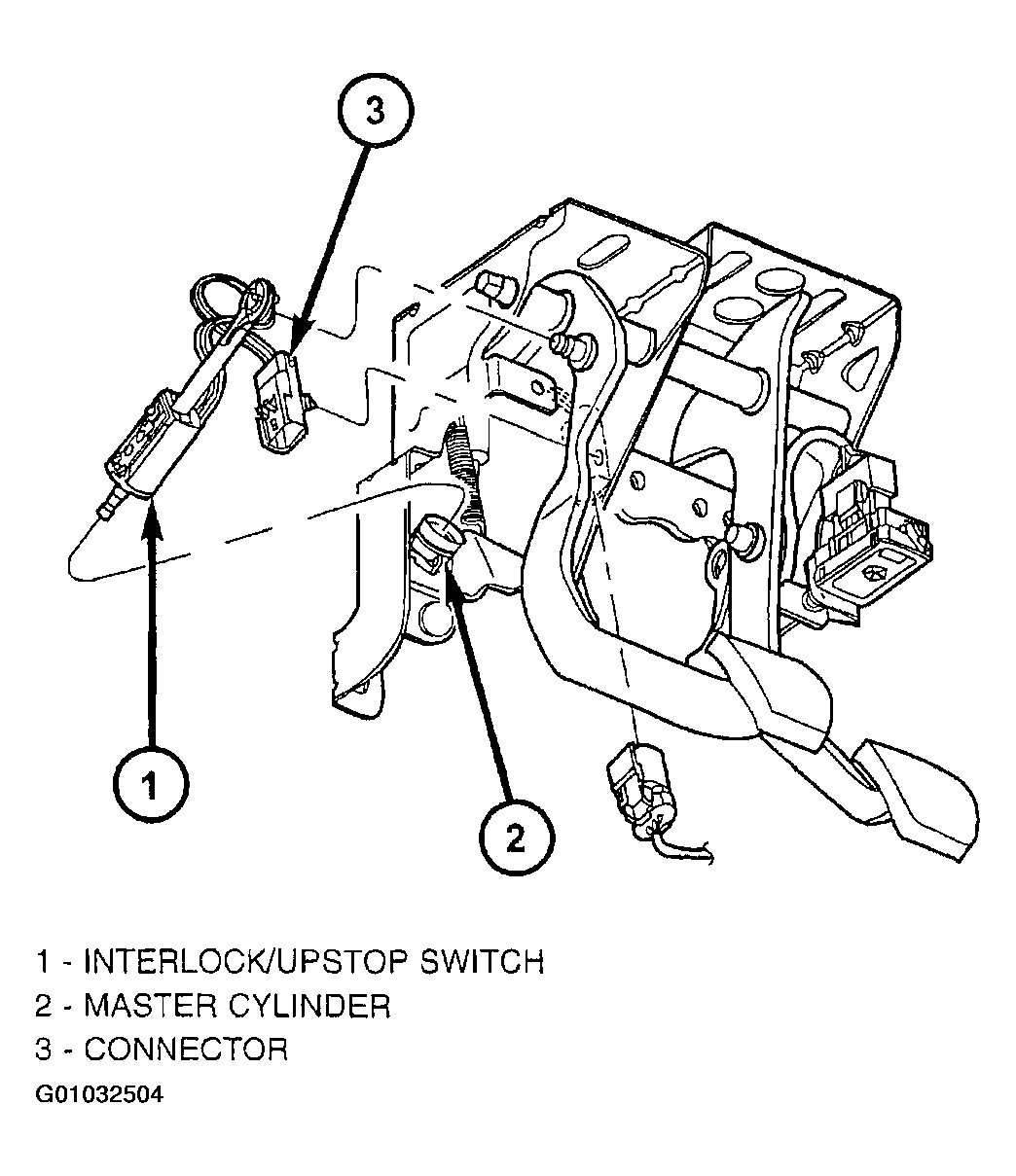

- Disconnect the master cylinder push rod from the pedal pin. (Fig 1). Inspect push rod retainer for damage. If it is damaged (broken/cracked), it must be replaced.
- Squeeze together the tangs on the switch cover plate and slide the plate off the switch housing.
- Disconnect the clutch interlock/upstop switch connector from the instrument panel wiring harness.
- Remove the switch from the vehicle.
