Component Locations

NOTE: For component locations, see Fig 1 - Fig 2 .

COMPONENT LOCATIONS

Component	Location
Fuse Block	At Lower Left Front Of Dash. See Fig 1 .
Power Distribution Center	On Left Side Of Engine Compartment. See Fig 2 .
Power Seat Motor	Located Between The Seat Tracks And Upper Supports. See Fig 3 .
Power Seat Switch	On Outboard Seat Cushion Side Shield. See Fig 4 .

Fig 1: Locating Components Under Left Side Of Dash

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Locating Power Distribution Center (PDC)

Courtesy of CHRYSLER CORP.

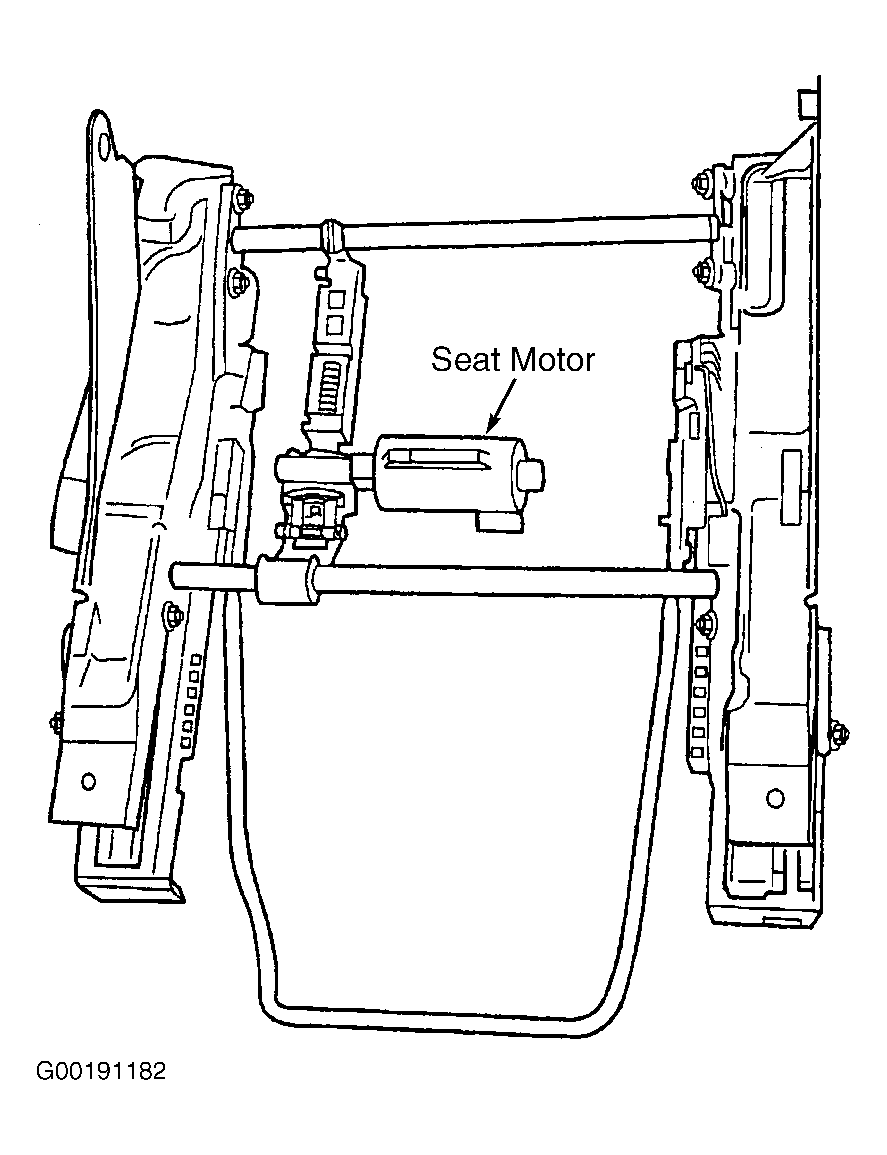

Fig 3: Locating Power Seat Motor

Courtesy of DAIMLERCHRYSLER CORP.

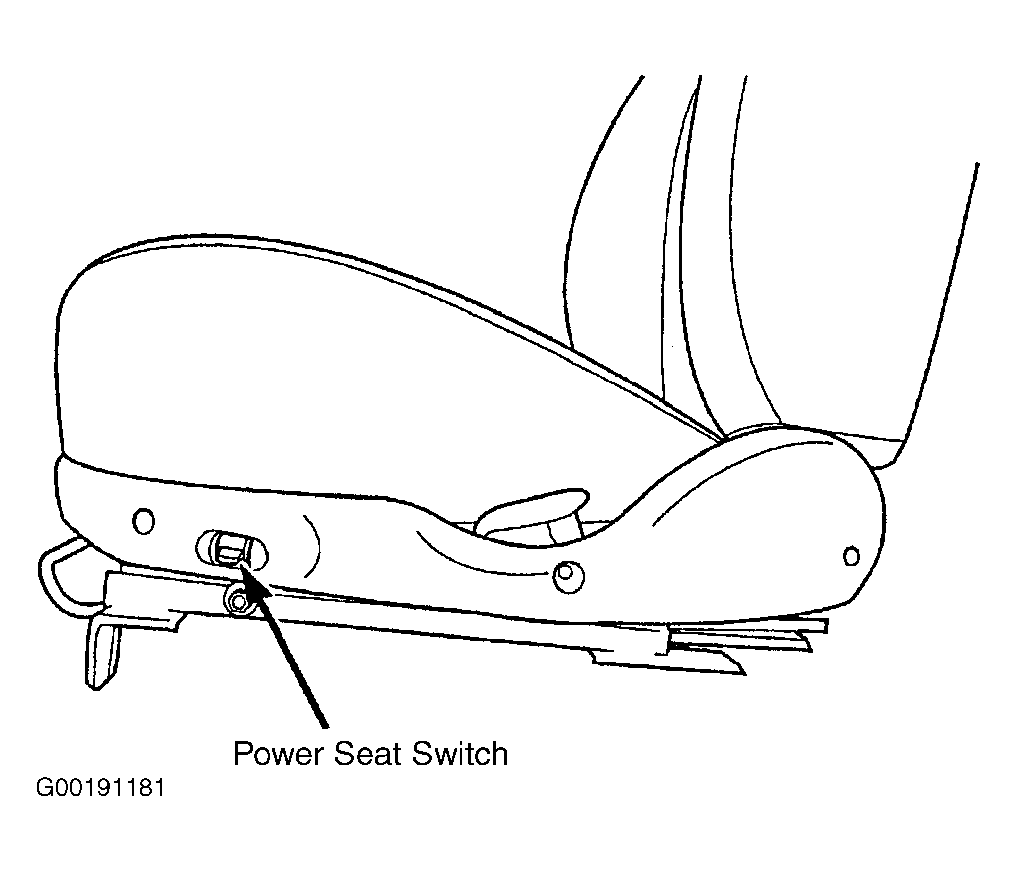

Fig 4: Locating Power Seat Switch

Courtesy of DAIMLERCHRYSLER CORP.
