A/C Heater Control Switch Connector End View
A/C Heater Control Switch Connector End View

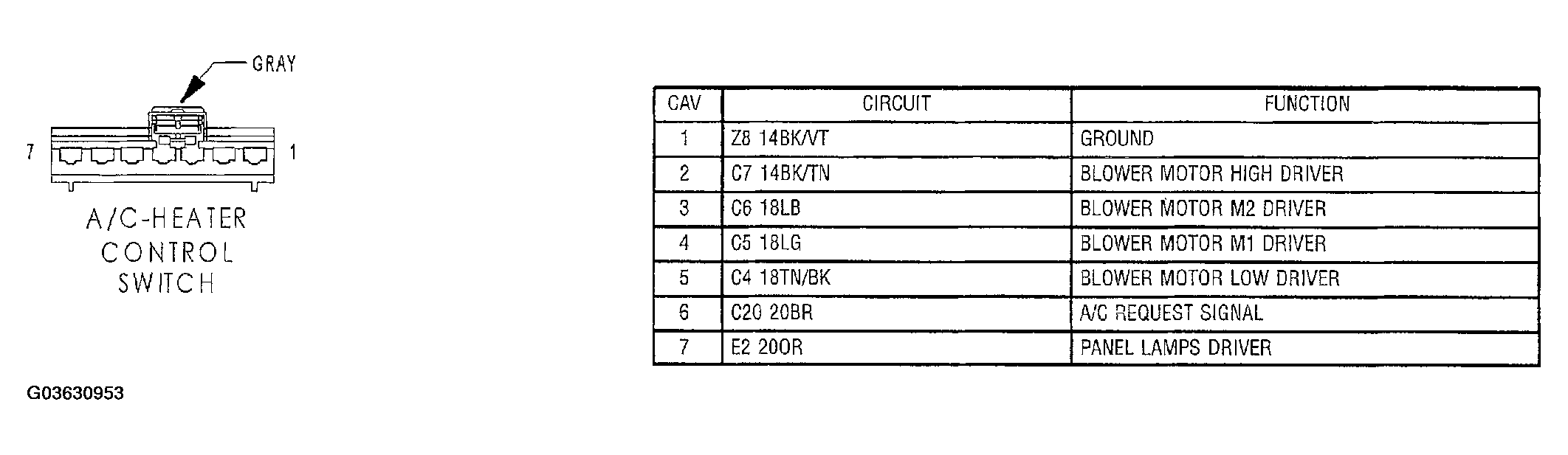

Fig 1: A/C Heater Control Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
