Airbag Control Module (Base) Connector End View

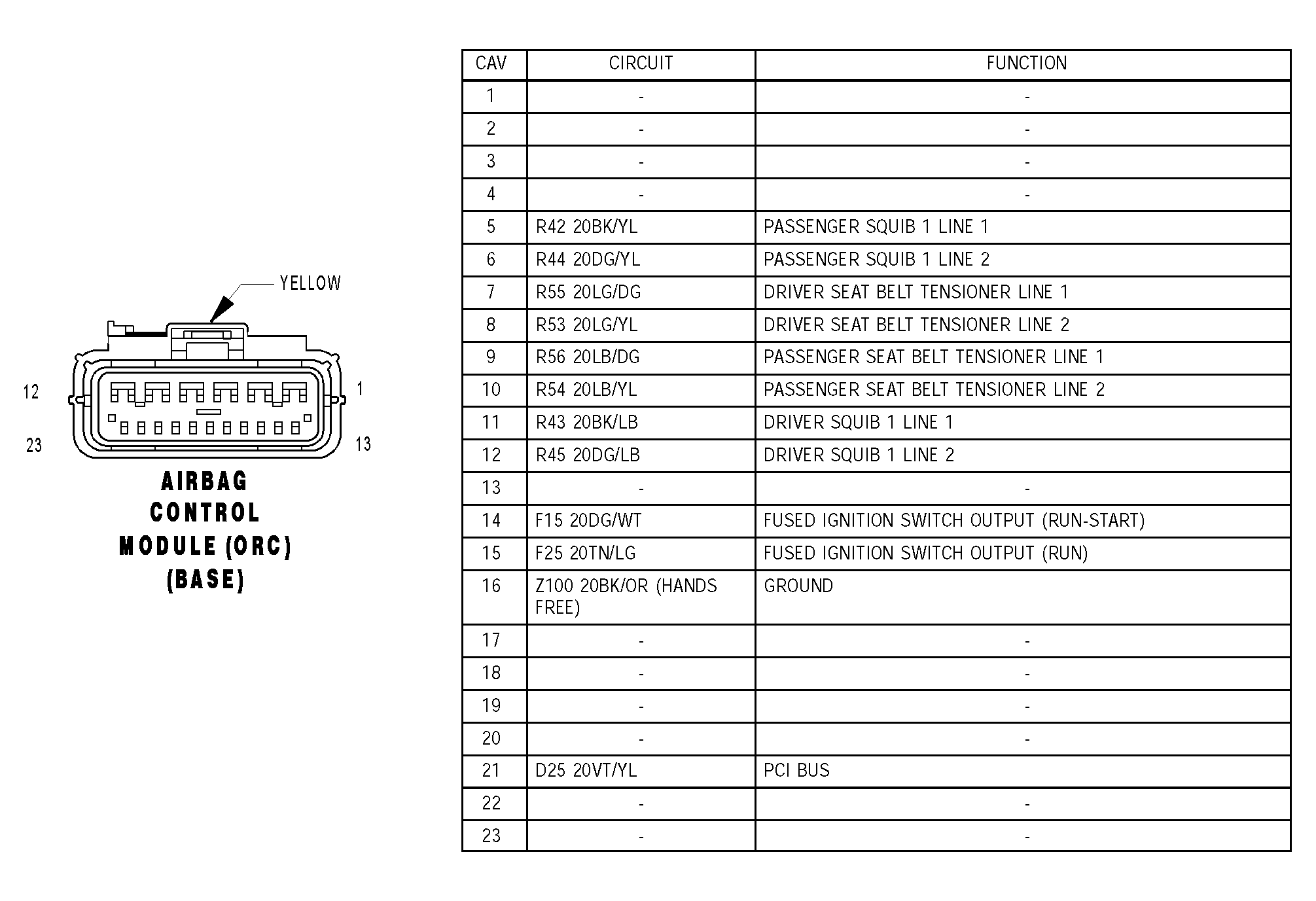

Fig 1: Airbag Control Module (Base) Connector End View
G04549019Courtesy of CHRYSLER GROUP, LLC
