Home › Chrysler › 2002 › PT Cruiser Base, Automatic › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Ambient Temperature Sensor (Except 2.4L Base) Connector End View

Ambient Temperature Sensor (Except 2.4L Base) Connector End View

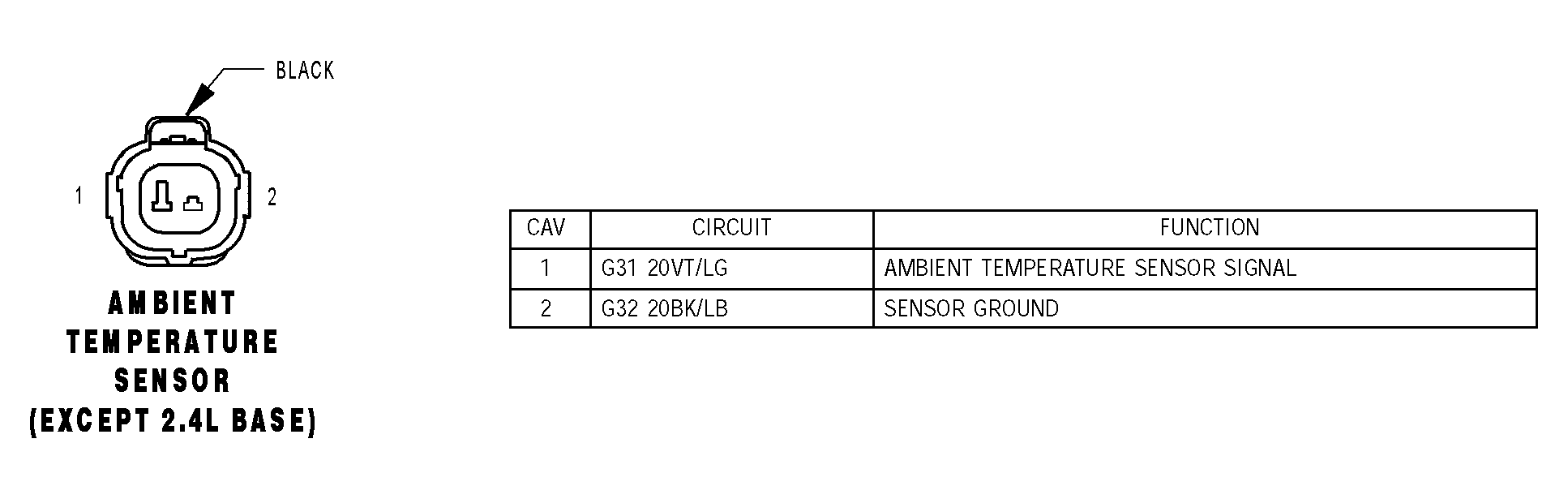

Fig 1: Ambient Temperature Sensor (Except 2.4L Base) Connector End View
G04549022Courtesy of CHRYSLER GROUP, LLC
