Compass/Temperature Mirror Module (PT27) Connector End View
Compass/Temperature Mirror Module (PT27) Connector End View

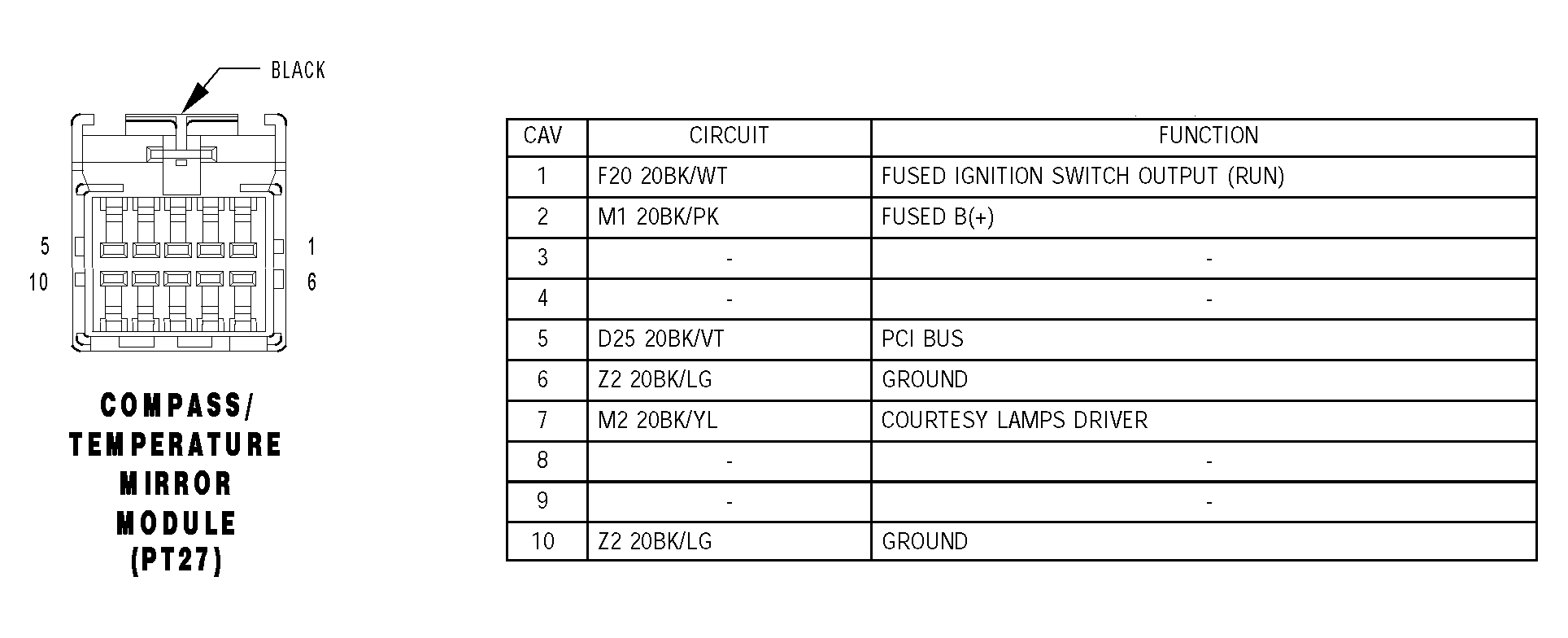

Fig 1: Compass/Temperature Mirror Module (PT27) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
