OEM Connector End Views
›
Controller Antilock Brake Connector End View
Controller Antilock Brake Connector End View

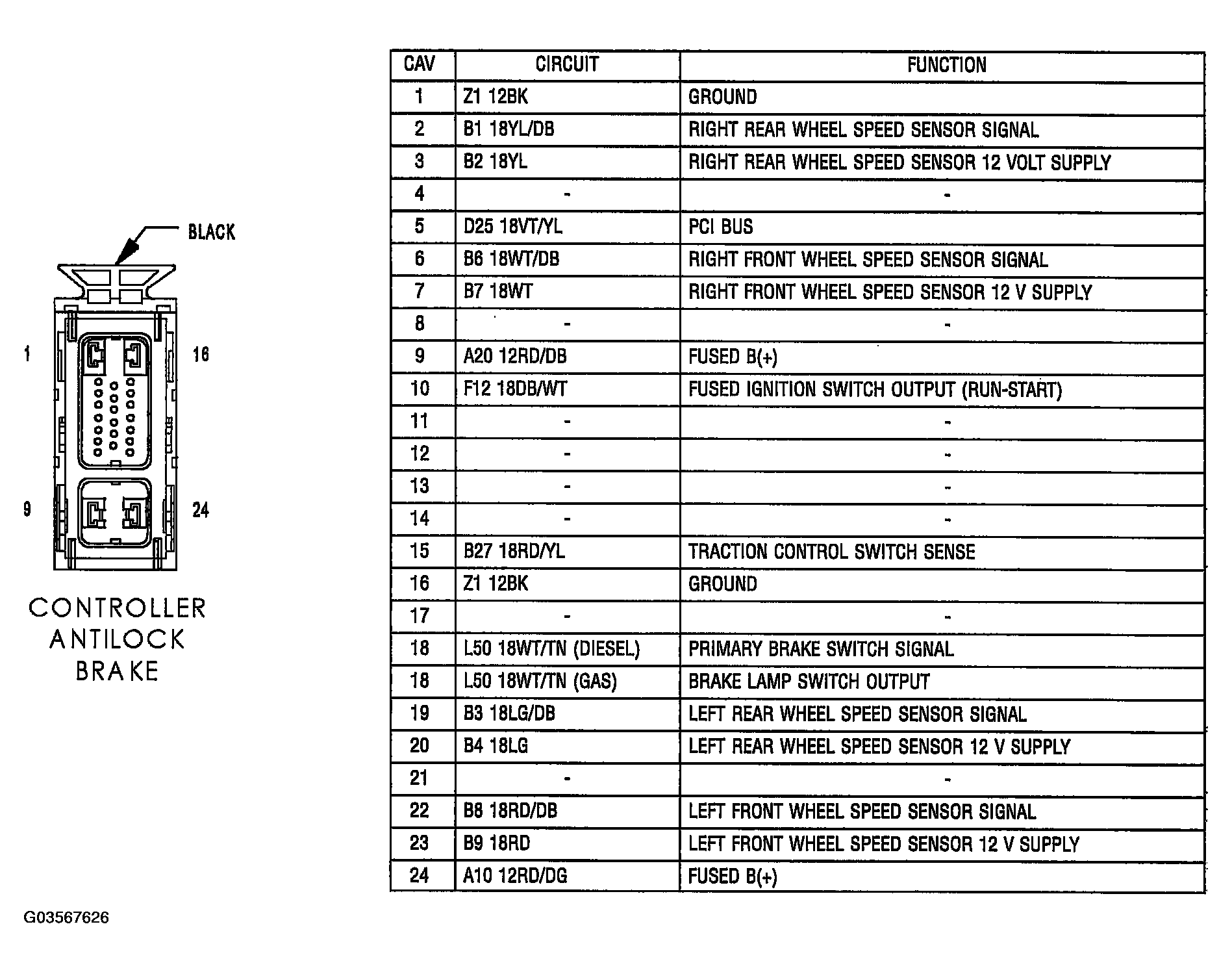

Fig 1: Controller Antilock Brake Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
