Driver Heated Seat Switch Connector End View
Driver Heated Seat Switch Connector End View

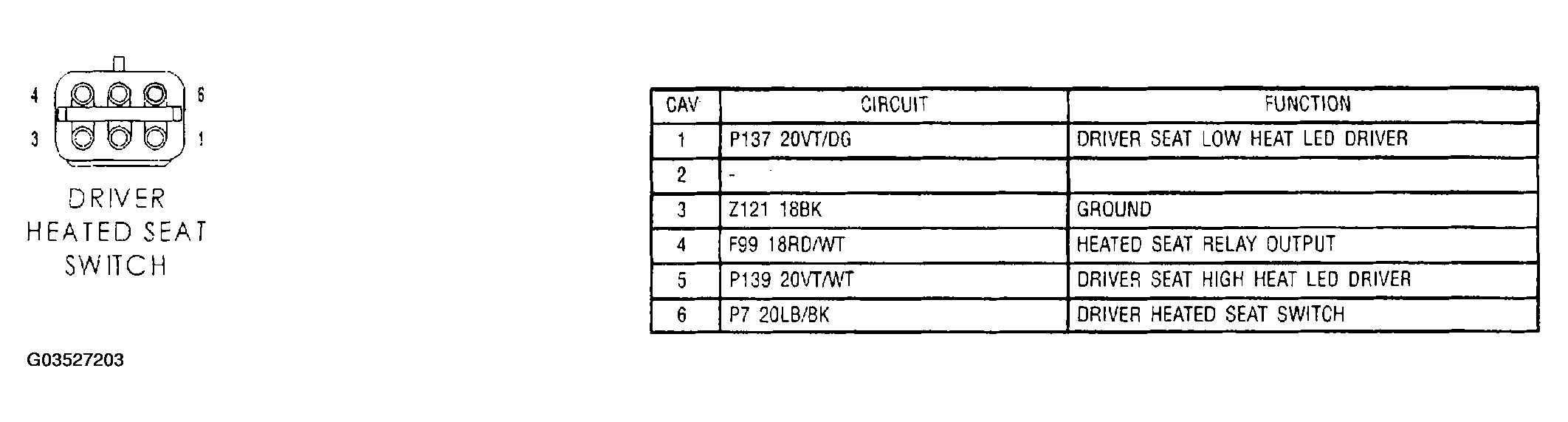

Fig 1: Driver Heated Seat Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
