Electronic Throttle Control Module (1.6L) Connector End View
Electronic Throttle Control Module (1.6L) Connector End View

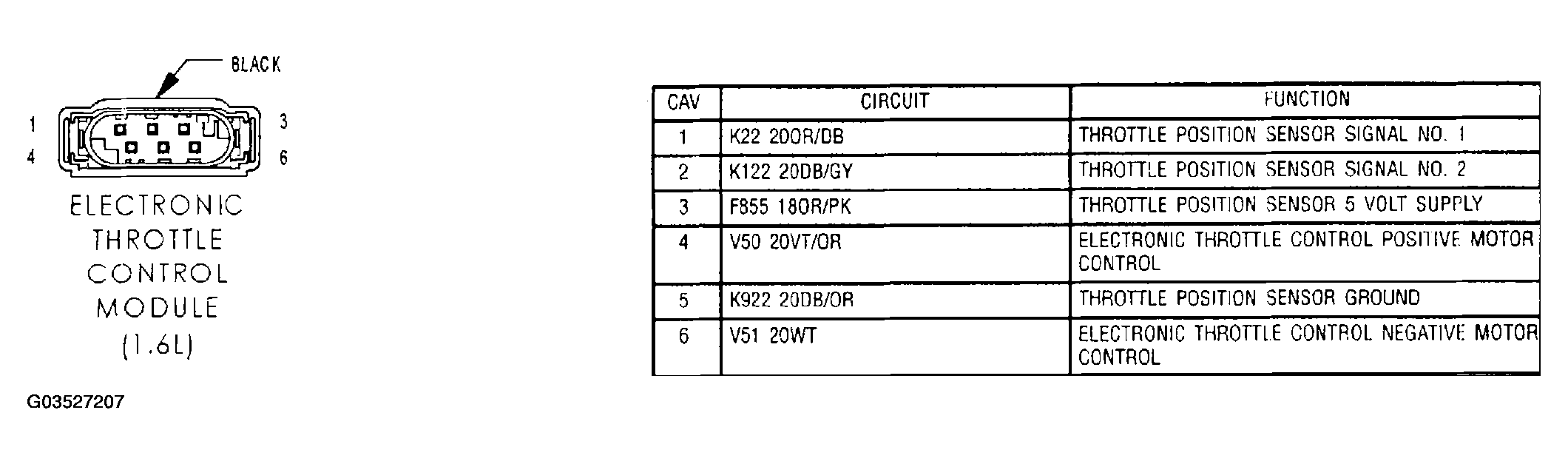

Fig 1: Electronic Throttle Control Module (1.6L) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
