Front Power Window Switch Connector End View

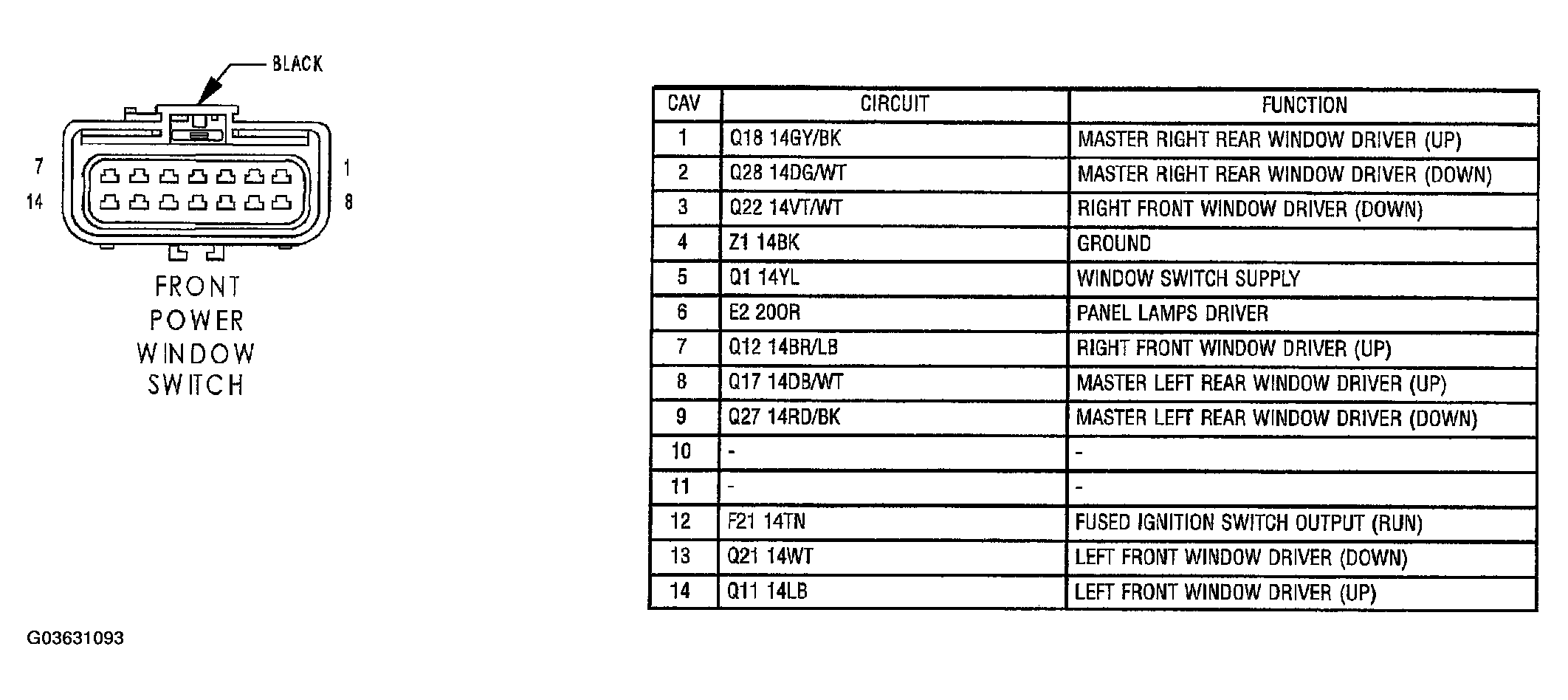

Fig 1: Front Power Window Switch Connector End View
G03631093Courtesy of CHRYSLER GROUP, LLC
