Front Wiper/Washer Switch Connector End View

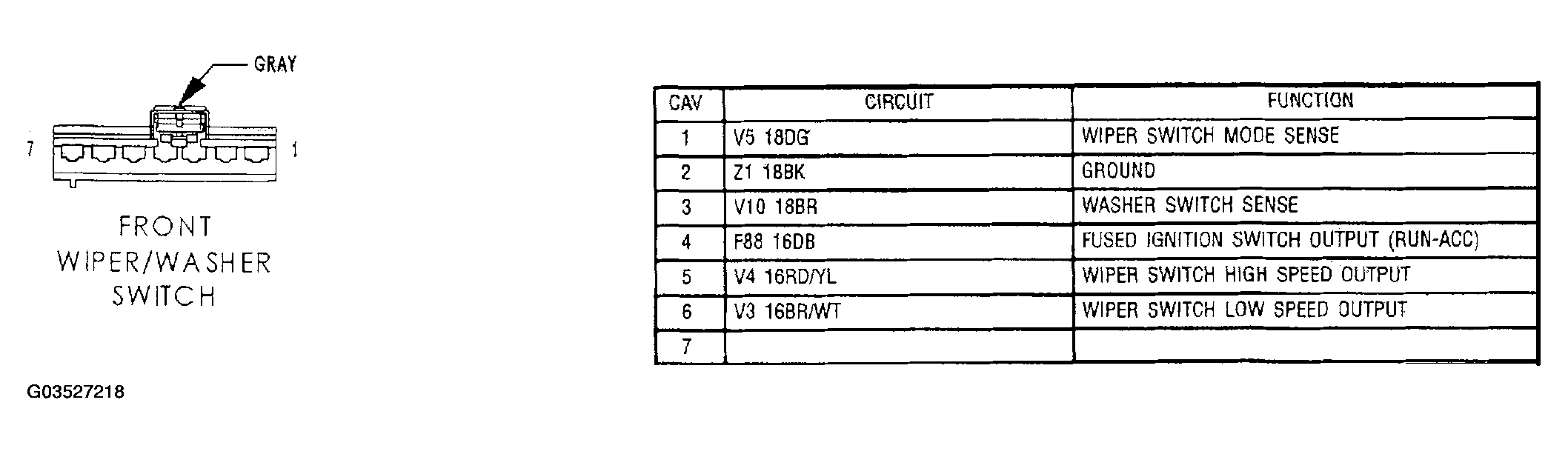

Fig 1: Front Wiper/Washer Switch Connector End View
G03527218Courtesy of CHRYSLER GROUP, LLC
