Hands Free Module Connector End View (C3)

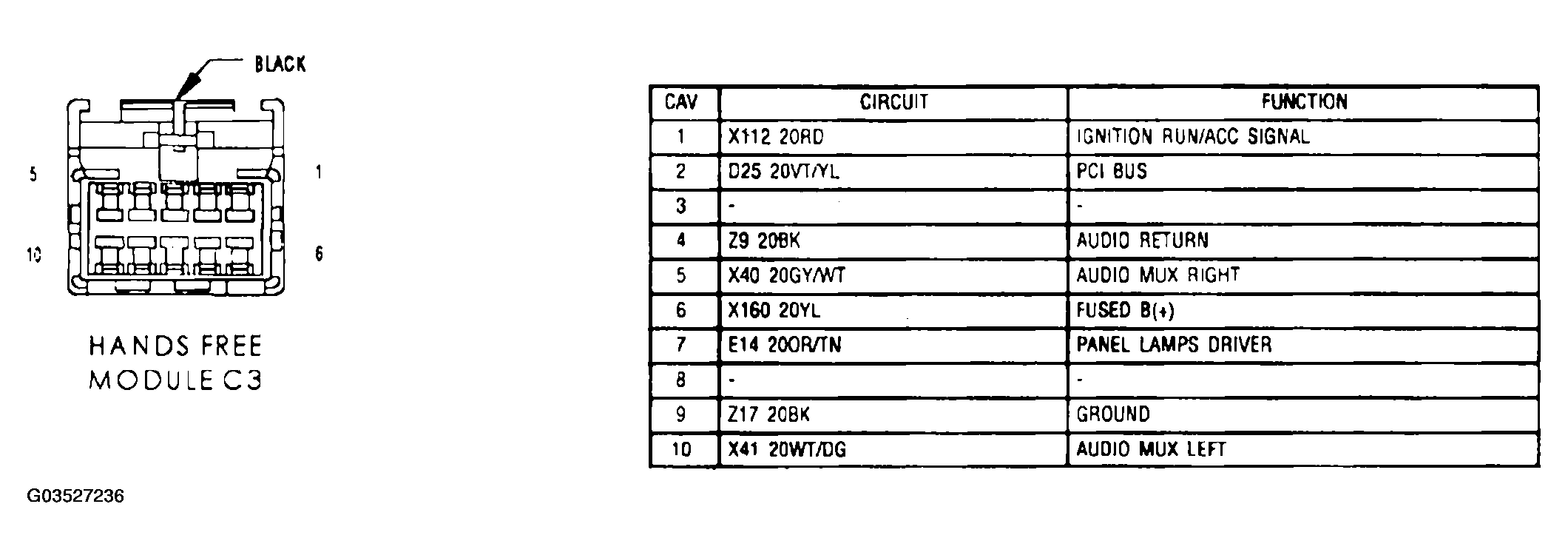

Fig 1: Hands Free Module Connector End View (C3)
G03527236Courtesy of CHRYSLER GROUP, LLC
