Heated Seat Module Connector End View
Heated Seat Module Connector End View

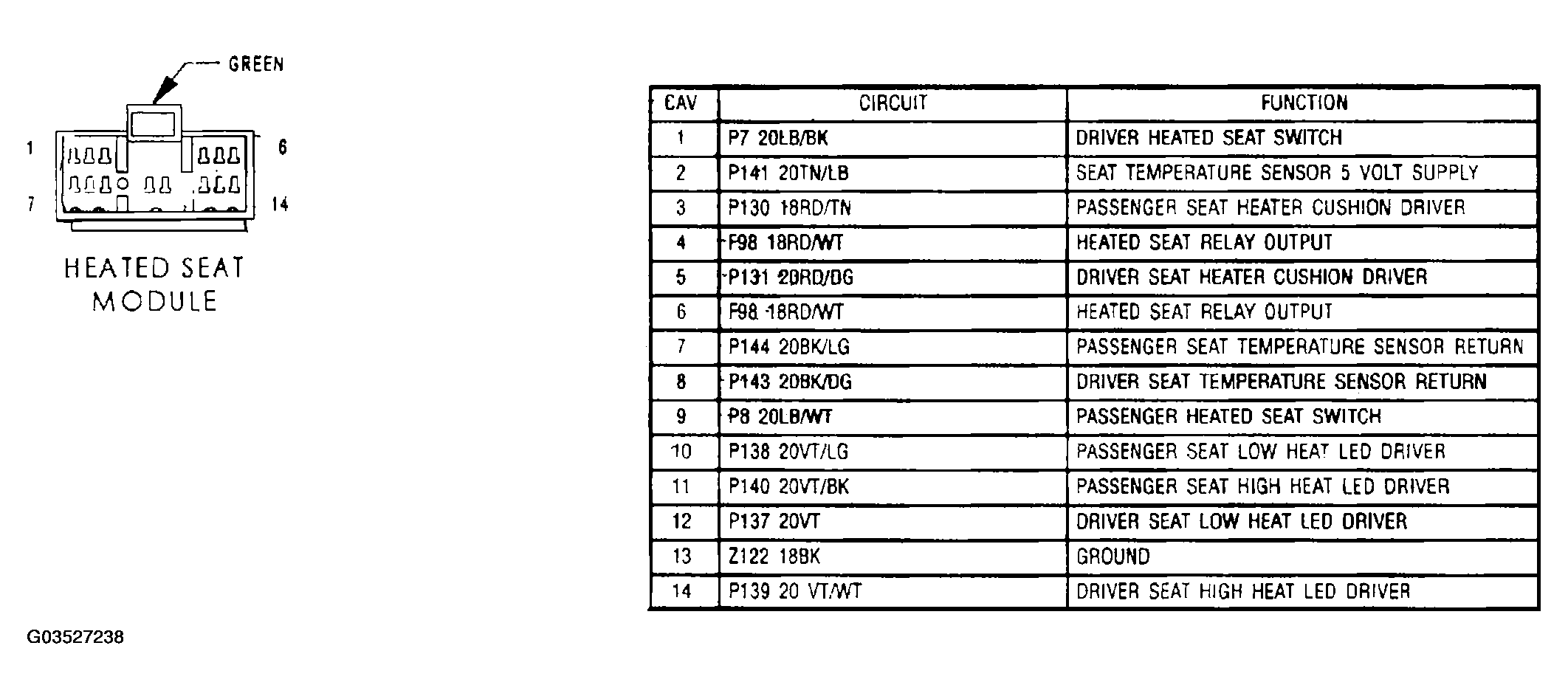

Fig 1: Heated Seat Module Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
