Input Speed Sensor Connector End View
Input Speed Sensor Connector End View

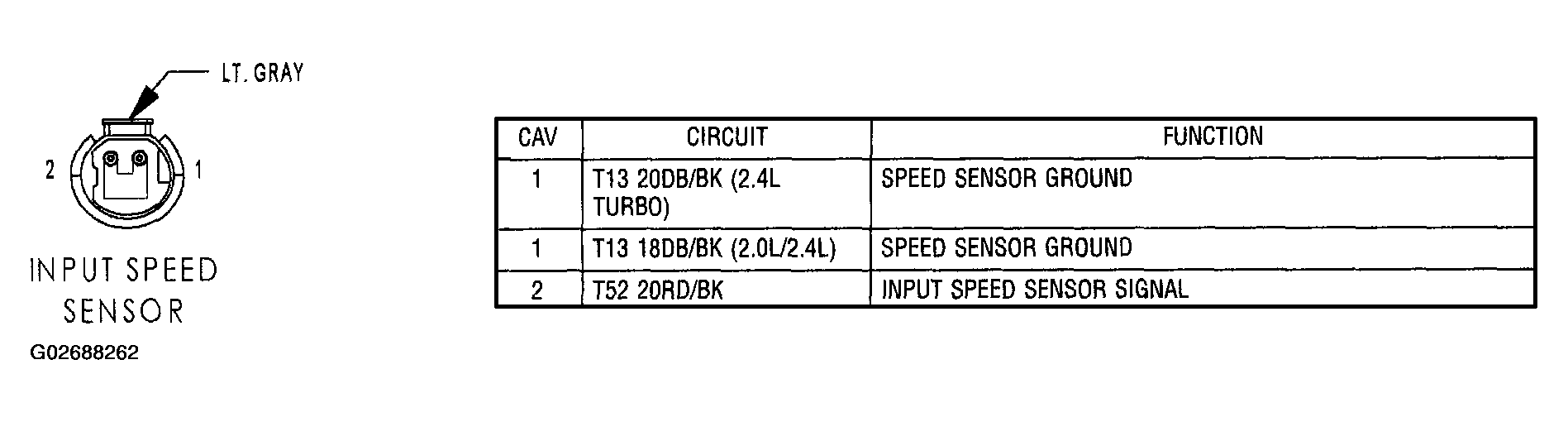

Fig 1: Input Speed Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
