Instrument Cluster C2 Connector End View
Instrument Cluster C2 Connector End View

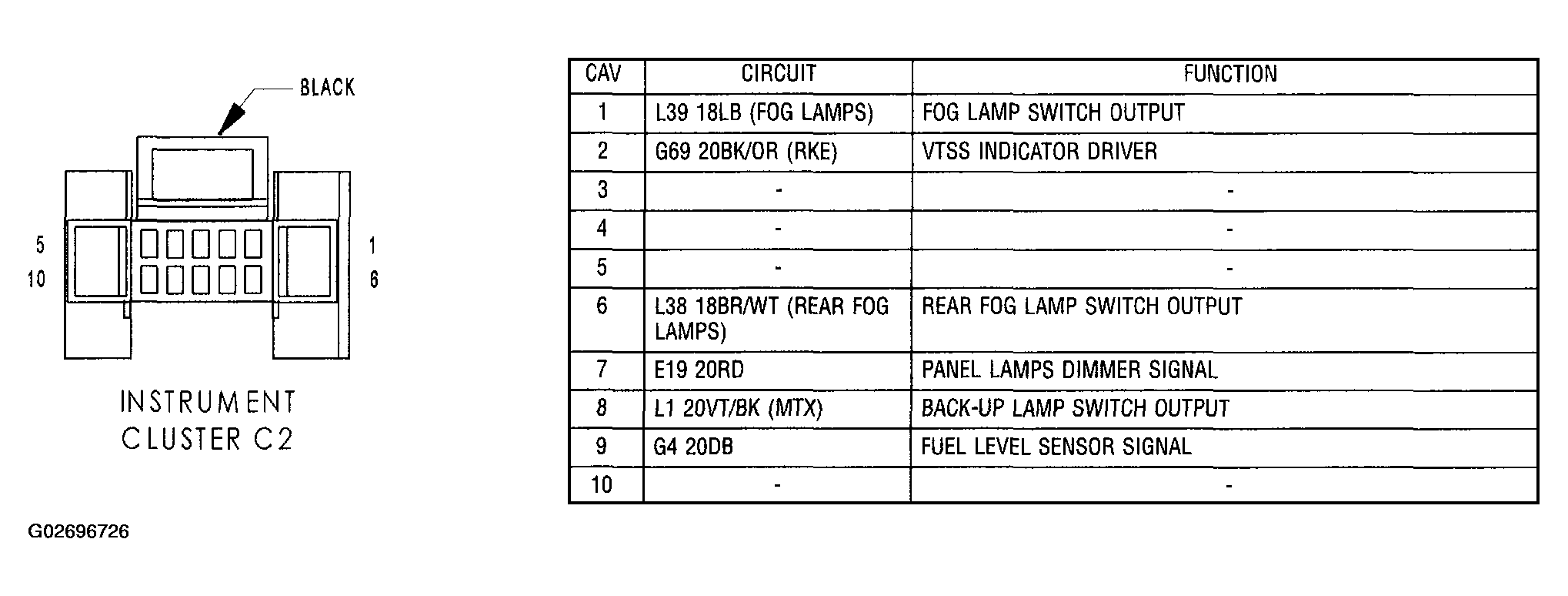

Fig 1: Instrument Cluster C2 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
