Liftgate Power Lock Motor Connector End View
Liftgate Power Lock Motor Connector End View

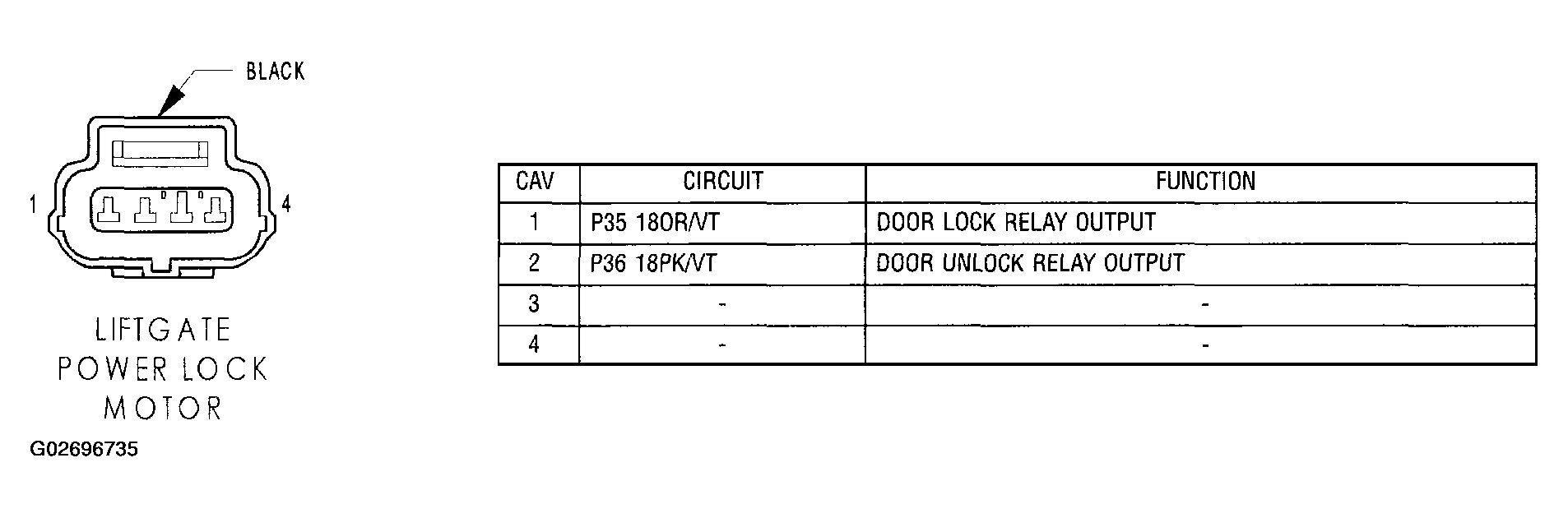

Fig 1: Liftgate Power Lock Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
