ORC Airbag Control Module (Base) Connector End View

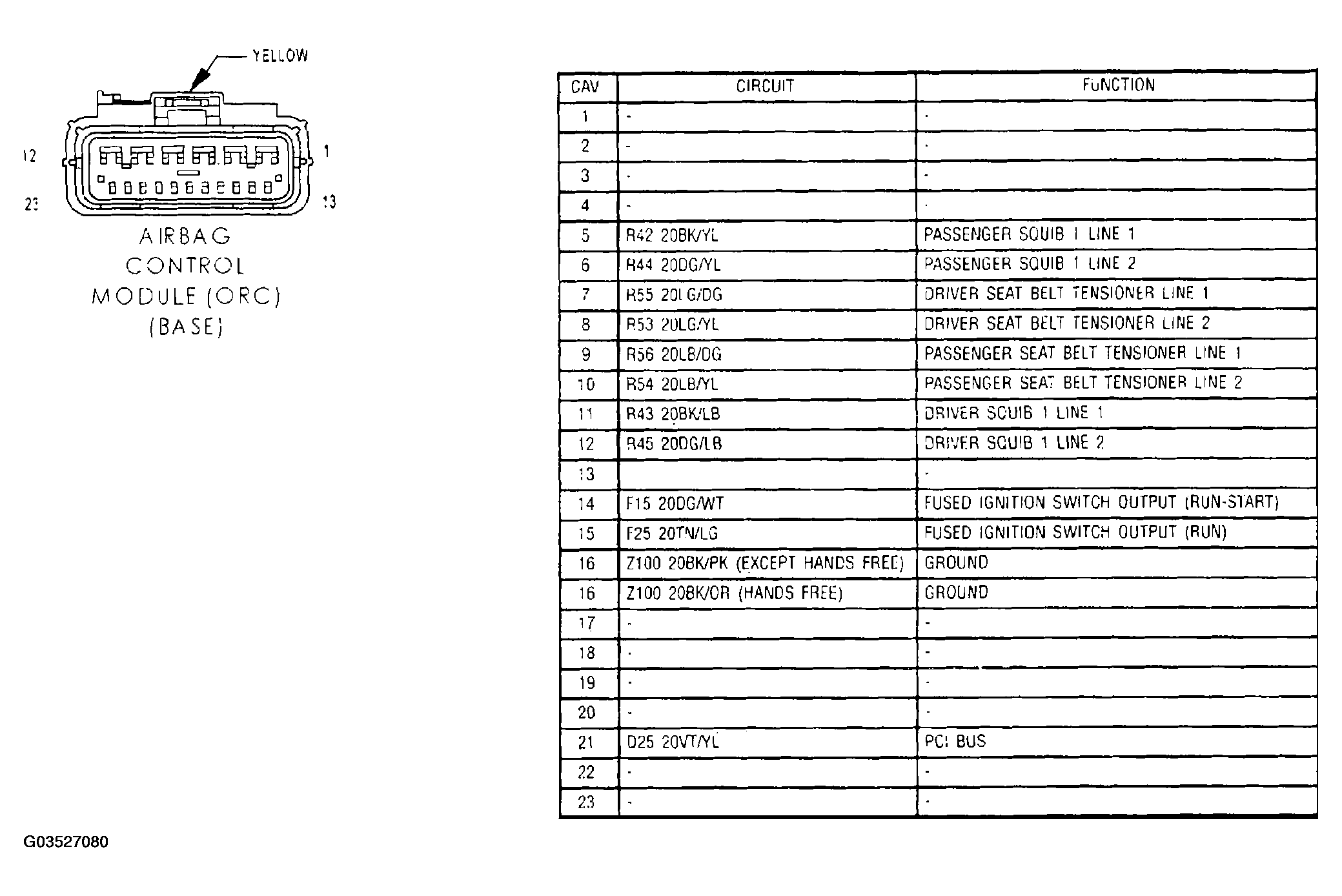

Fig 1: ORC Airbag Control Module (Base) Connector End View
G03527080Courtesy of CHRYSLER GROUP, LLC
