Powertrain Control Module (Next Generation Controller) Connector End View (C3)

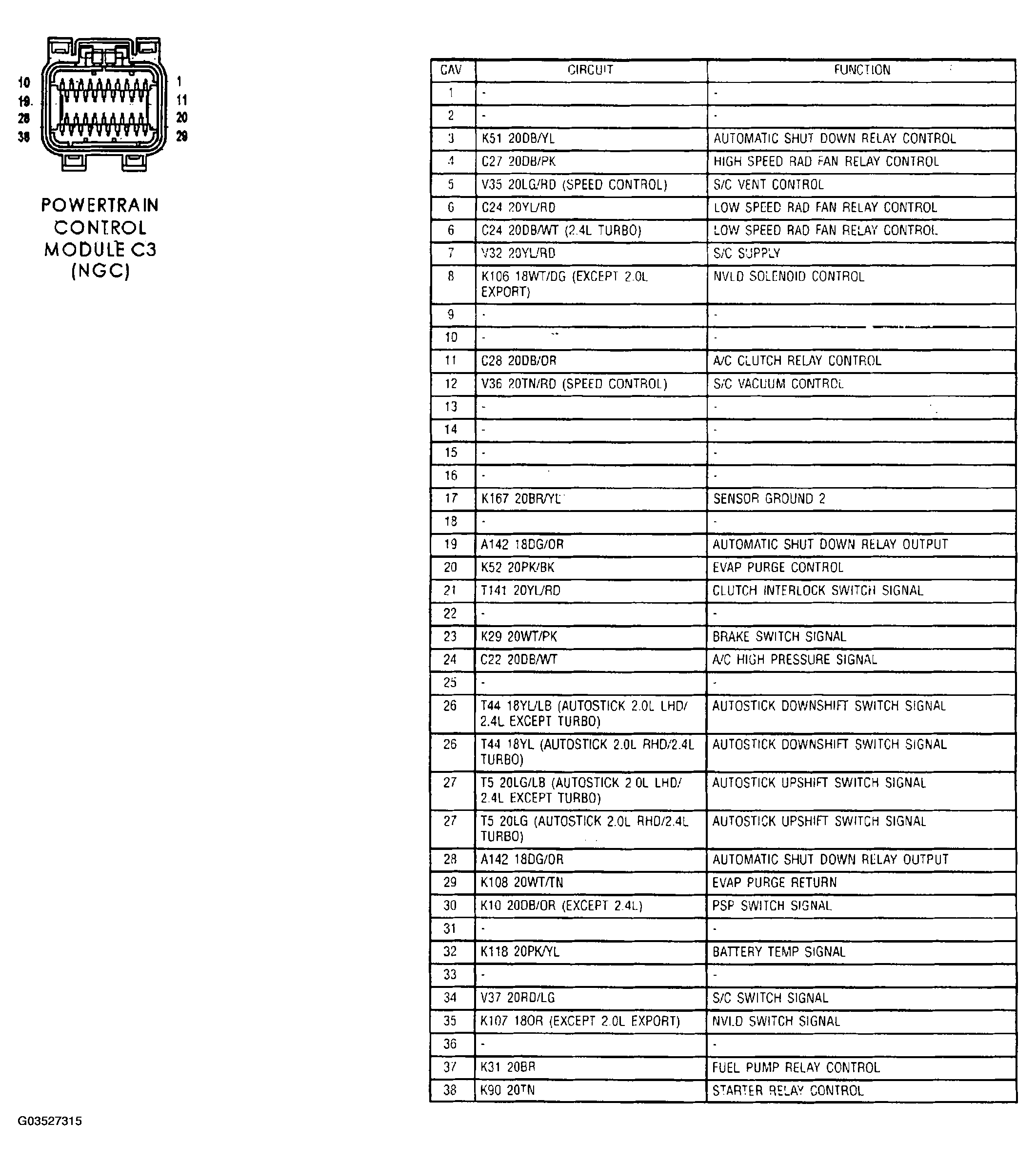

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C3)
G03527315Courtesy of CHRYSLER GROUP, LLC
