Powertrain Control Module (Next Generation Controller) Connector End View (C4)

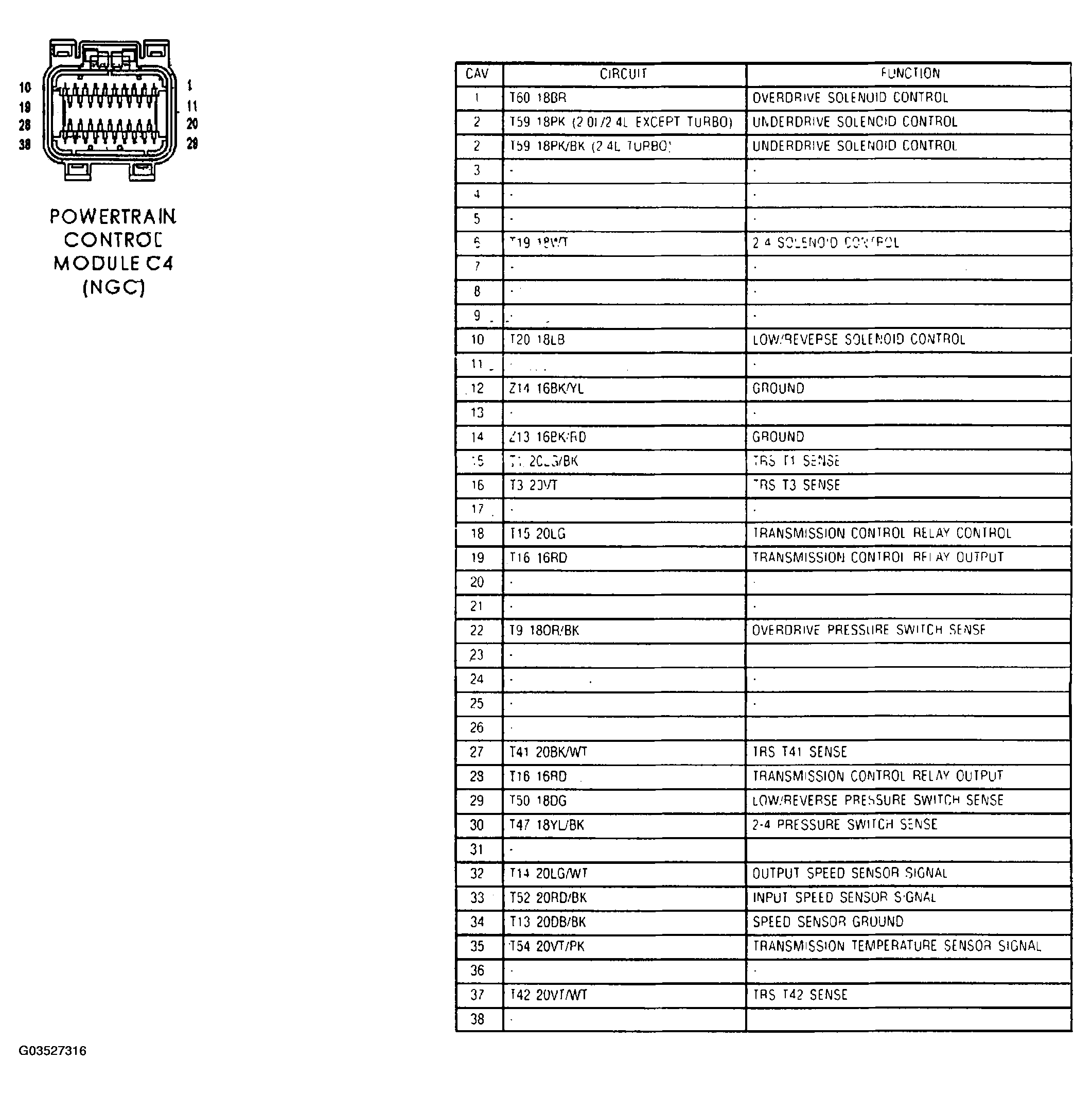

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C4)
G03527316Courtesy of CHRYSLER GROUP, LLC
