Powertrain Control Module C3 (NGC) Connector End View
Powertrain Control Module C3 (NGC) Connector End View

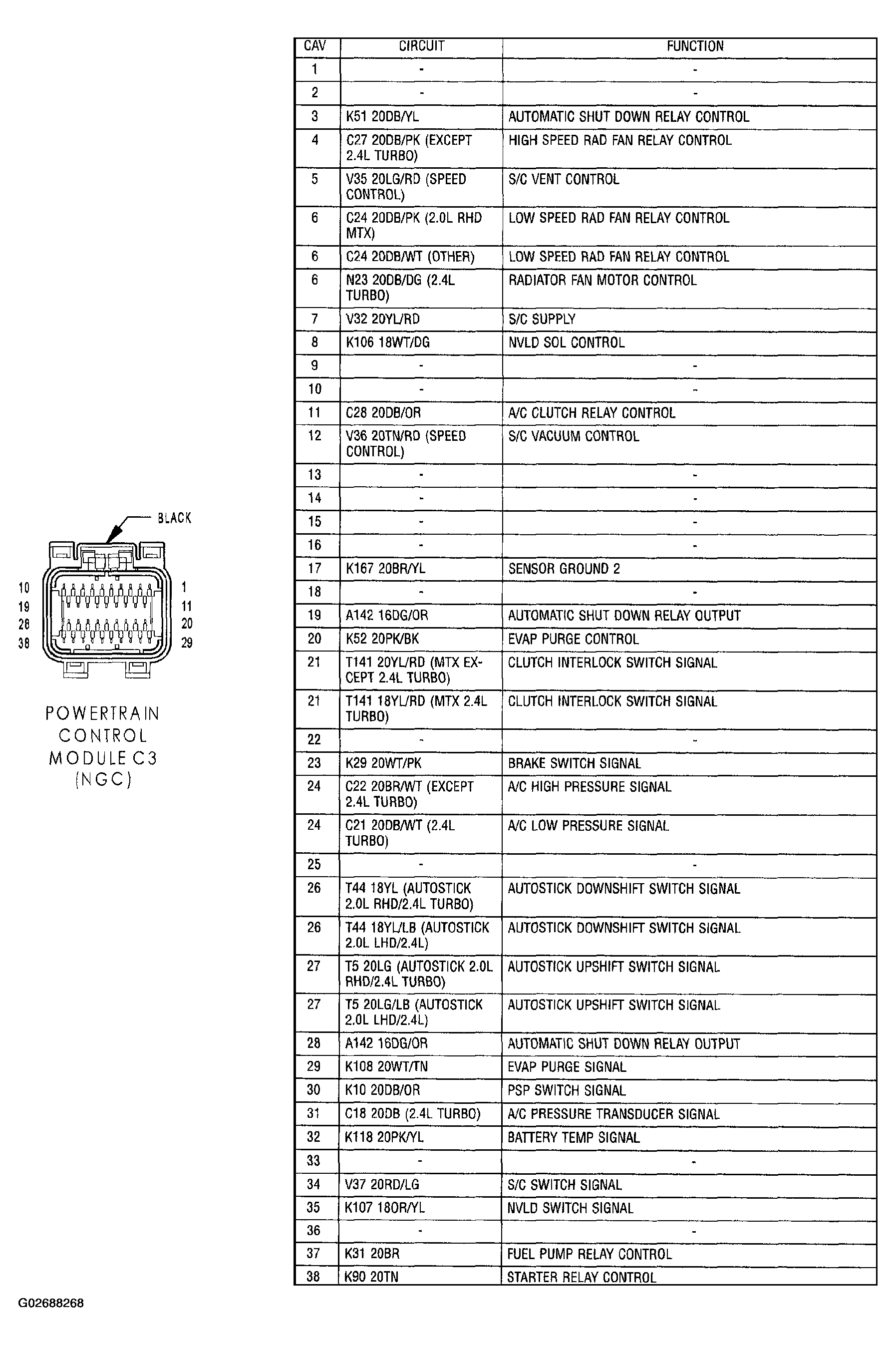

Fig 1: Powertrain Control Module C3 (NGC) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
