Rear View Mirror C1 Connector End View
Rear View Mirror C1 Connector End View

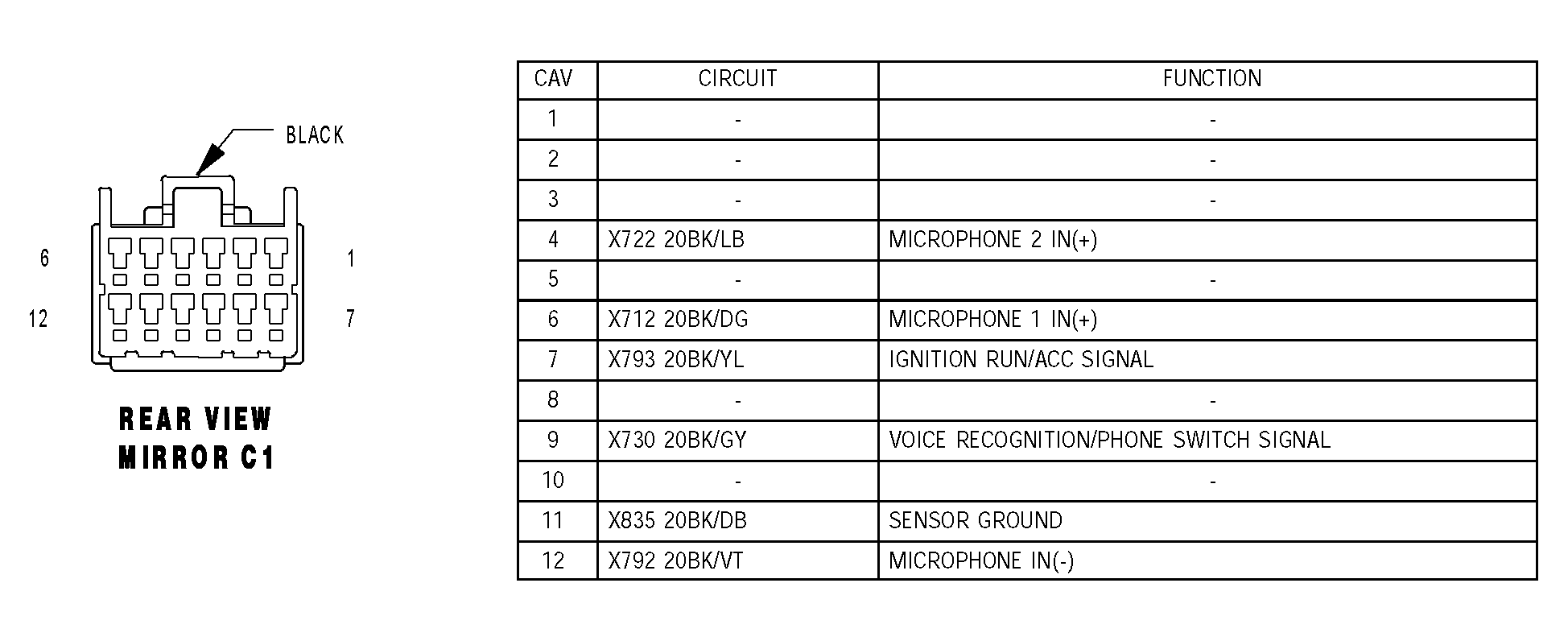

Fig 1: Rear View Mirror C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
