Rear Window Defogger Switch Connector End View

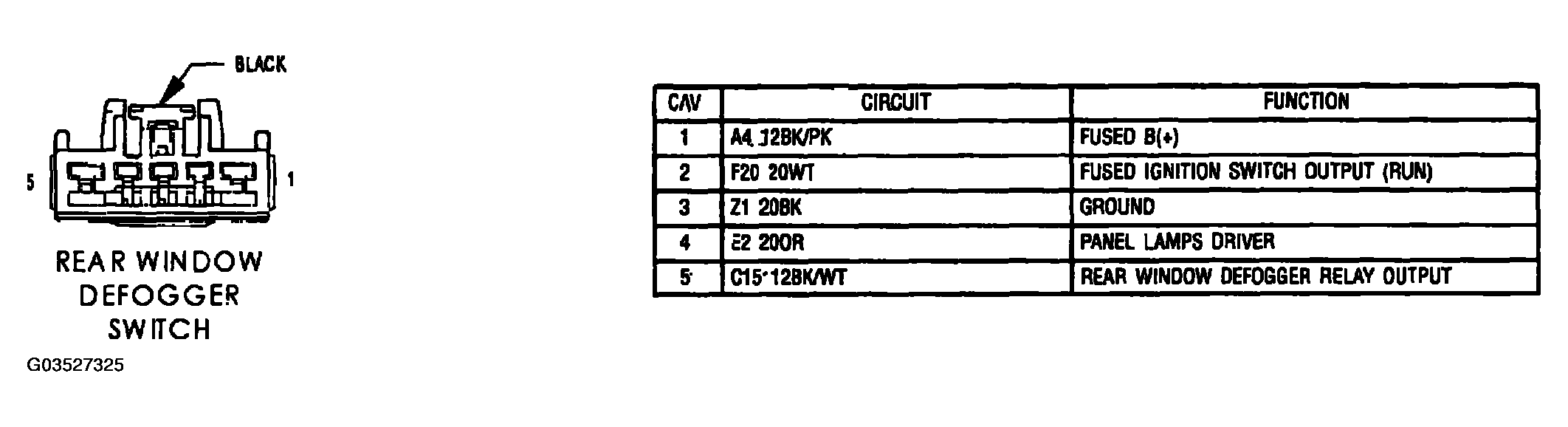

Fig 1: Rear Window Defogger Switch Connector End View
G03527325Courtesy of CHRYSLER GROUP, LLC
