Satellite Radio Receiver Connector End View
Satellite Radio Receiver Connector End View

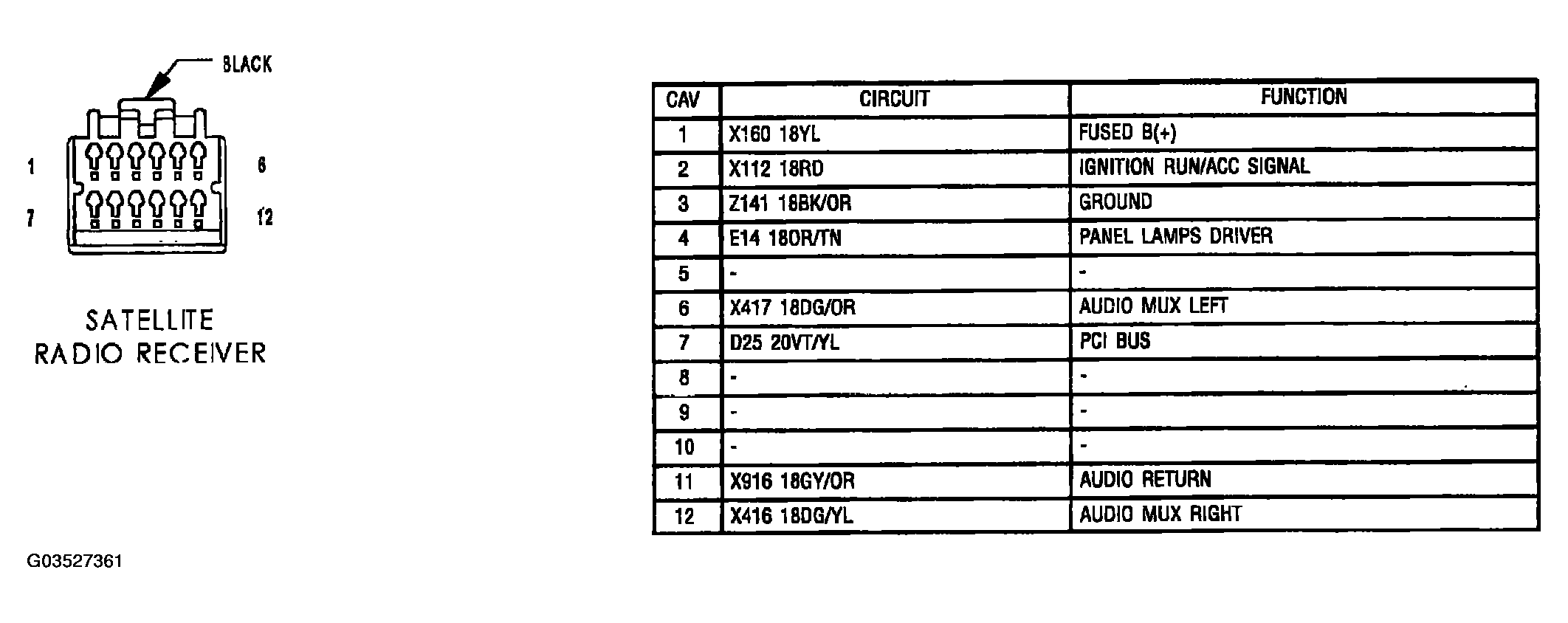

Fig 1: Satellite Radio Receiver Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
