TP Sensor Harness Connector End View
TP Sensor Harness Connector End View

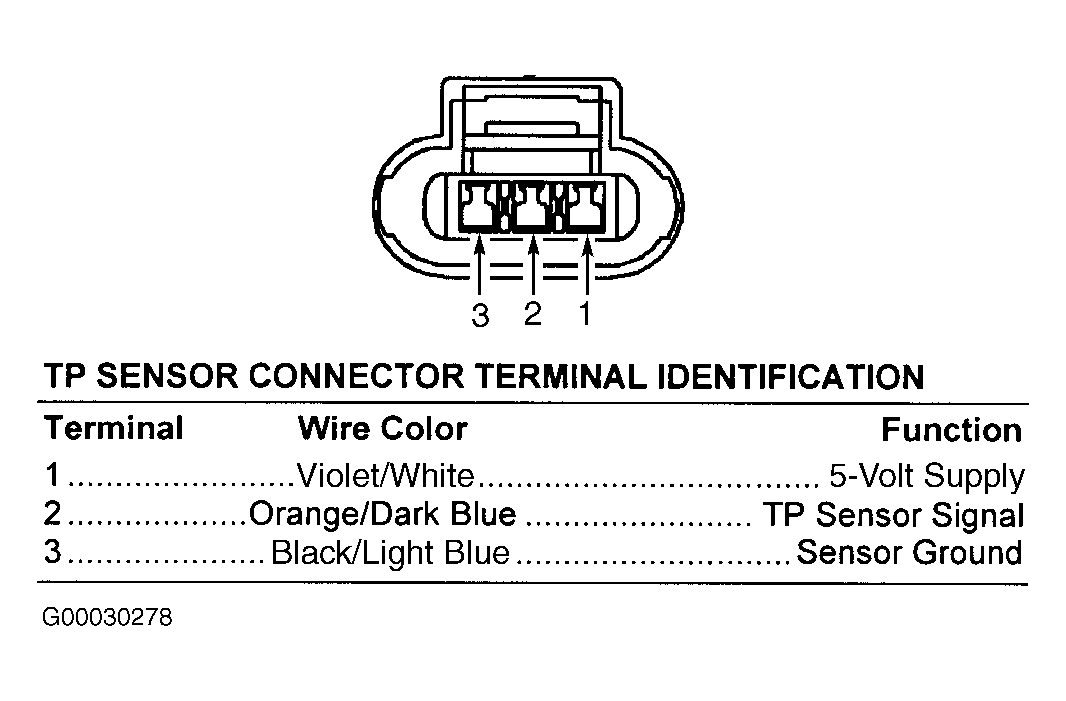

Fig 1: TP Sensor Harness Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
