Traction Control Switch Connector End View
Traction Control Switch Connector End View

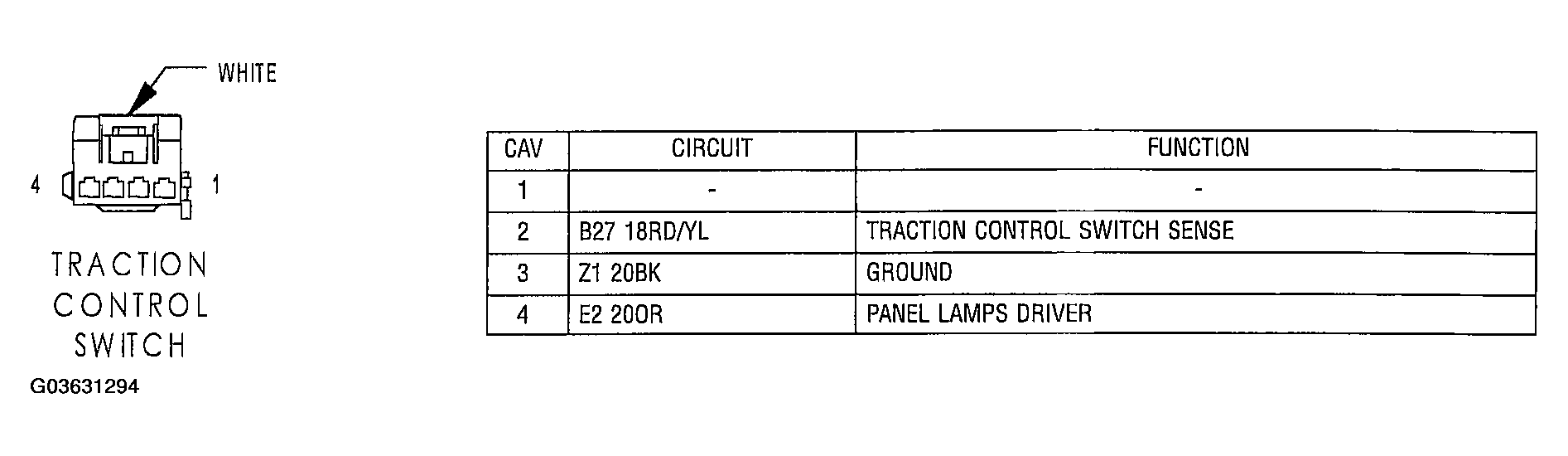

Fig 1: Traction Control Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
