Left Mount: Installation

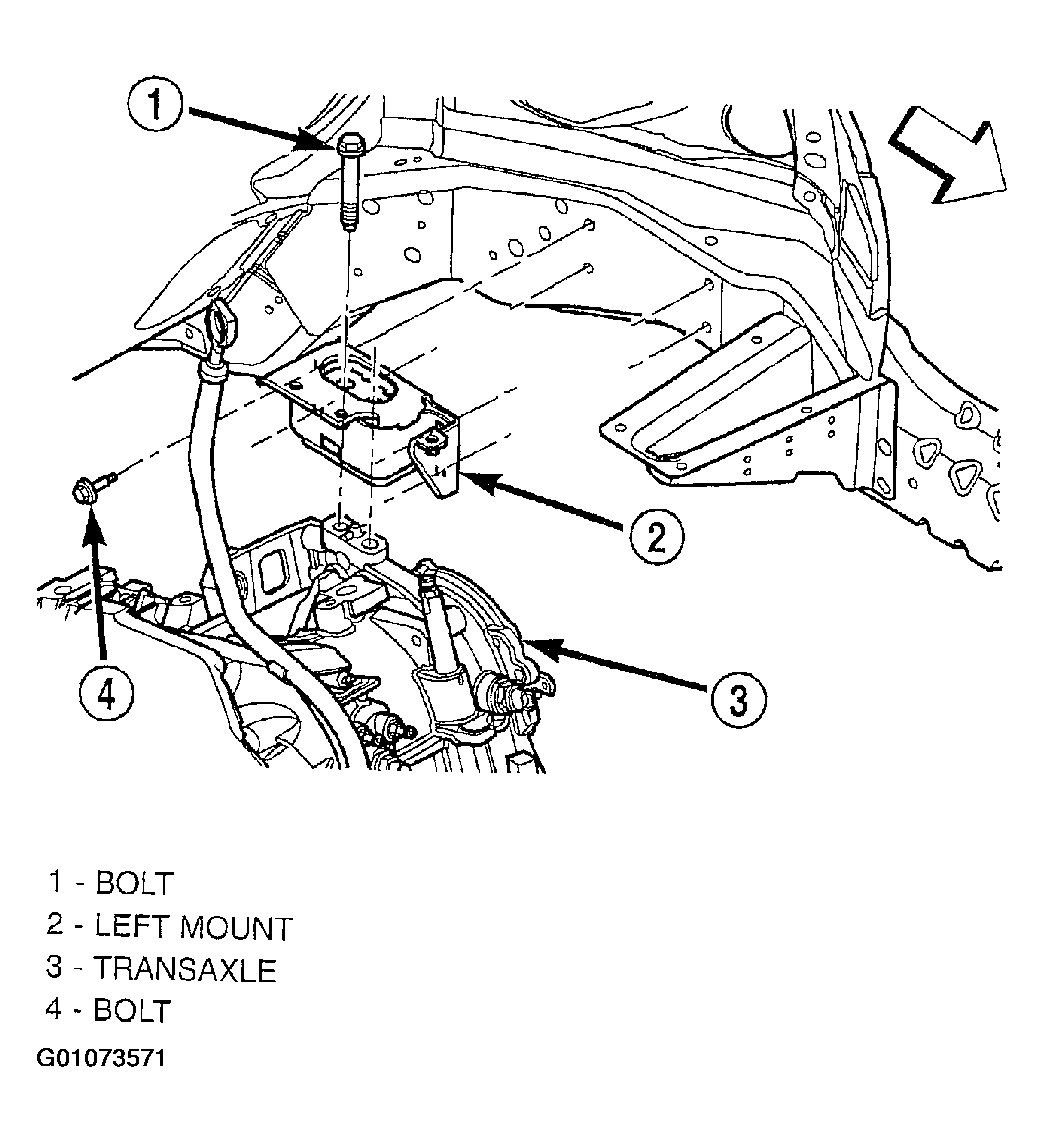

  1. Install engine mount bracket to body frame rail and tighten fasteners to 28 N.m (250 INCH lbs) (Figure).
  2. Position engine/transaxle for installation of mount to transaxle bolts. Install and tighten bolts to 68 N.m (50 ft. lbs) (Figure).
  3. Remove jack from under transaxle.

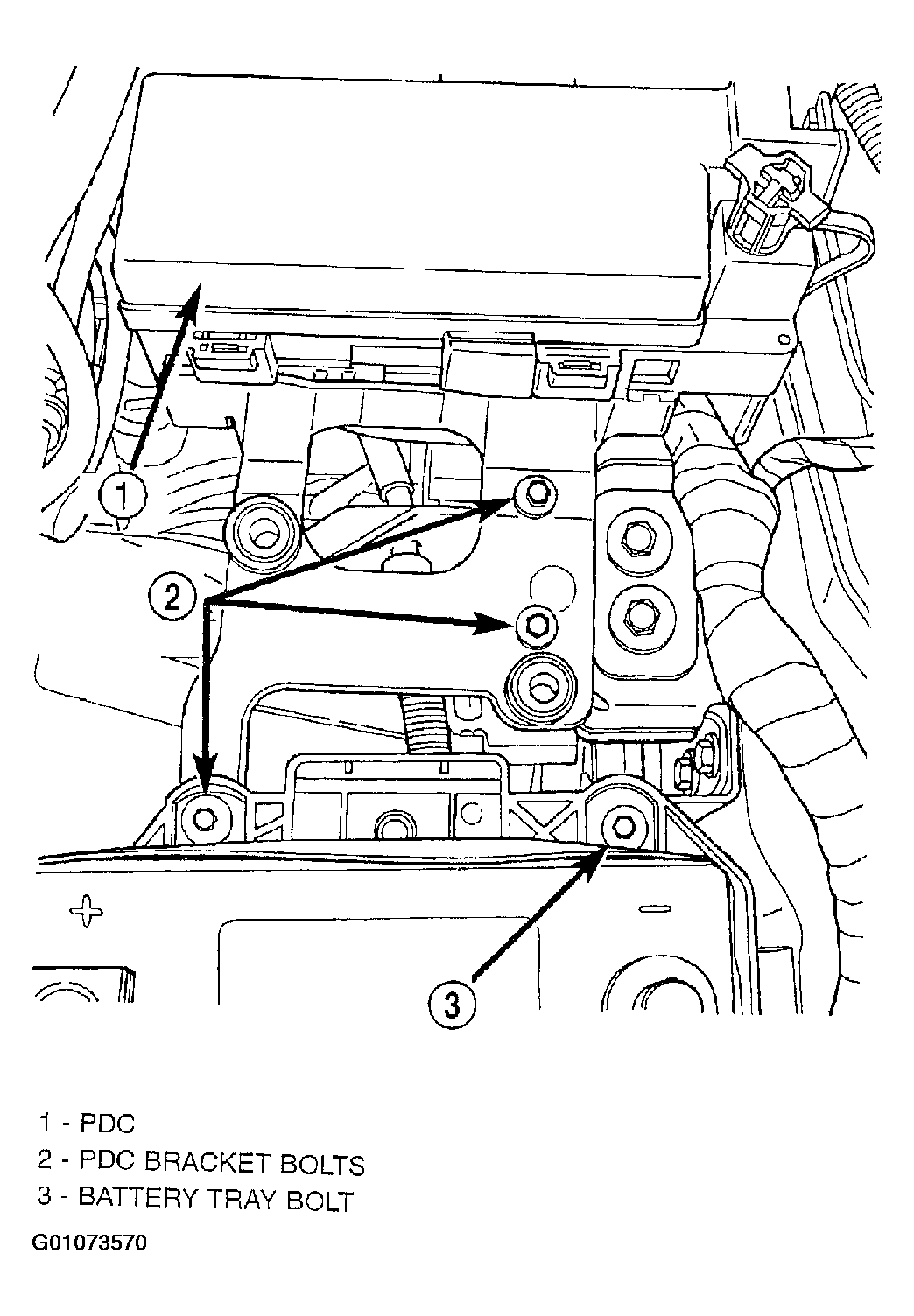

  4. Install bolts attaching the power distribution center (PDC) bracket to left mount and battery tray (Figure).
  5. Connect negative cable to battery.
  6. Install air cleaner assembly.
