Connector Identification
›
Brakelight Switch Harness Connector End View
Brakelight Switch Harness Connector End View

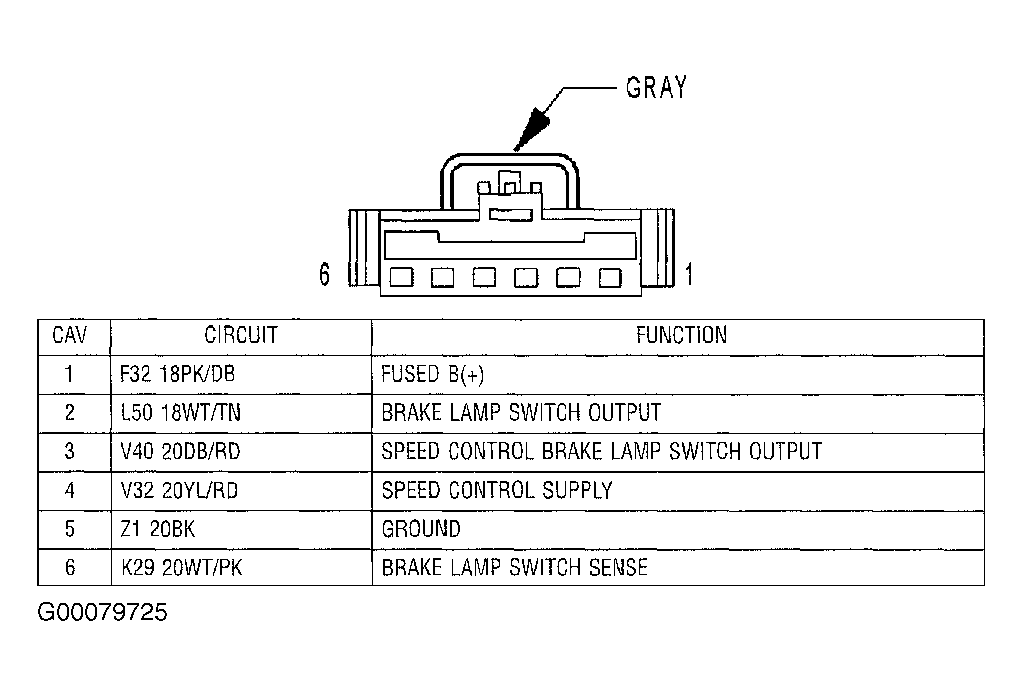

Fig 1: Identifying Brakelight Switch Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
