Data Link Connector End View

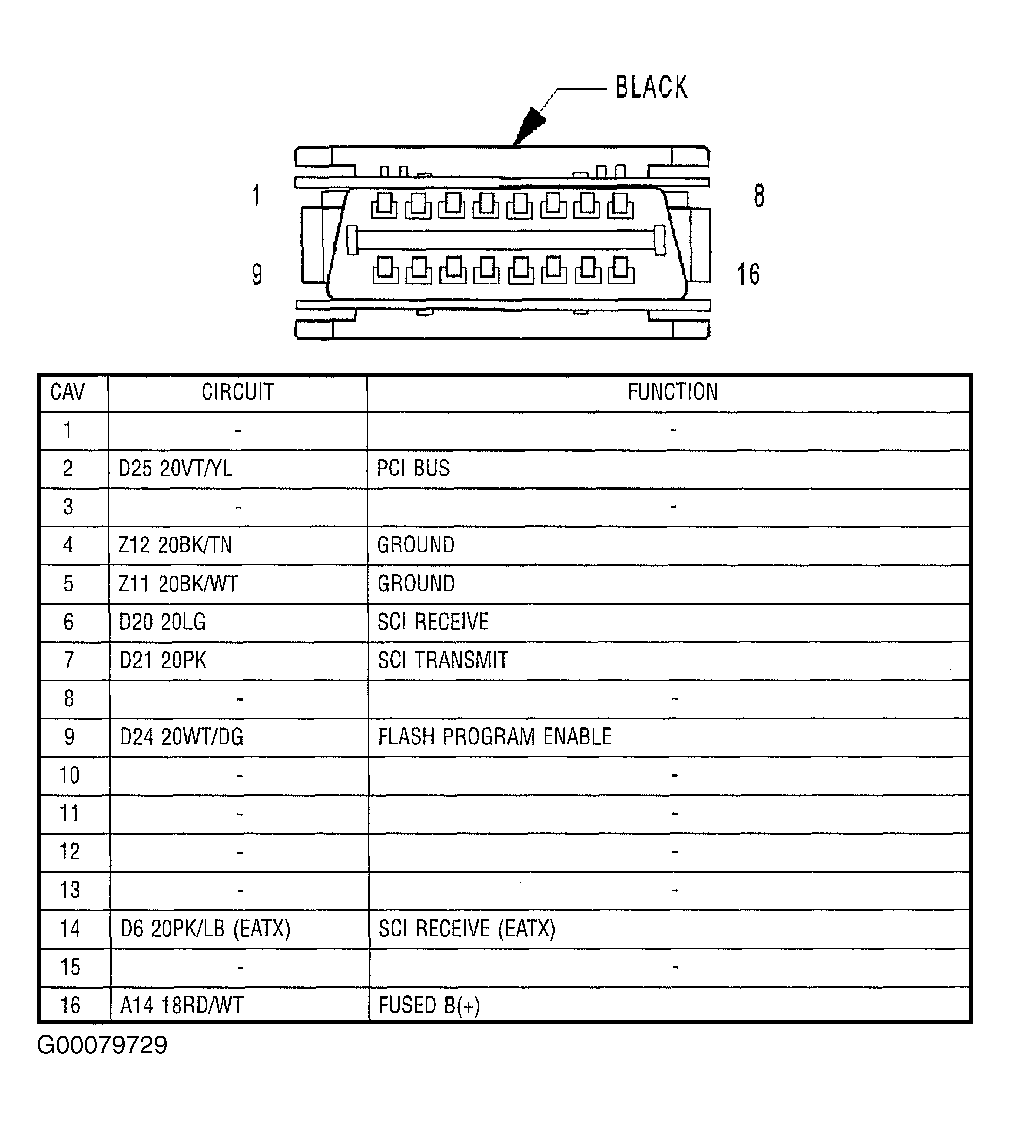

Fig 1: Identifying Data Link Connector Terminals

G00079729

Courtesy of DAIMLERCHRYSLER CORPORATION
