Connector Identification
›
Power Distribution Center Fuses & Fuse Circuits
Power Distribution Center Fuses & Fuse Circuits

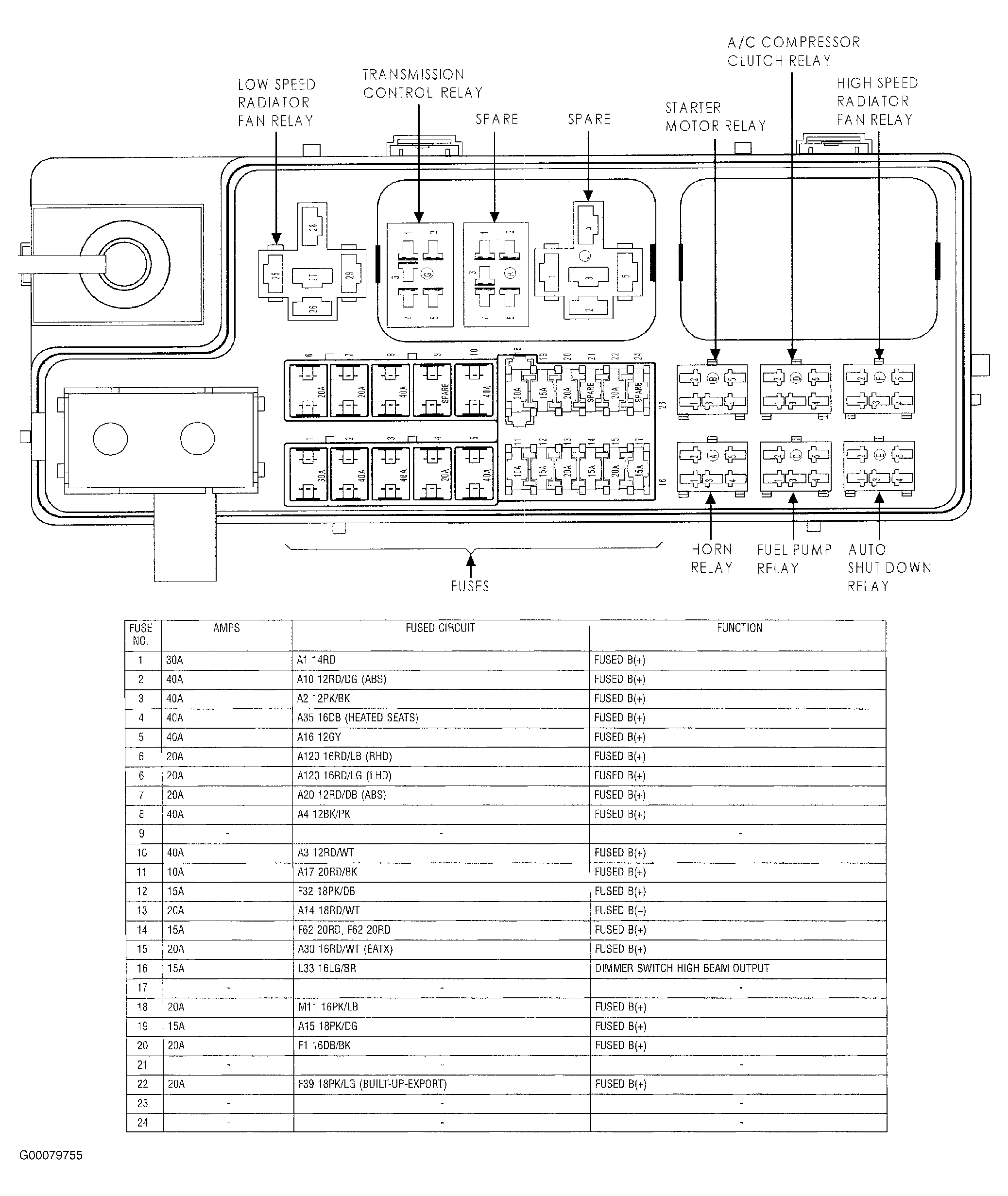

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
