TCM Harness Connector End View

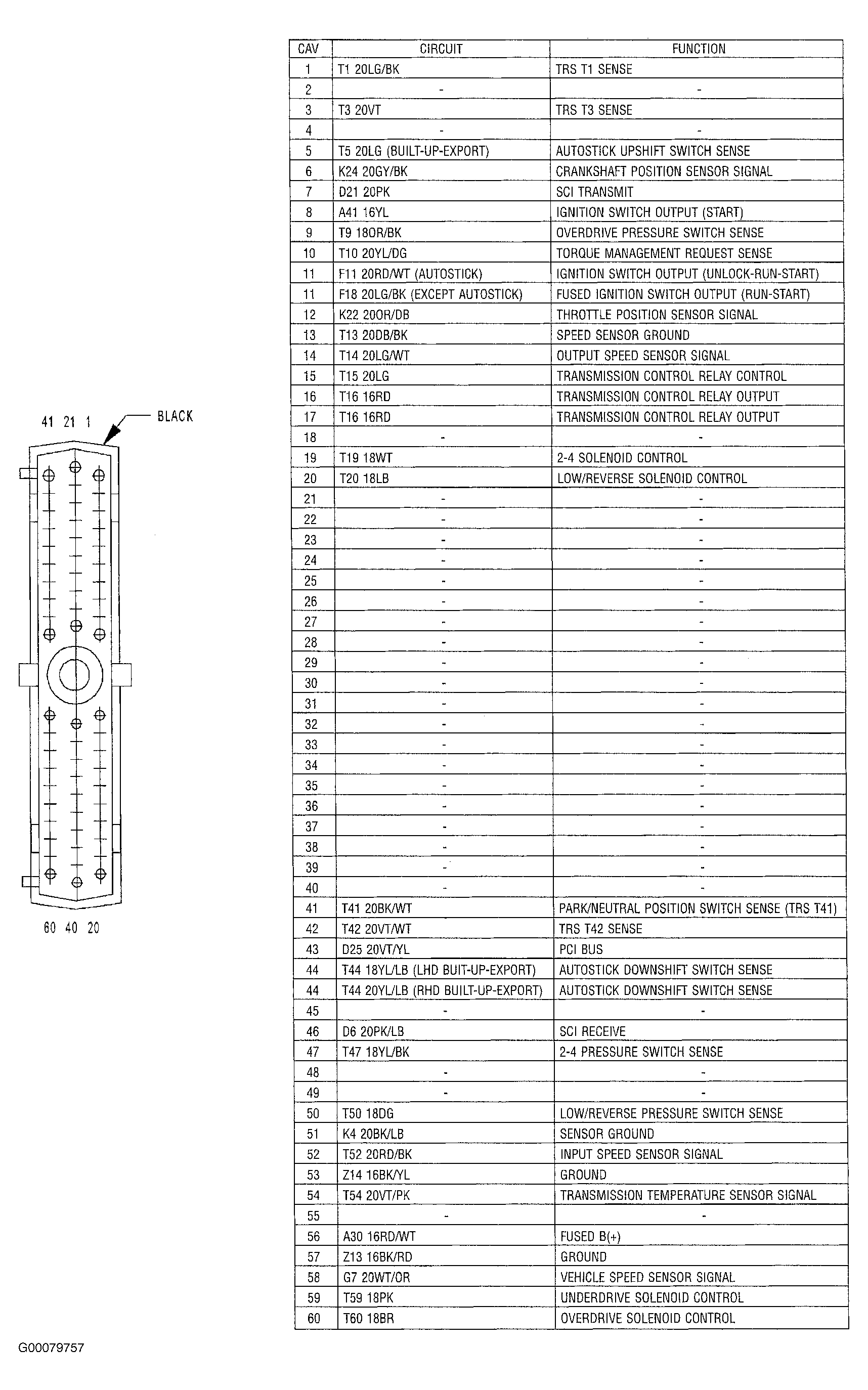

Fig 1: TCM Harness Connector Terminal Identification
G00079757Courtesy of DAIMLERCHRYSLER CORPORATION
