Connector Identification
›
Transmission Range Sensor Harness Connector End View
Transmission Range Sensor Harness Connector End View

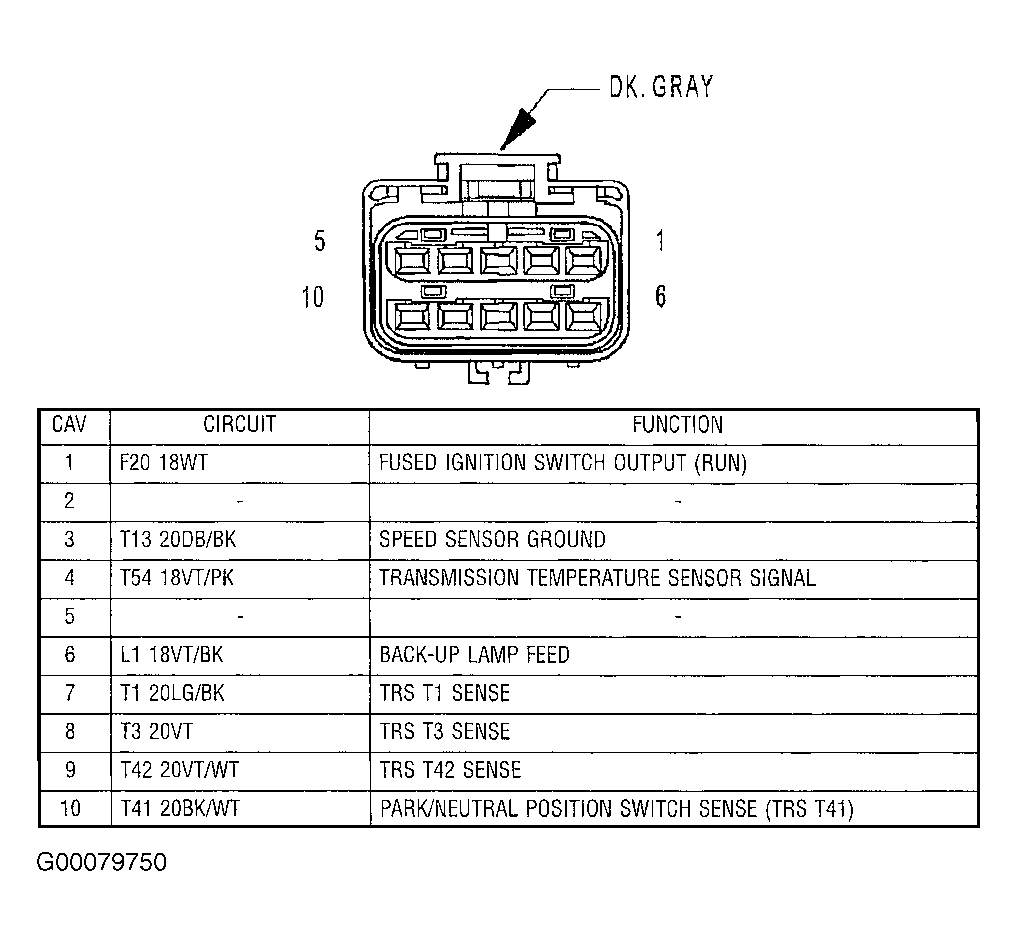

Fig 1: Identifying Transmission Range Sensor Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
