Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2002 Dodge Ram Wagon and 2002 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle.
Disconnect speed sensor from the main harness.
Remove sensor mounting bolt from the steering knuckle (Fig 1 ).
Remove the sensor from the steering knuckle.

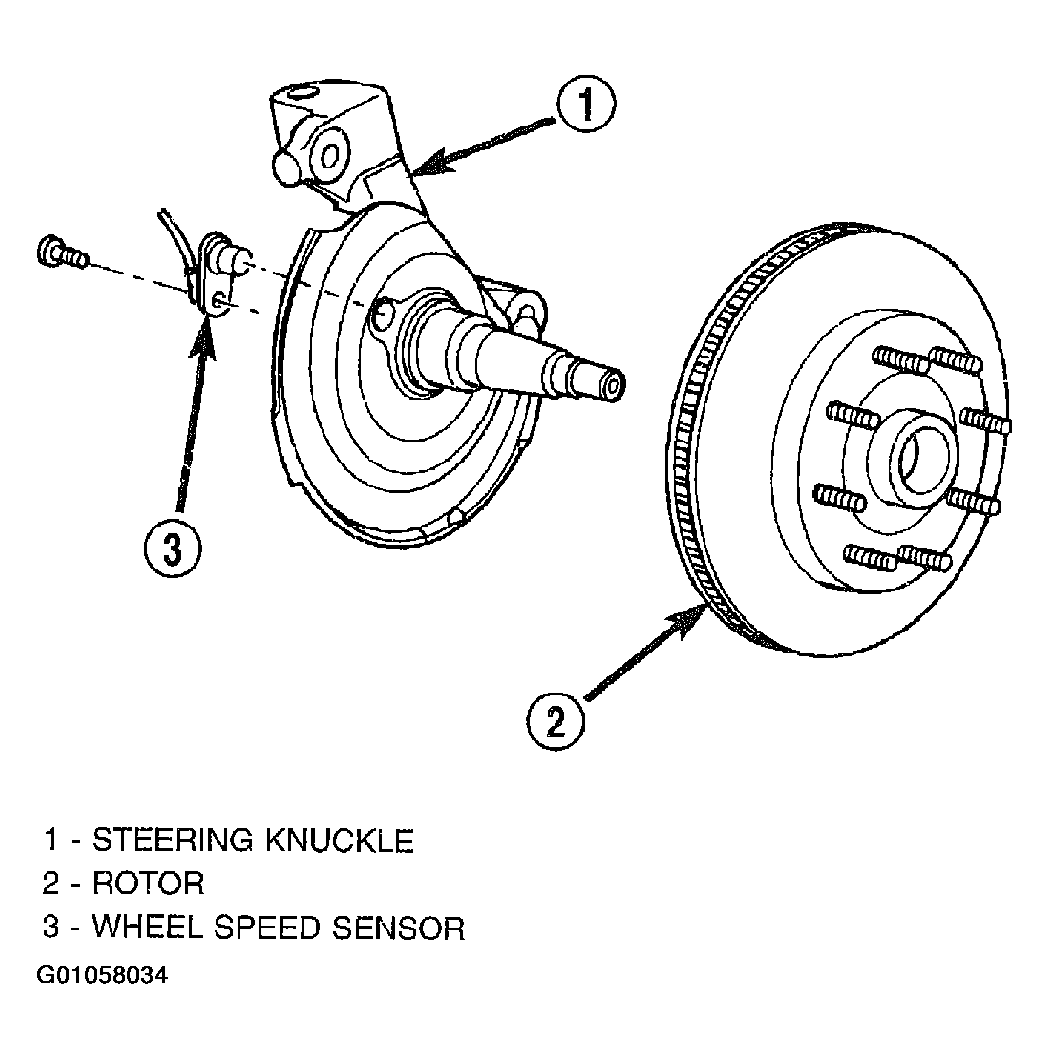

Fig 1: Removing Front Wheel Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
