C106 Connector End View

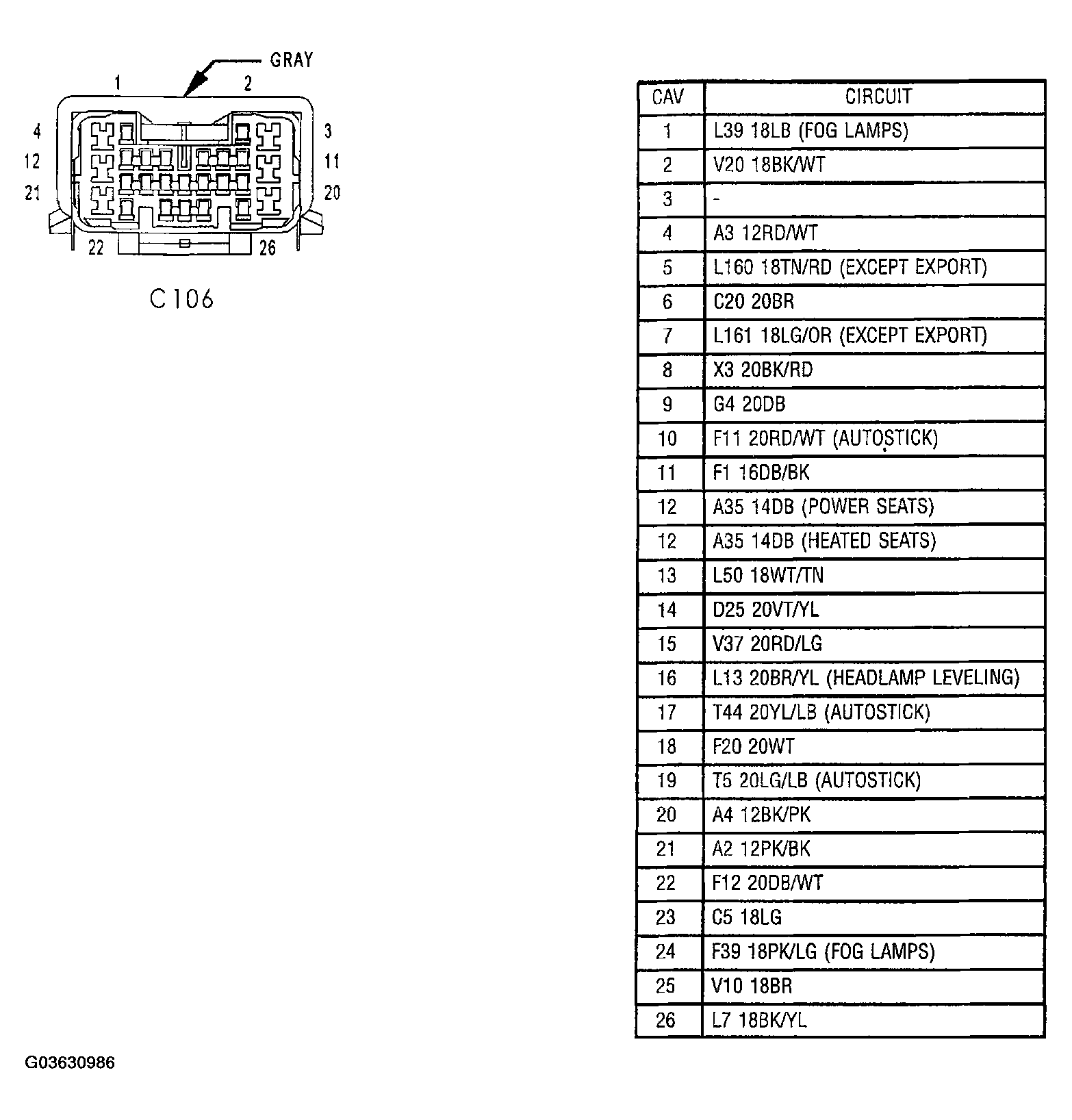

Fig 1: C106 Connector End View
G03630986Courtesy of CHRYSLER GROUP, LLC

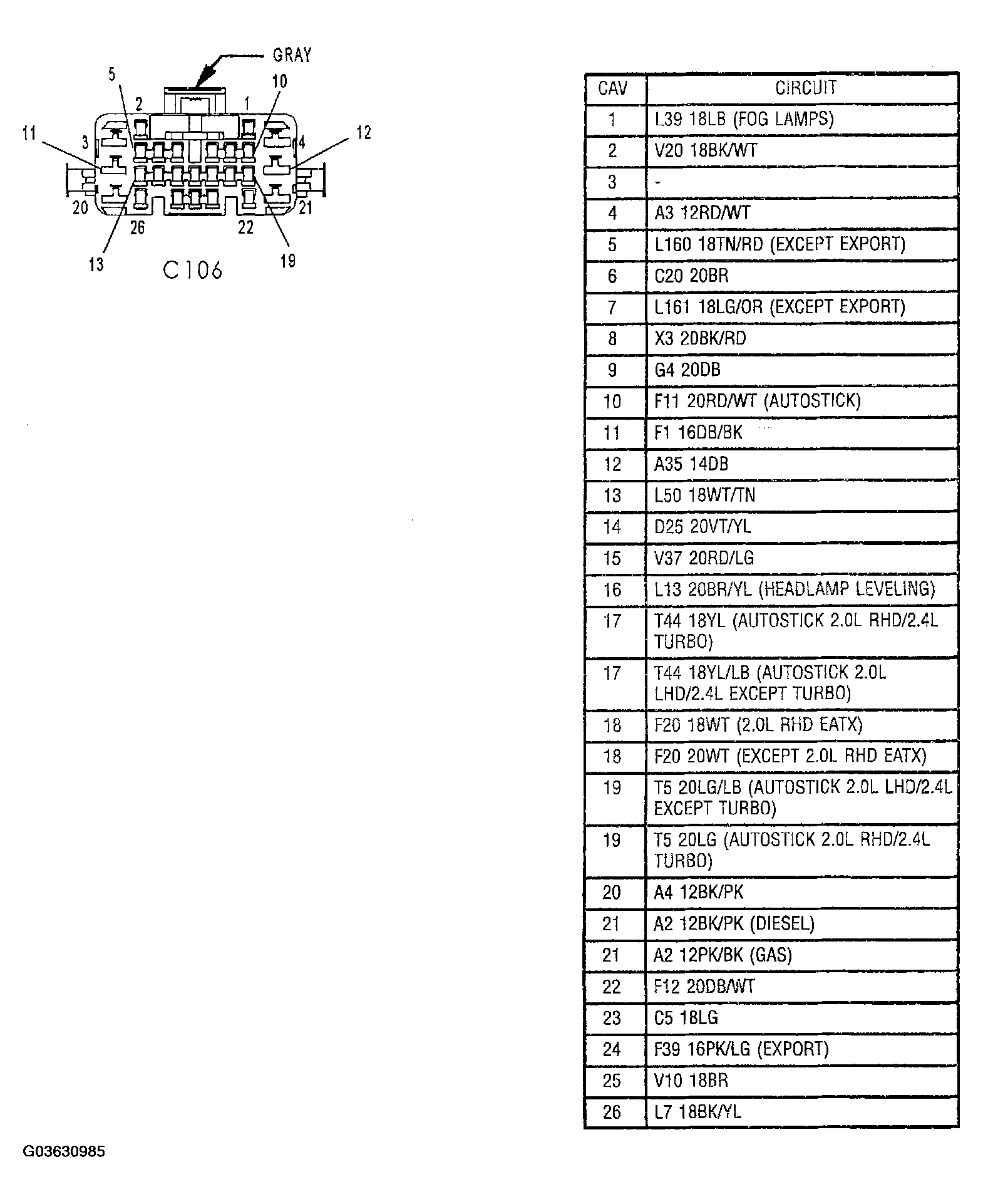

Fig 1: C106 Connector End View
G03630985Courtesy of CHRYSLER GROUP, LLC
