Front Wiper Motor Connector End View
Front Wiper Motor Connector End View

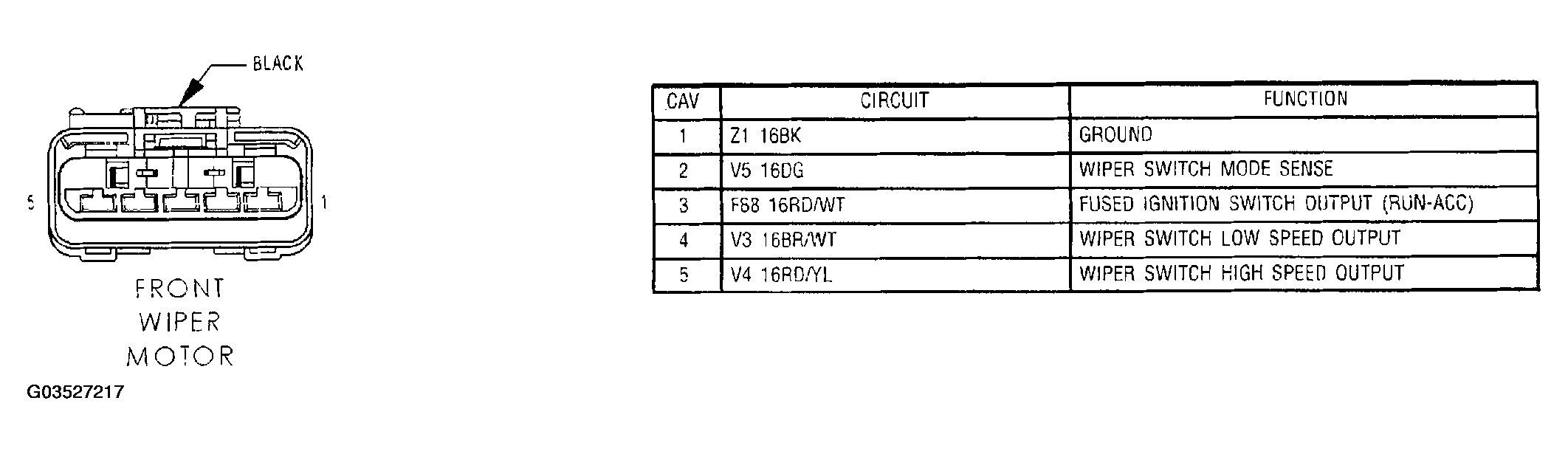

Fig 1: Front Wiper Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
