Oil Pump: Assembly

Assemble oil pump as shown in (Fig 1)
Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (20 ft. lbs.) torque.

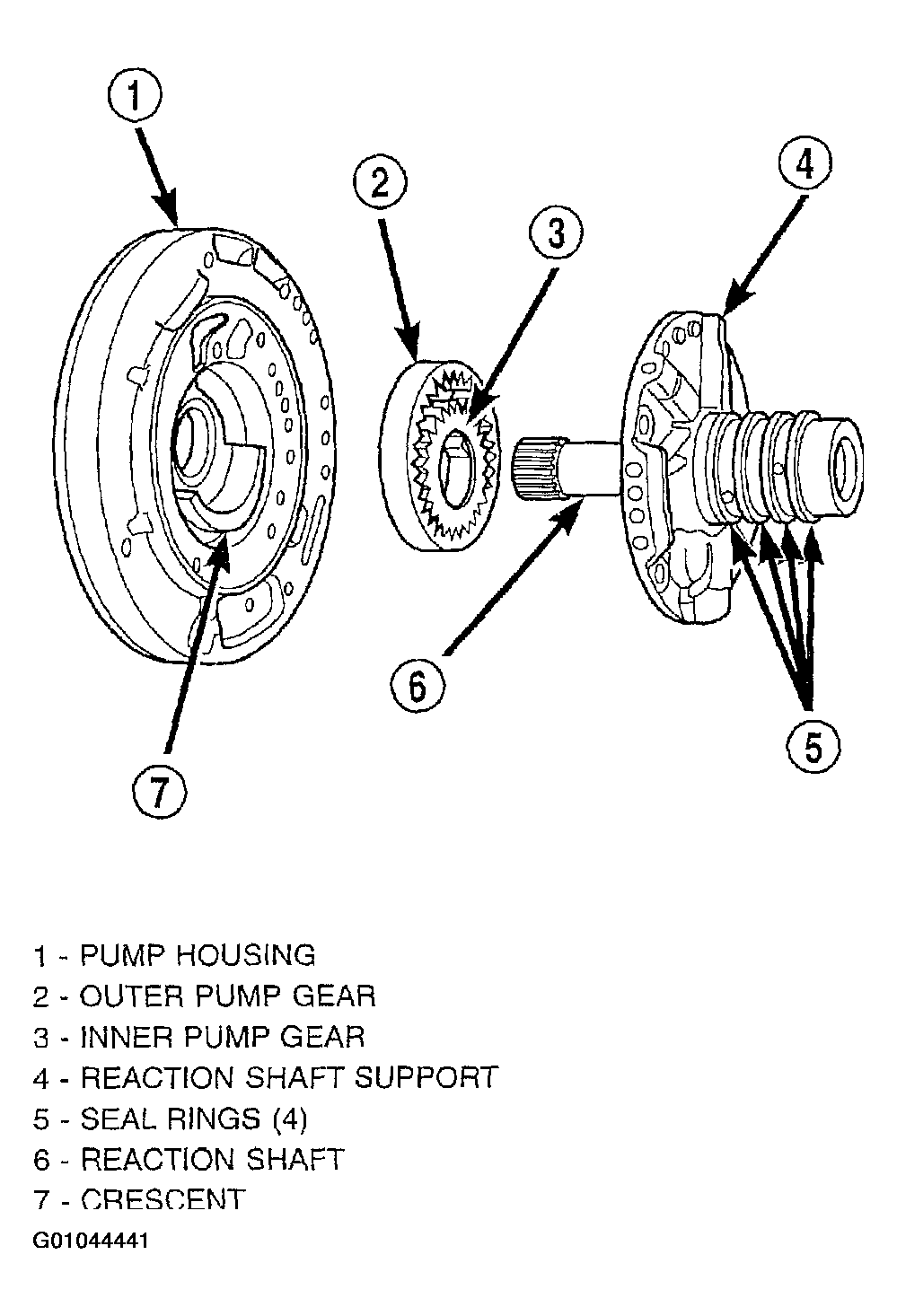

Fig 1: Installing Oil Pump Assembly

Courtesy of DAIMLERCHRYSLER CORP.
