Shift Interlock Cable: Removal

Disconnect the battery negative cable.
Loosen set screw and remove knob from shifter handle (Fig 1).

Fig 1: Removing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
Remove the center console assembly as shown in (Fig 2).

Fig 2: Removing Center Console
Courtesy of DAIMLERCHRYSLER CORP.
Remove shifter bezel (Fig 3).

Fig 3: Removing Shifter Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the shifter/ignition interlock cable from the shifter lever and bracket as shown in (Fig 4). Remove the cable core end from the plastic cam of the shifter mechanism and release cable from shifter bracket.

Fig 4: Disconnecting Interlock Cable At Shifter Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering column lower cover (Fig 5).

Fig 5: Removing Steering Column Lower Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering column upper and lower shrouds (Fig 6).

Fig 6: Removing Steering Column Shrouds
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the Brake/Transmission Shift Interlock (BTSI) solenoid connector from the interlock cable (Fig 7).

Fig 7: Disconnecting Interlock Cable At Steering Column-Typical
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the ignition key to the "OFF" or "ON/RUN" position (Fig 8).

Fig 8: Identifying Ignition Key/Switch Positions
Courtesy of DAIMLERCHRYSLER CORP.

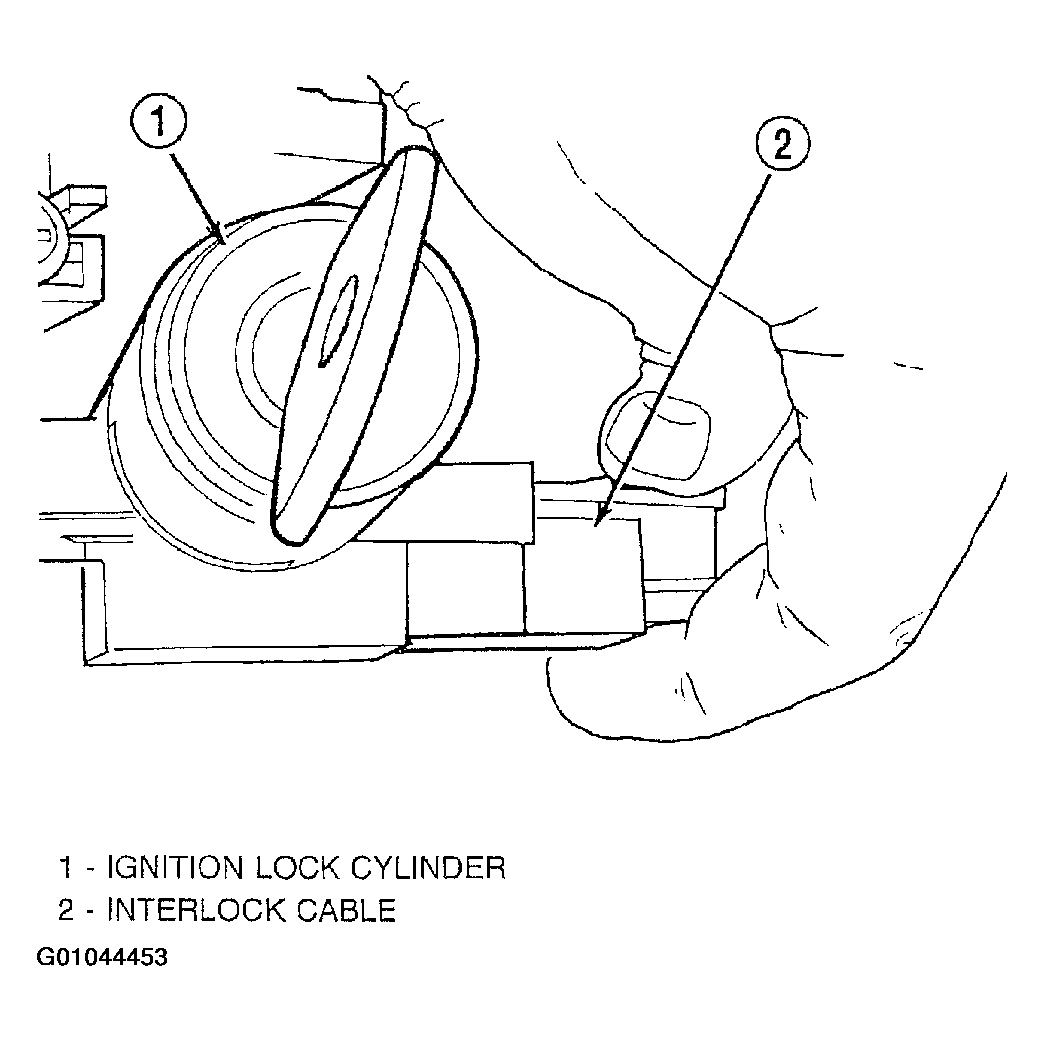

Squeeze the interlock cable locking tab. Remove the cable from the interlock housing (Fig 9).

Fig 9: Identifying Interlock Cable & Connector
Courtesy of DAIMLERCHRYSLER CORP.
Release cable from retaining clips and remove through opening under steering column.
