Shift Interlock Mechanism: Removal

Remove the steering column lower cover (Fig 1).

Fig 1: Removing Steering Column Lower Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering column upper and lower shrouds (Fig 2).

Fig 2: Removing Steering Column Shrouds
Courtesy of DAIMLERCHRYSLER CORP.
Turn the ignition key to the "OFF" or "ON/RUN" position (Fig 3).

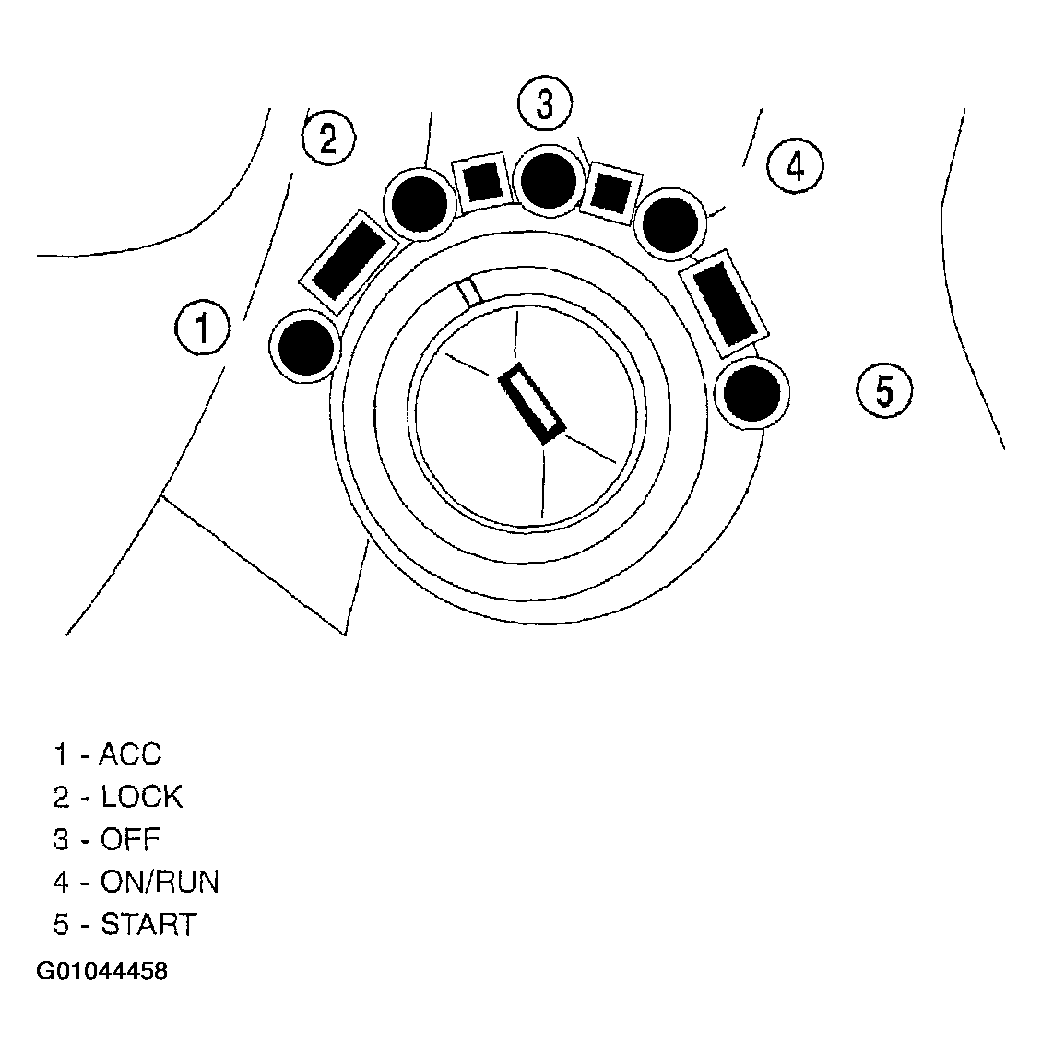

Fig 3: Identifying Ignition Key/Switch Positions
Courtesy of DAIMLERCHRYSLER CORP.
Grasp the interlock cable and connector firmly. Remove the interlock cable (Fig 4).

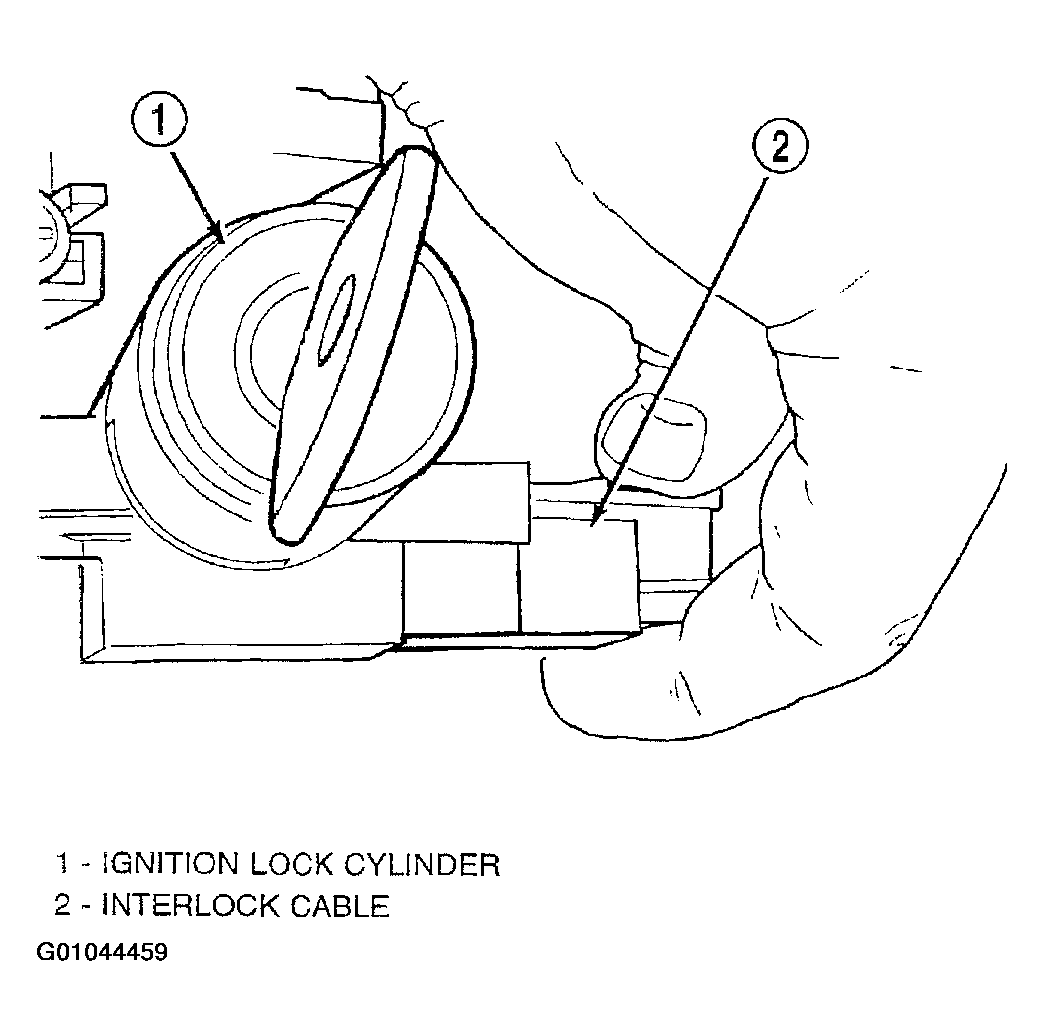

Fig 4: Removing Interlock Cable
Courtesy of DAIMLERCHRYSLER CORP.
Remove the two interlock mechanism-to-steering column attaching screws (Fig 5). Remove the interlock housing.

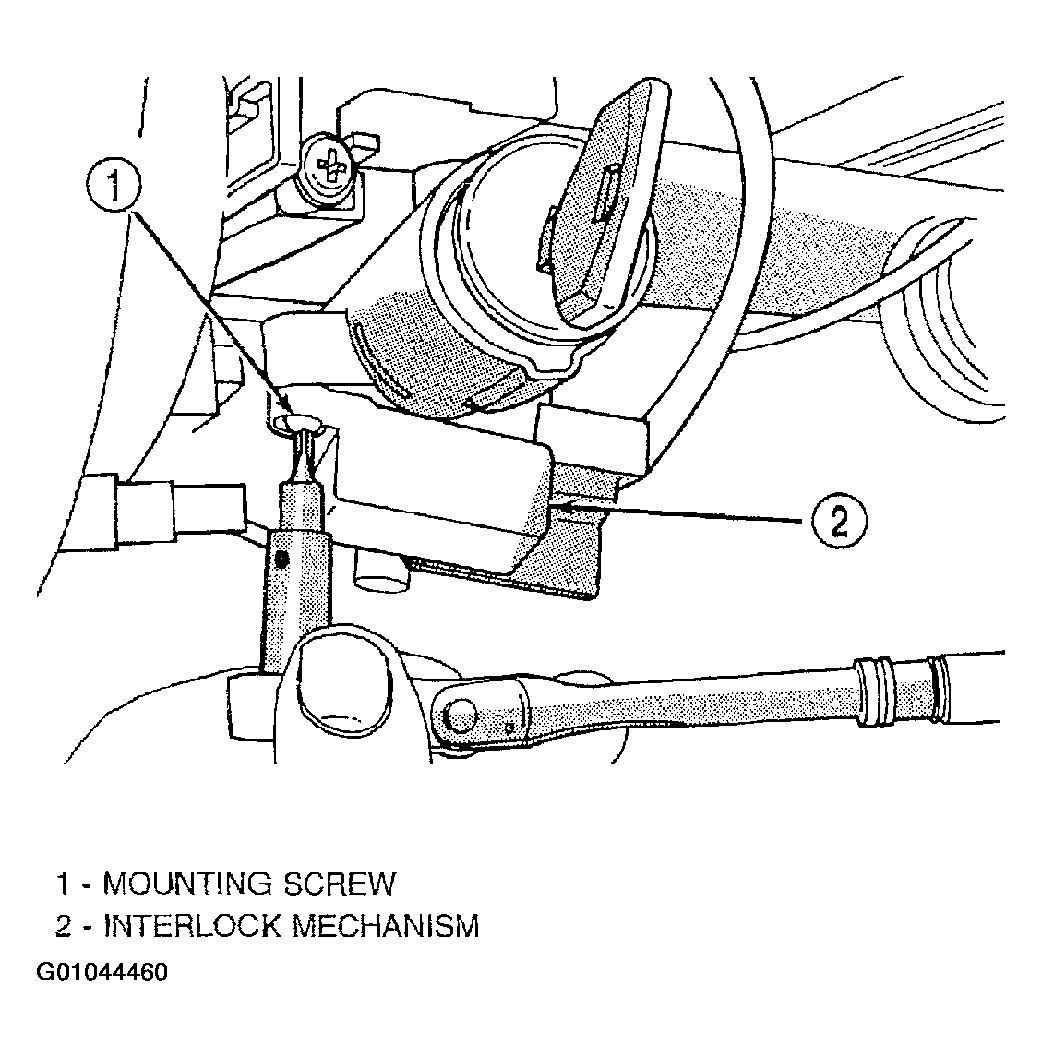

Fig 5: Removing Interlock Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
