Brake/Transmission Shift Interlock System: Verification

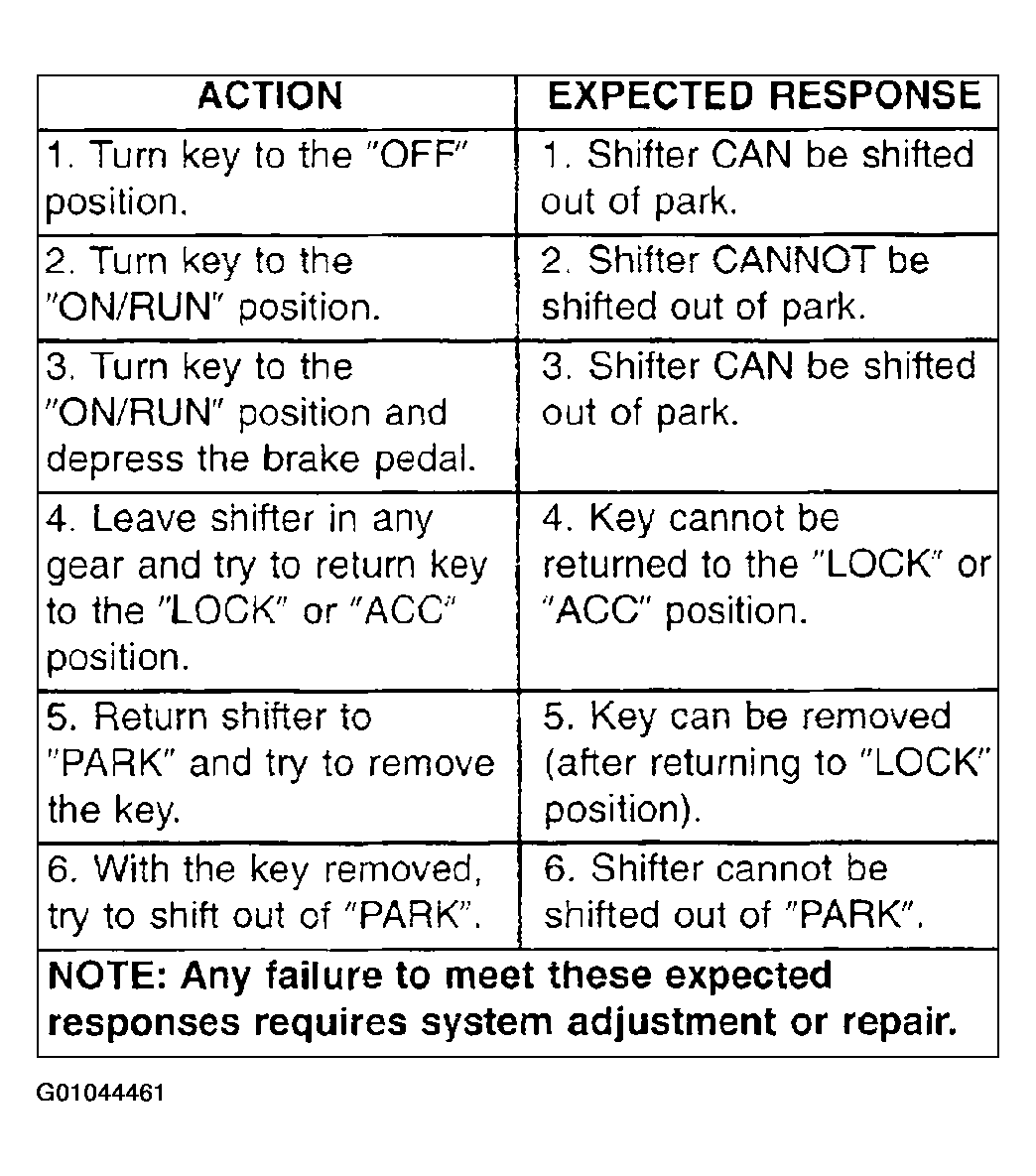

The following chart describes the normal operation of the Brake Transmission Shift Interlock (BTSI) system (Fig 1). If the "expected response" differs from the vehicle's response, then system repair and/or adjustment is necessary.
