Valve Body: Assembly

NOTE: If valve body assembly is reconditioned, the TCM Quick Learn Procedure must be performed. (Refer to TRANSAXLE SHIFT QUALITY QUICK LEARN PROCEDURE )
  1. Install valves and springs as shown in (Fig 1).

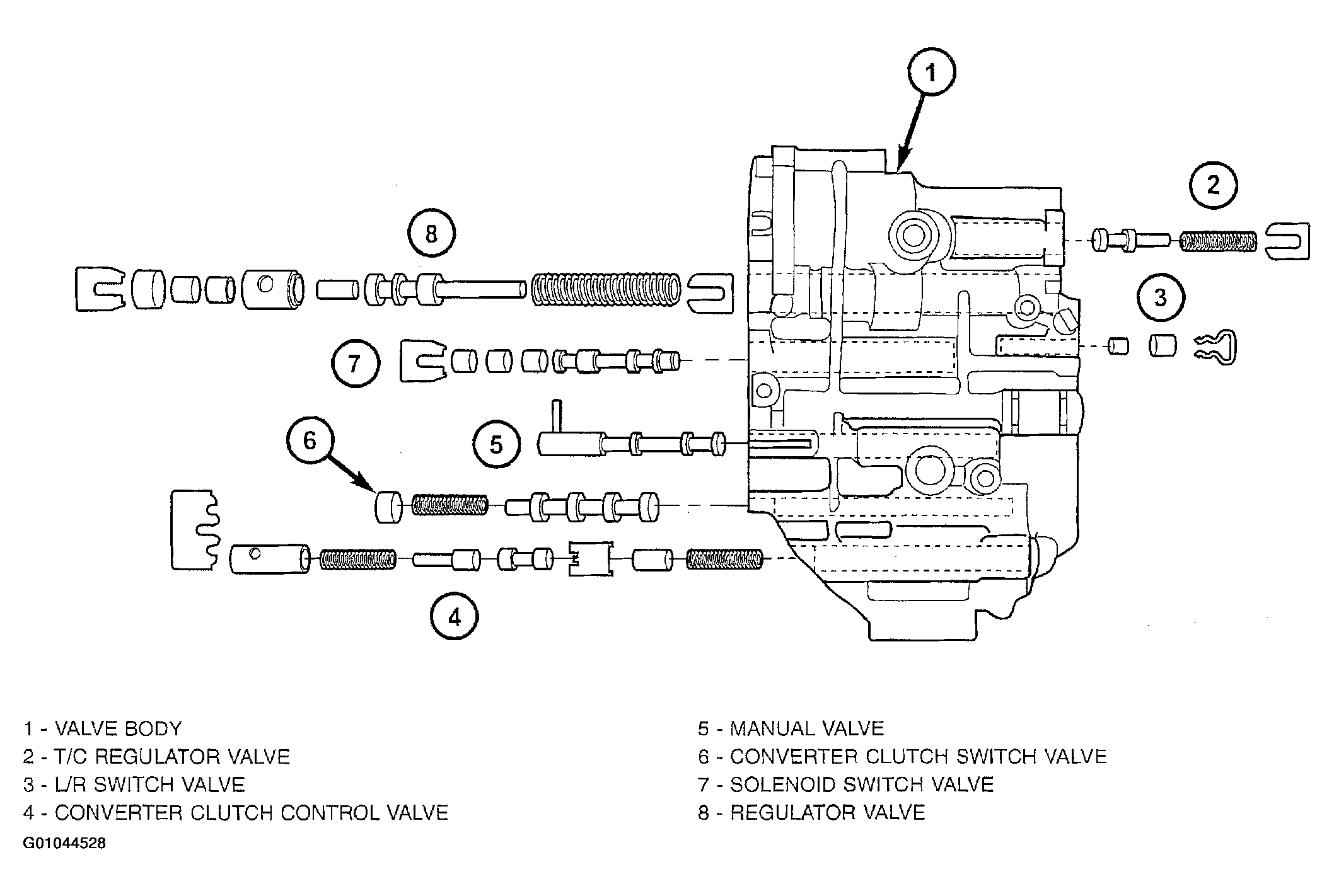

    Fig 1: Locating Springs & Valves
    G01044528Courtesy of DAIMLERCHRYSLER CORP.
  2. Install regulator valve spring retainer (Fig 2).

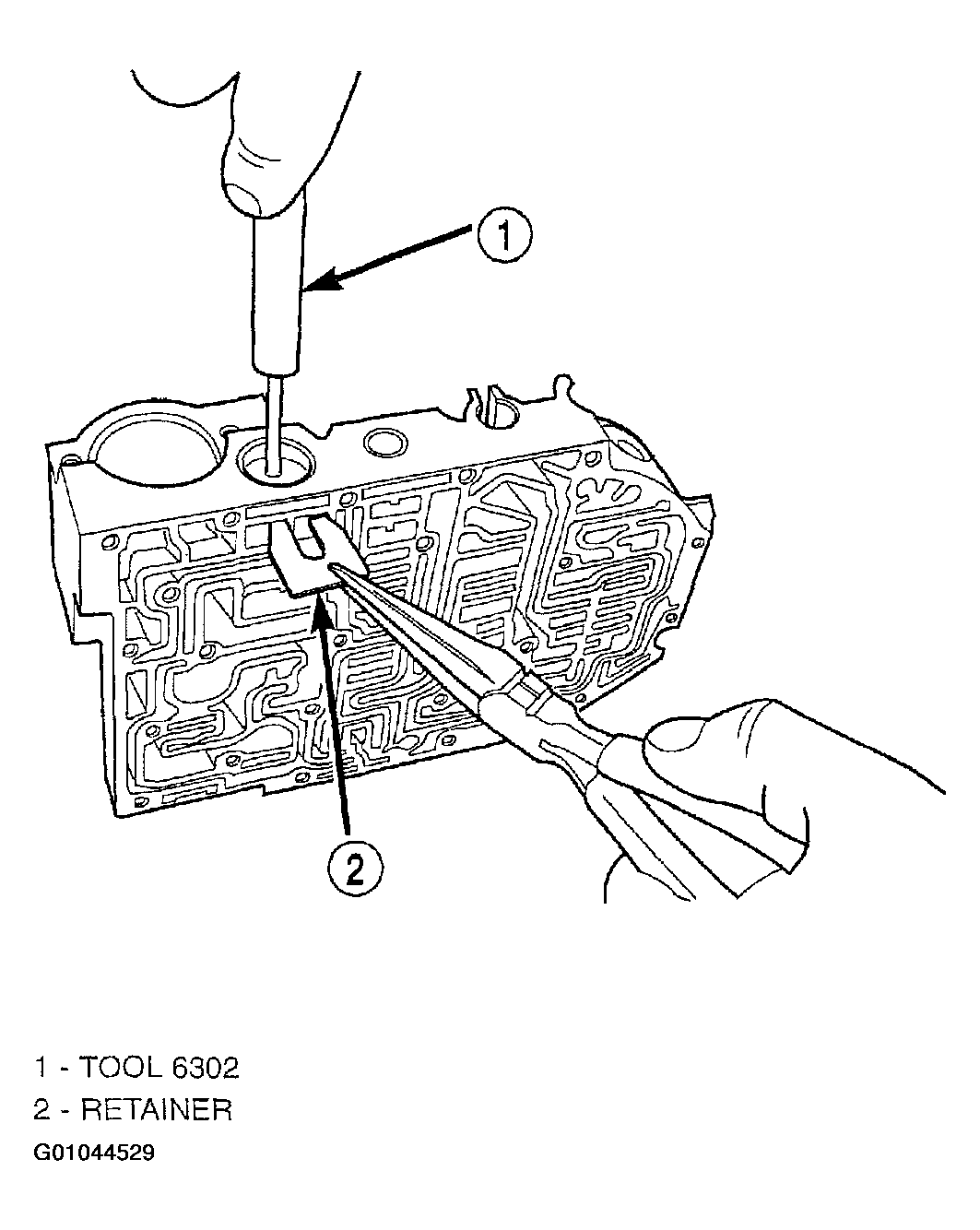

    Fig 2: Installing Regulator Valve Spring Retainer Using Tool 6302
    G01044529Courtesy of DAIMLERCHRYSLER CORP.

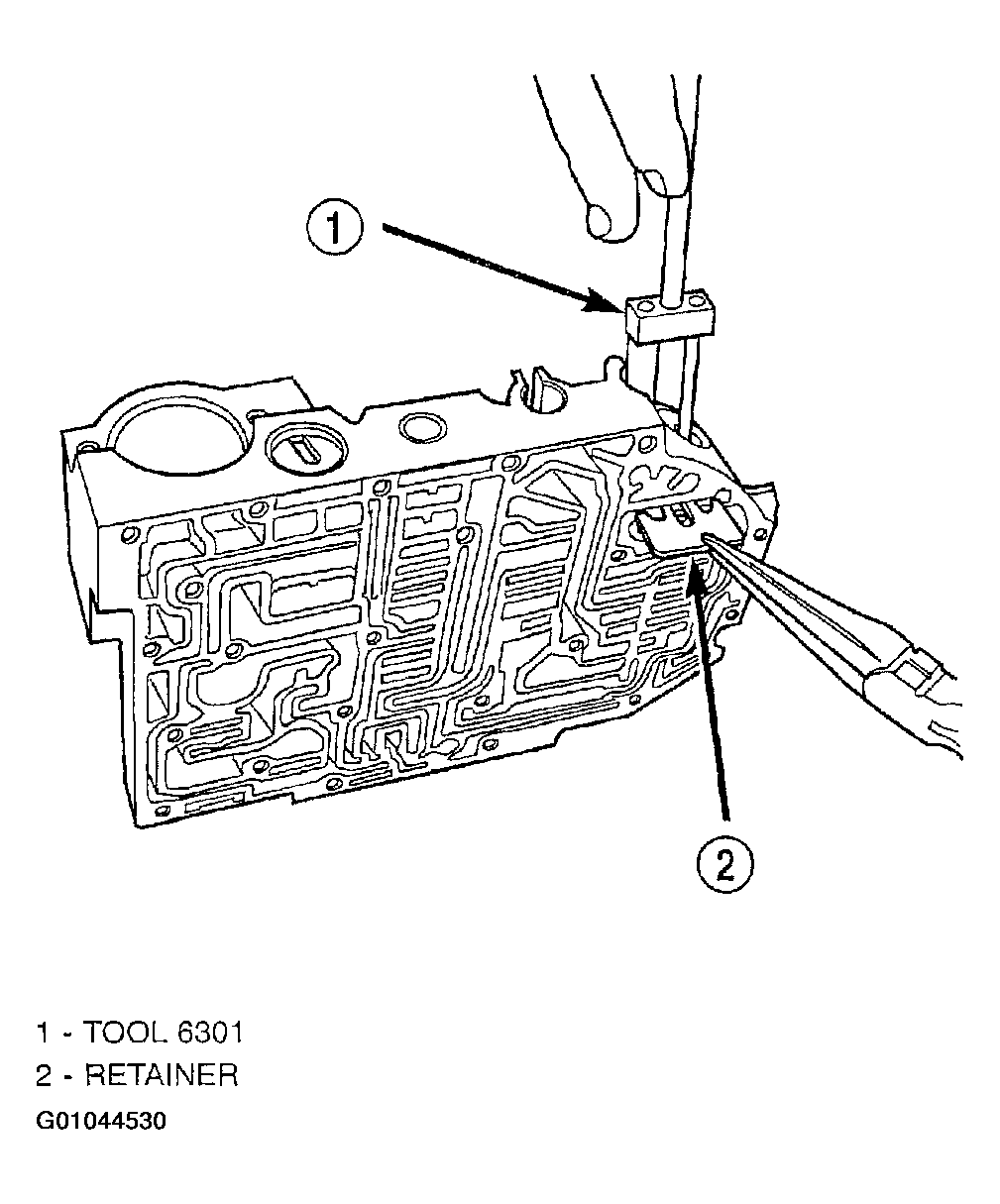

  3. Install dual retainer plate using Tool 6301 (Fig 3).
    Fig 3: Installing Dual Retainer Plate Using Tool 6301
    G01044530Courtesy of DAIMLERCHRYSLER CORP.

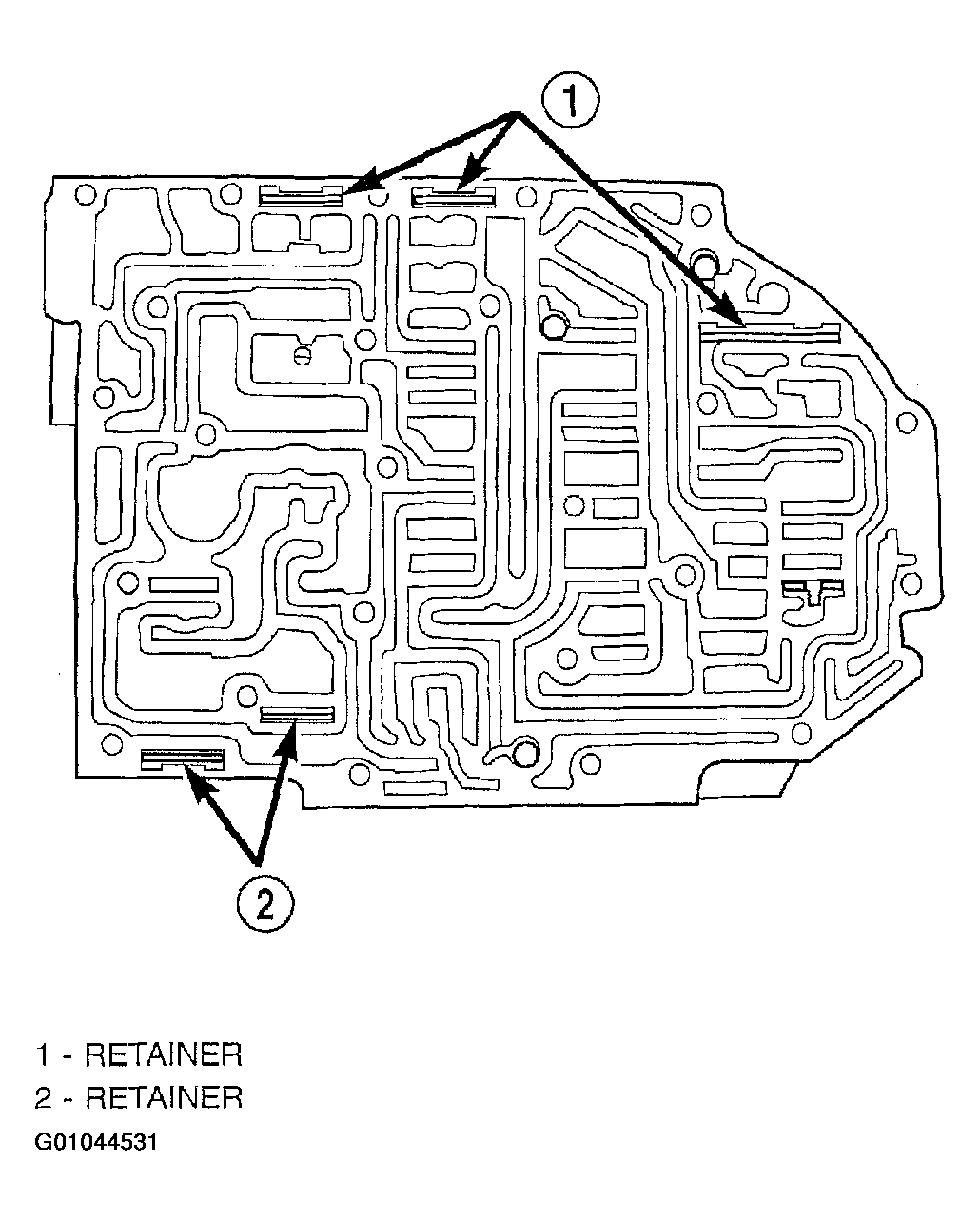

    Fig 4: Locating Valve Retainer
    G01044531Courtesy of DAIMLERCHRYSLER CORP.

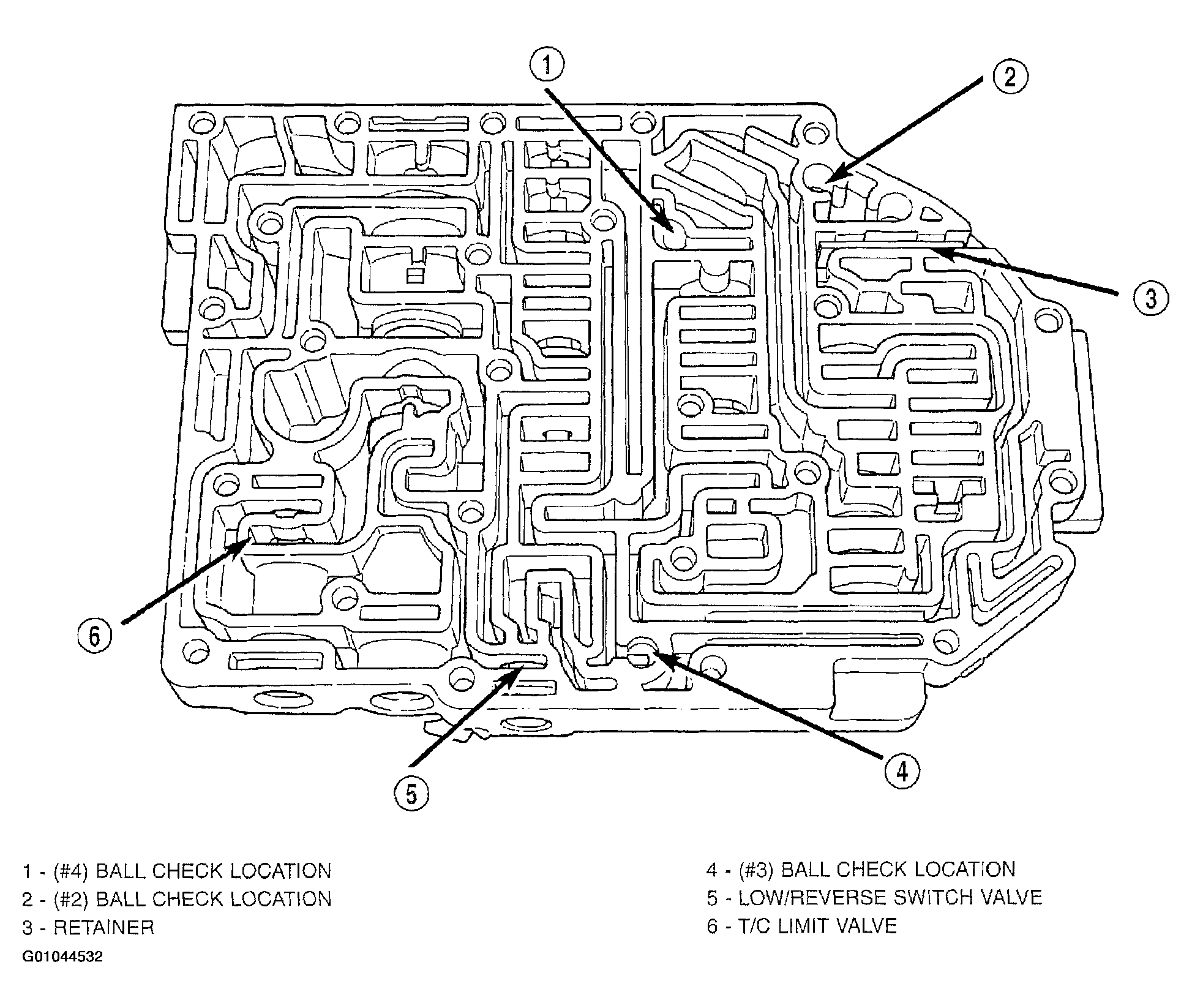

    Fig 5: Locating Ball Check
    G01044532Courtesy of DAIMLERCHRYSLER CORP.
  4. Verify that all retainers are installed as shown in (Fig 4). Retainers should be flush or below valve body surface.
  5. Install check balls into position as shown in (Fig 5). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.
  6. Install thermal valve into transfer plate (Fig 6).

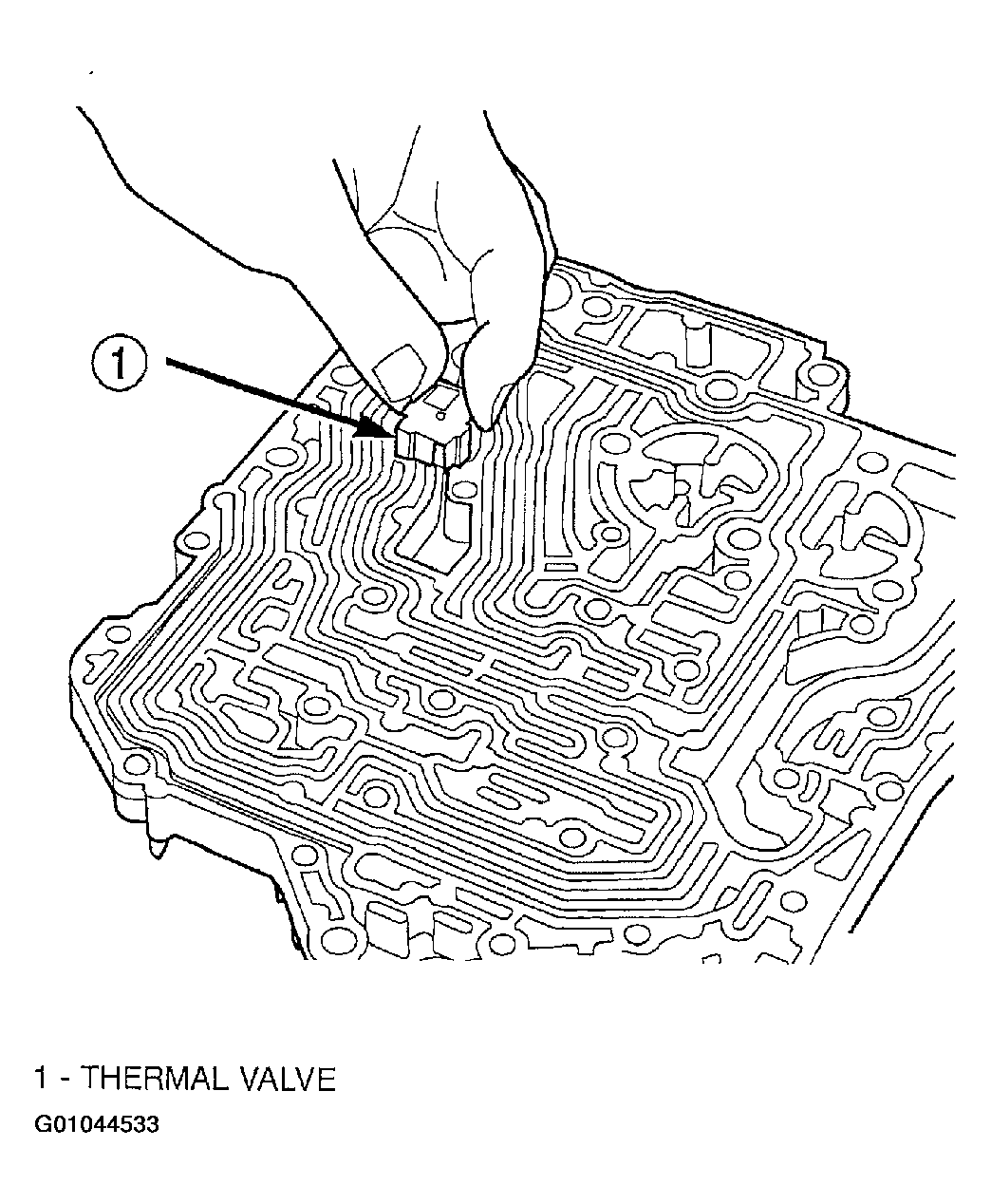

    Fig 6: Installing Thermal Valve
    G01044533Courtesy of DAIMLERCHRYSLER CORP.
  7. Install separator plate to valve body (Fig 7).

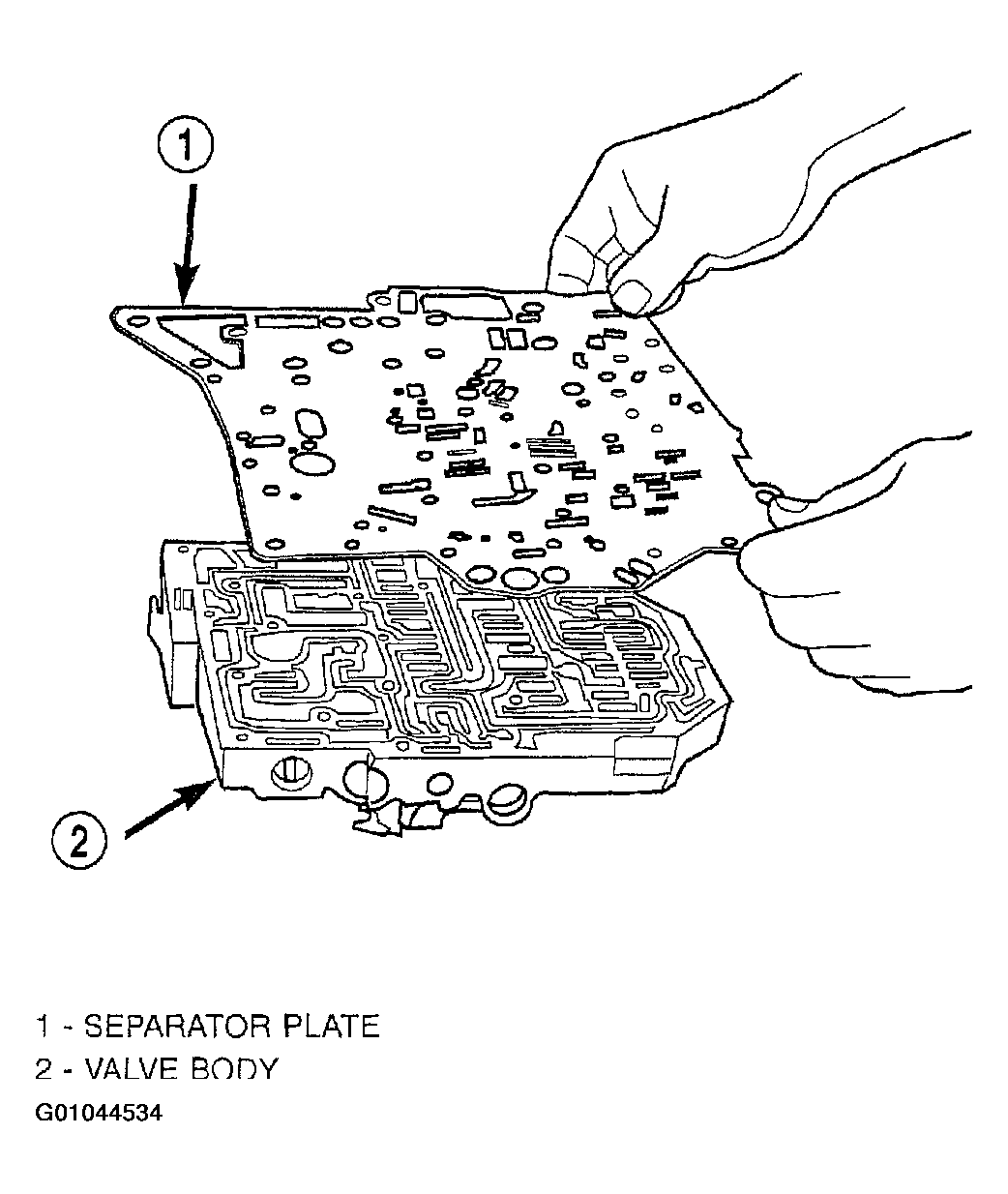

    Fig 7: Installing Separator Plate
    G01044534Courtesy of DAIMLERCHRYSLER CORP.

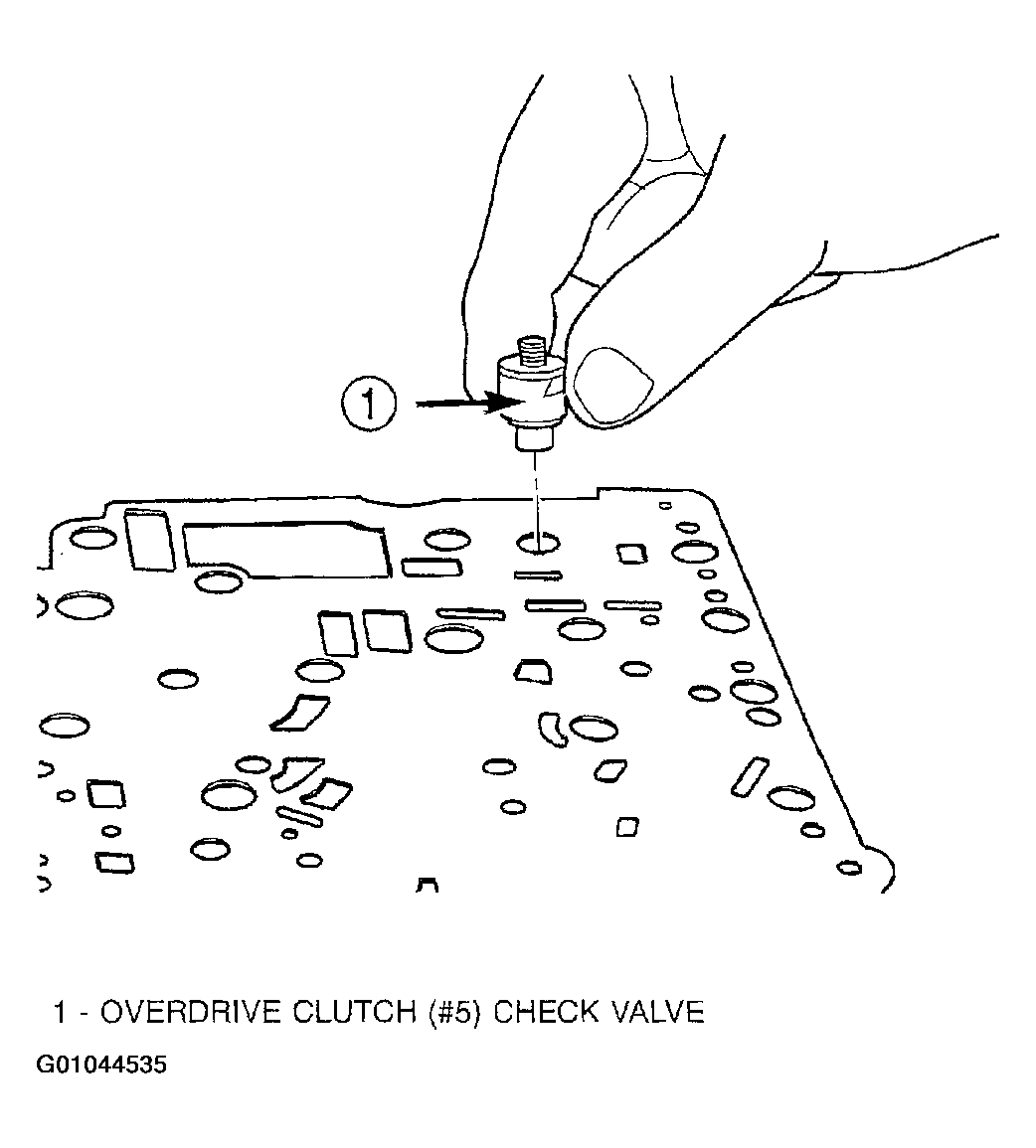

  8. Install the overdrive clutch (#5) check valve to separator plate (Fig 8)
    Fig 8: Installing Overdrive Clutch (#5) Check Valve
    G01044535Courtesy of DAIMLERCHRYSLER CORP.

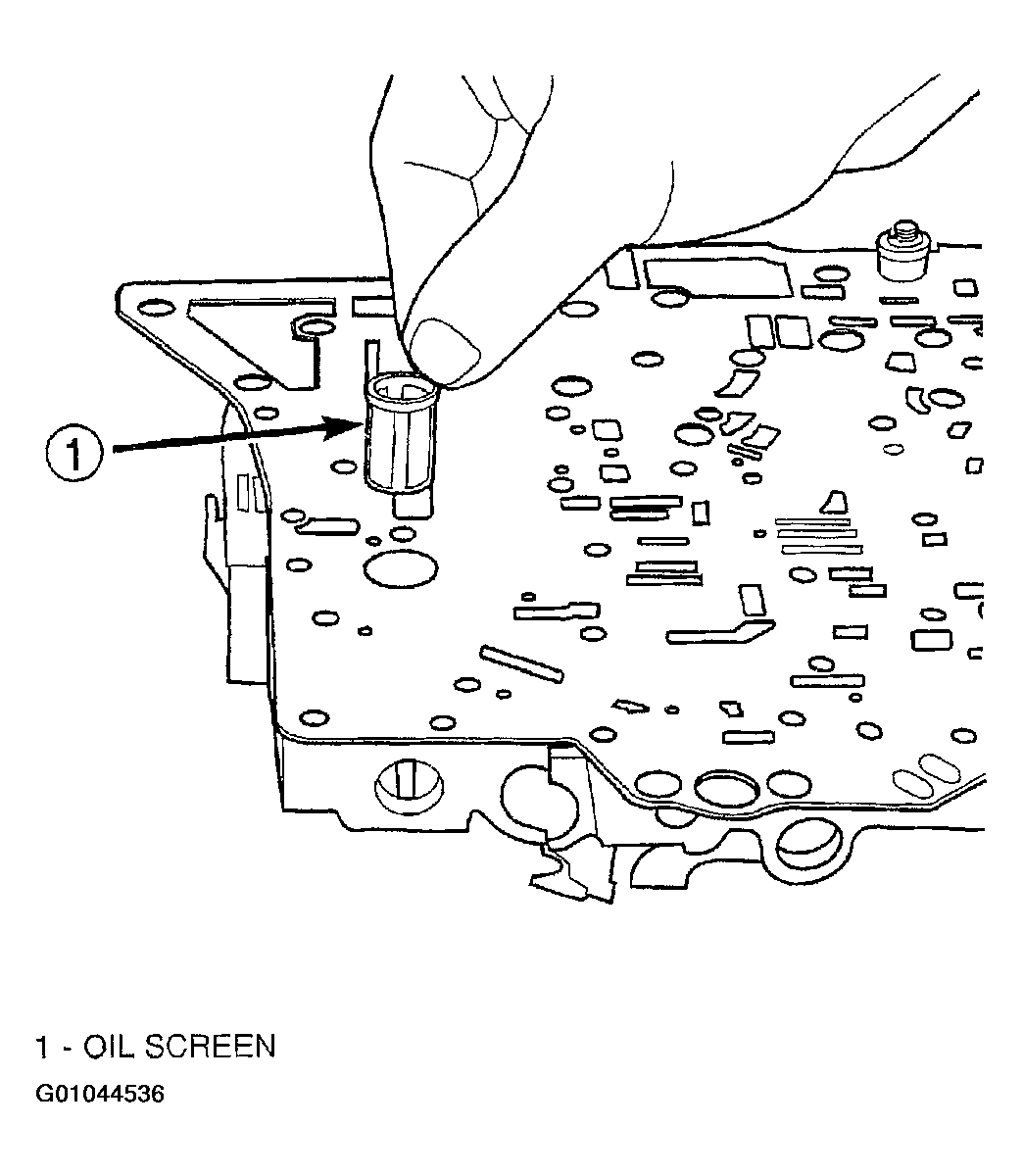

  9. Install oil screen to separator plate (Fig 9).
    Fig 9: Installing Oil Screen
    G01044536Courtesy of DAIMLERCHRYSLER CORP.

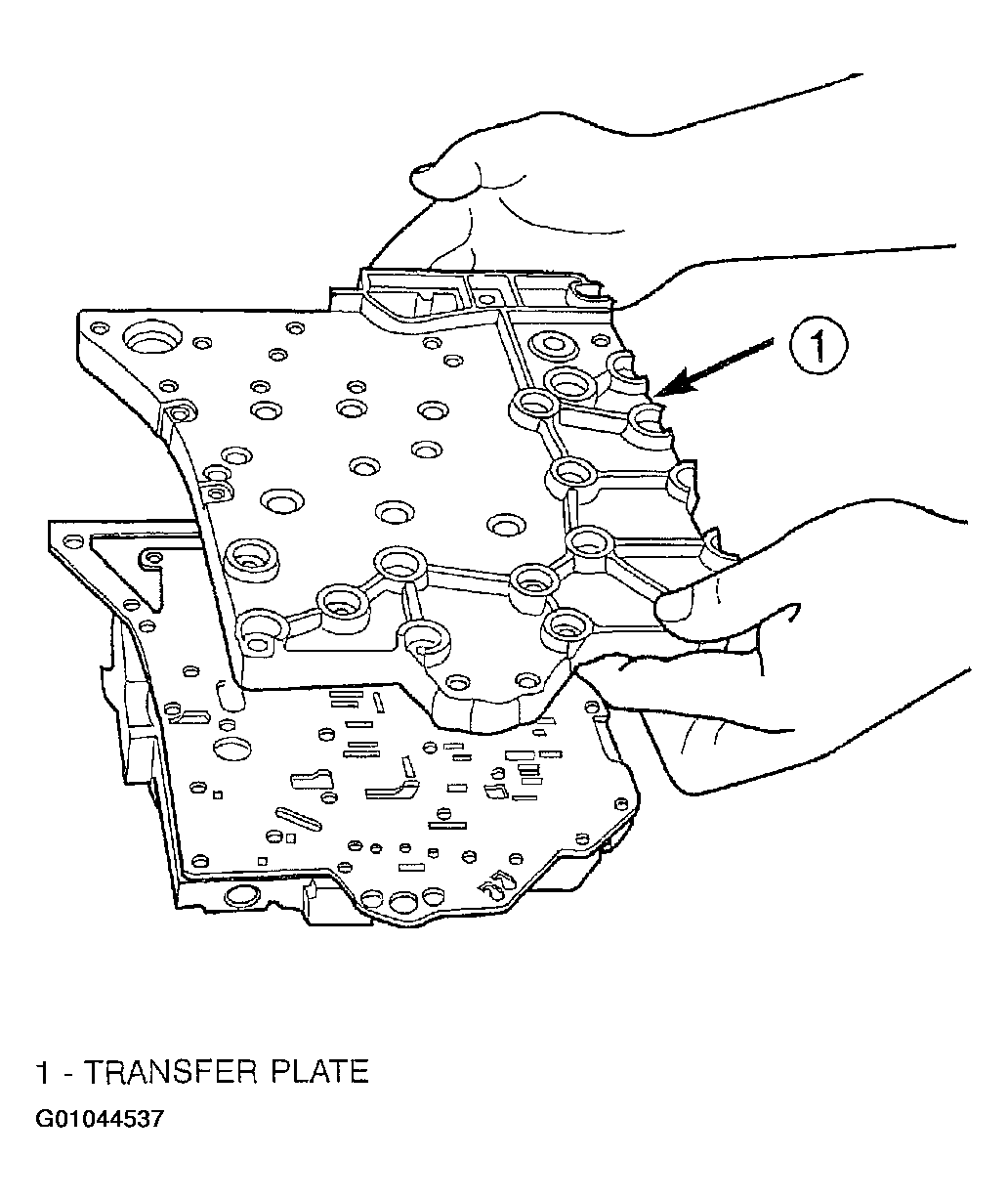

  10. Install transfer plate to valve body and separator plate. Make sure oil screen and #5 check valve do not bind (Fig 10).
    Fig 10: Installing Transfer Plate
    G01044537Courtesy of DAIMLERCHRYSLER CORP.
  11. Install twenty-four transfer plate to valve body screws (Fig 11) and torque to 5 N.m (45 in. lbs.).

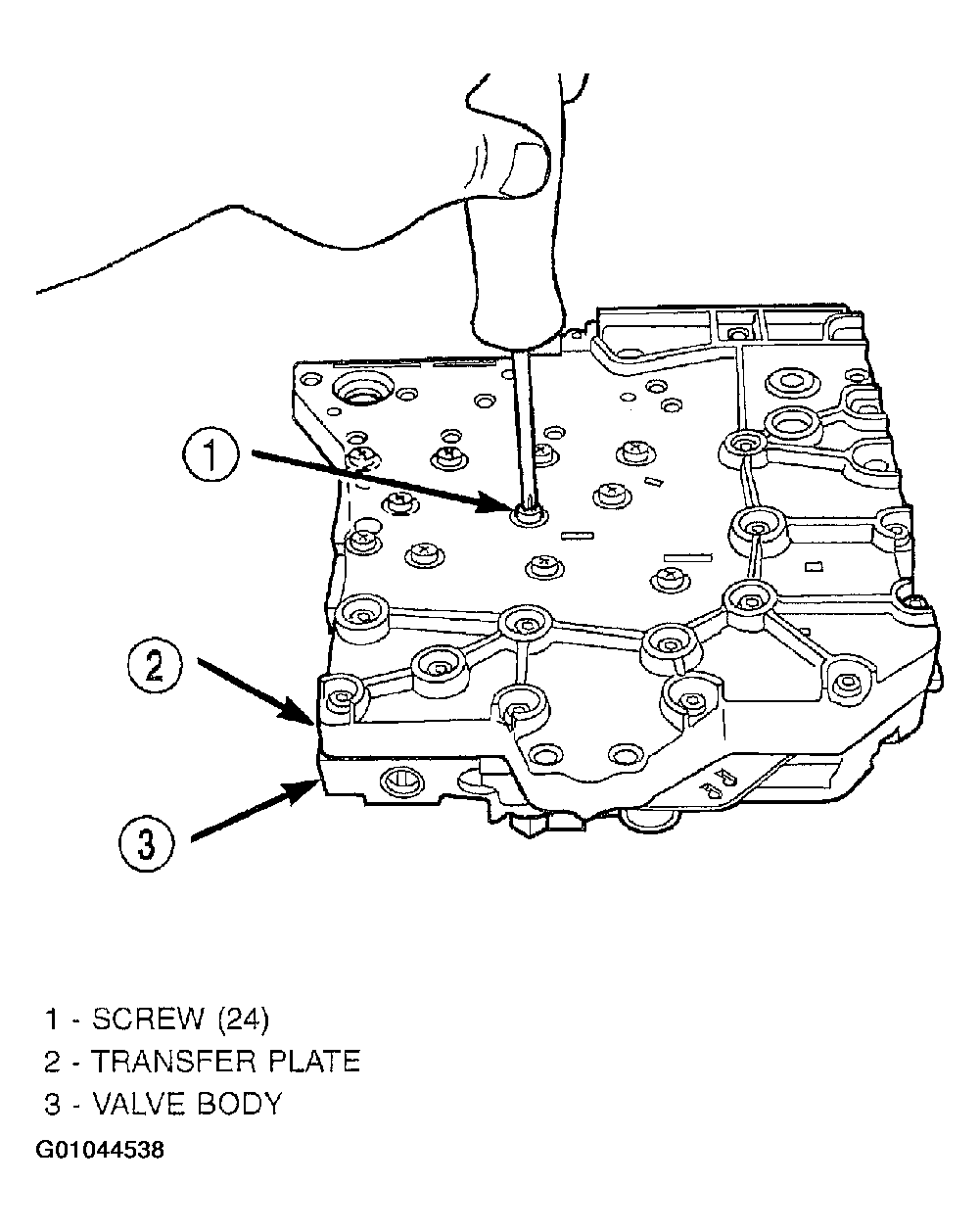

    Fig 11: Installing Valve Body to Transfer Plate Screws
    G01044538Courtesy of DAIMLERCHRYSLER CORP.

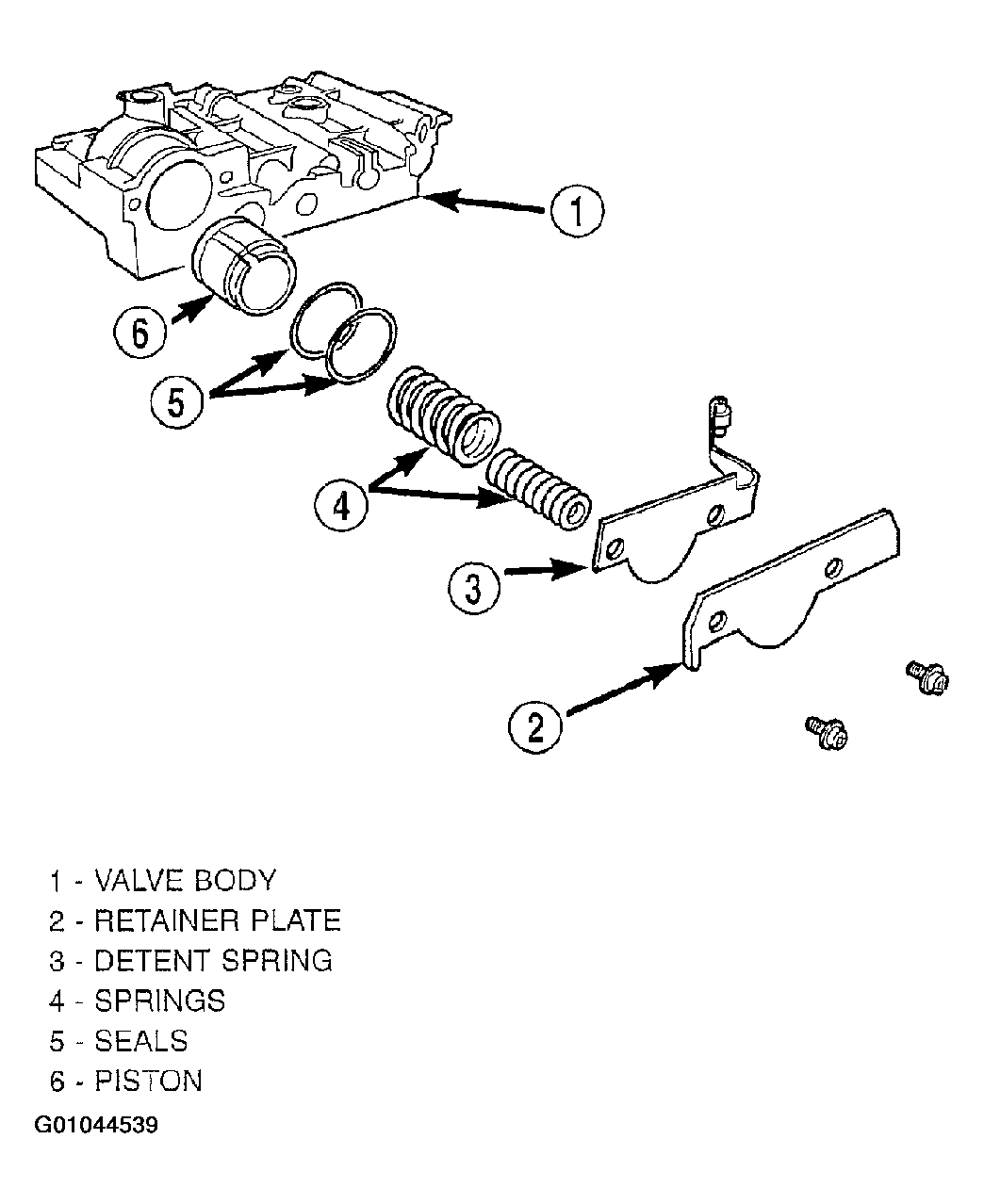

  12. Install 2/4 Accumulator components as shown in (Fig 12).
    Fig 12: Installing 2/4 Accumulator Assembly
    G01044539Courtesy of DAIMLERCHRYSLER CORP.
  13. Torque 2/4 Accumulator retainer to 5 N.m (45 in. lbs.) (Fig 13).

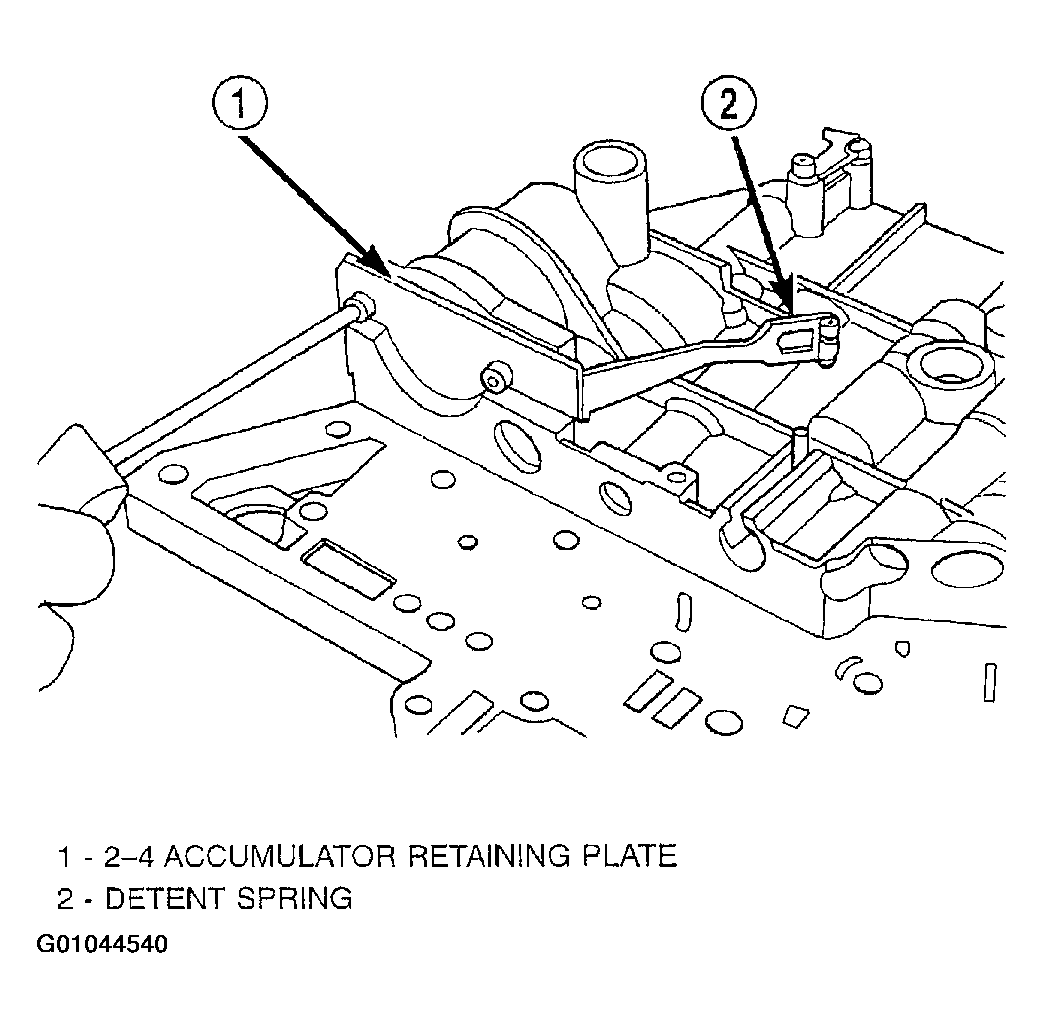

    Fig 13: Installing 2/4 Accumulator Retaining Plate
    G01044540Courtesy of DAIMLERCHRYSLER CORP.
  14. Install Manual Shaft/Rooster Comb and Transmission Range Sensor (Fig 14).

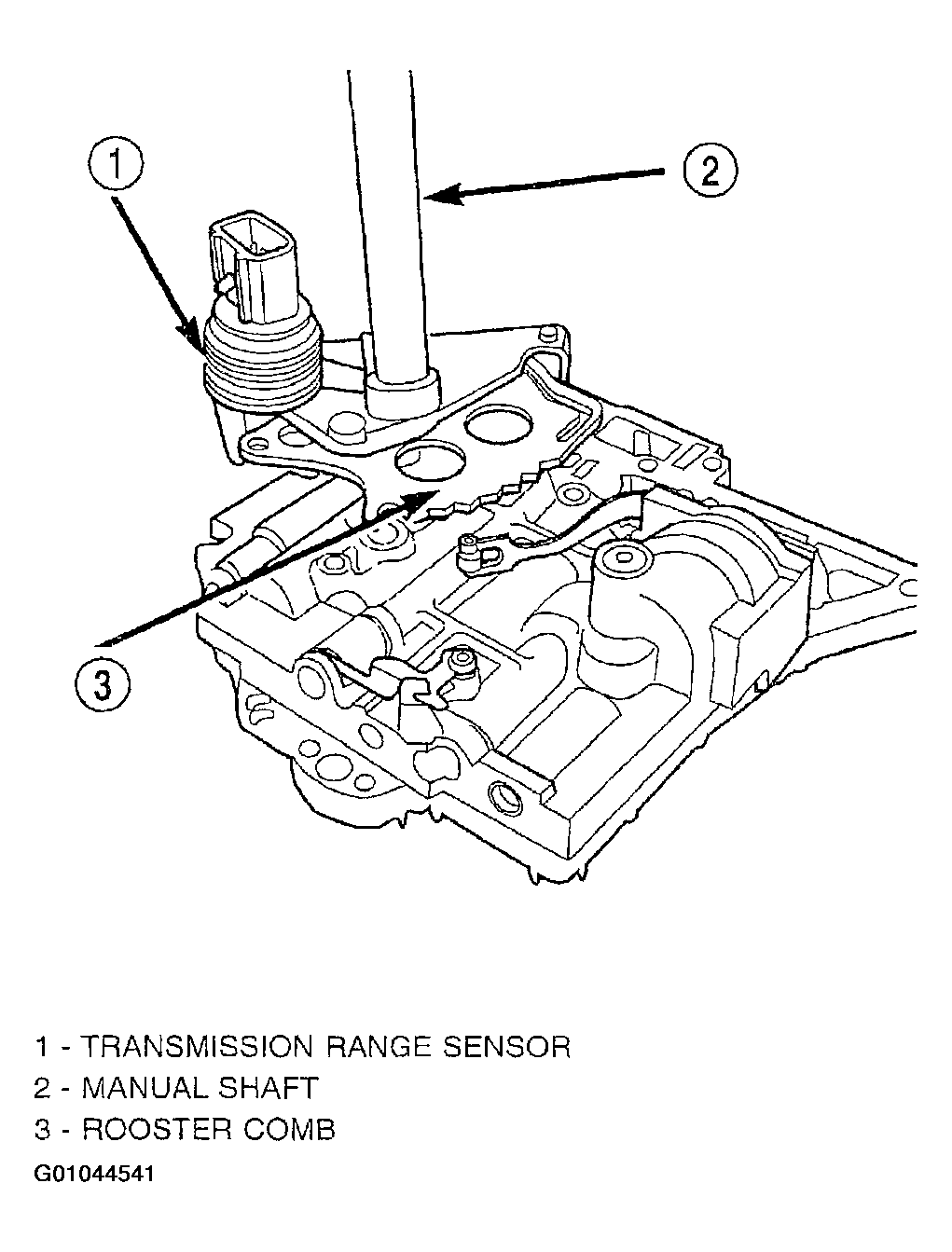

    Fig 14: Installing Manual Shaft/Rooster Comb & Transmission Range Sensor
    G01044541Courtesy of DAIMLERCHRYSLER CORP.
  15. Make sure Manual Valve control pin is contained within the rooster comb slot (Fig 15). Install Transmission Range Sensor retaining screw (Fig 15) and torque to 5 N.m (45 in. lbs.).

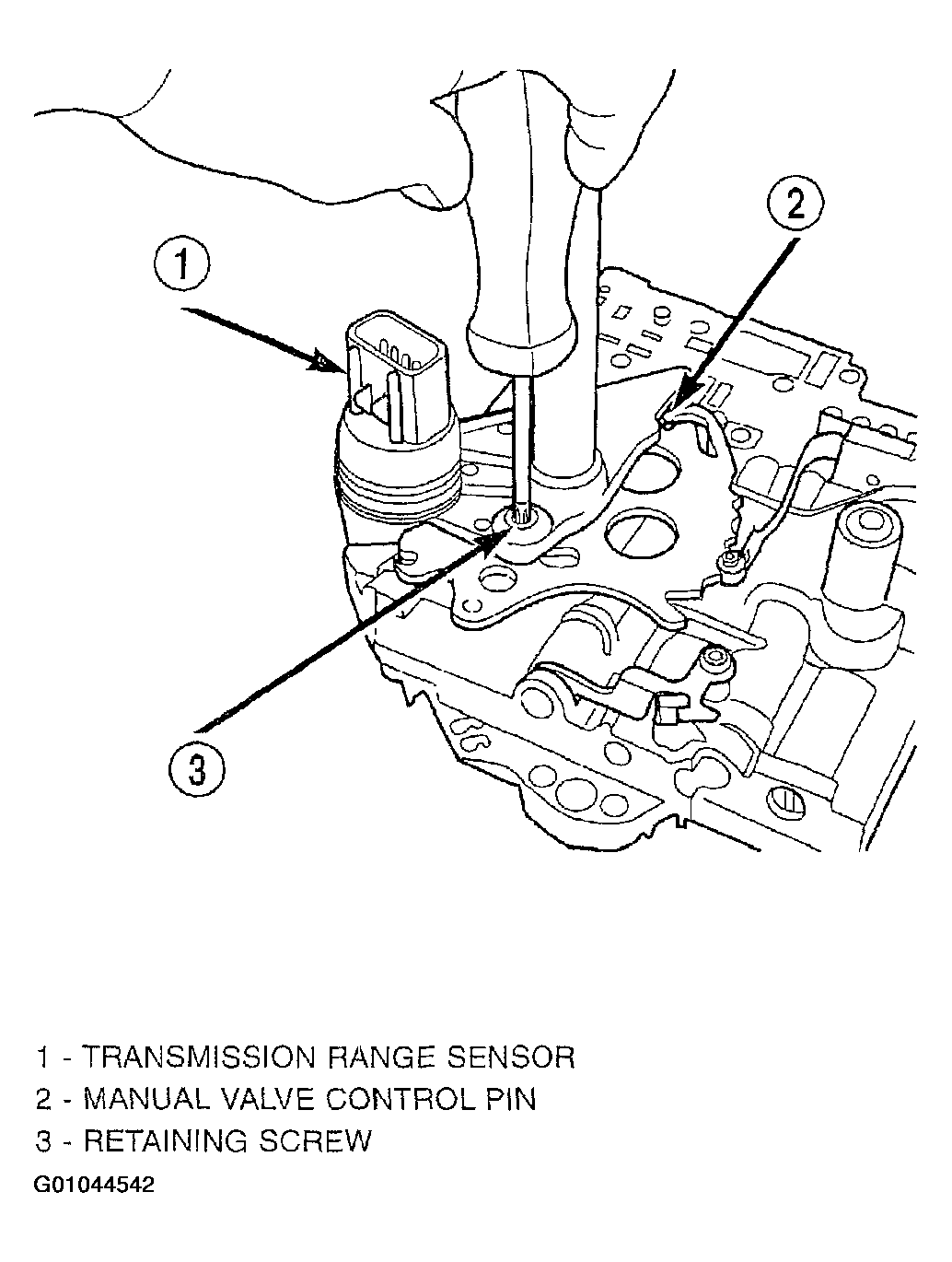

    Fig 15: Installing Transmission Range Sensor Retaining Screw
    G01044542Courtesy of DAIMLERCHRYSLER CORP.
  16. Install manual shaft seal (Fig 16).

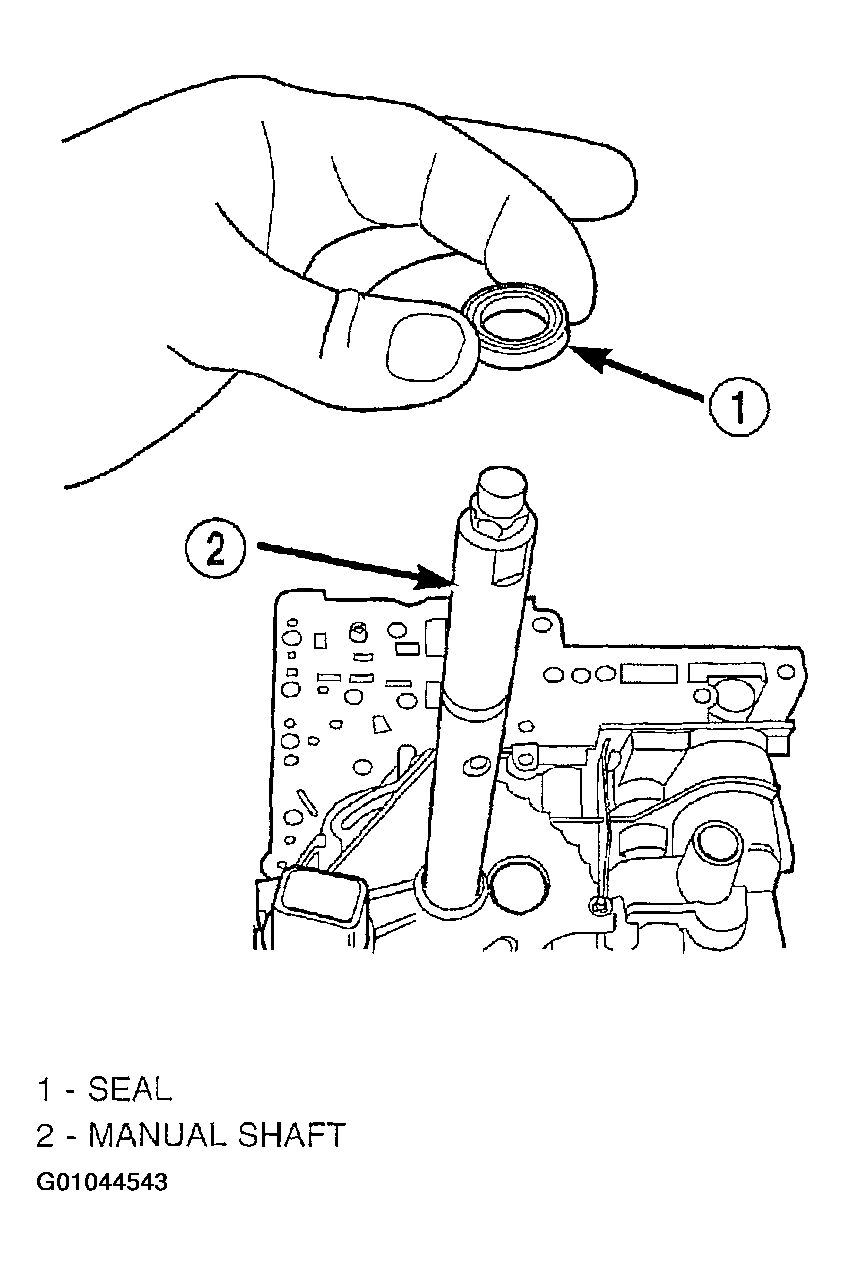

    Fig 16: Installing Manual Shaft Seal
    G01044543Courtesy of DAIMLERCHRYSLER CORP.
