Airbag Control Module (ORC) (Base) Connector End View

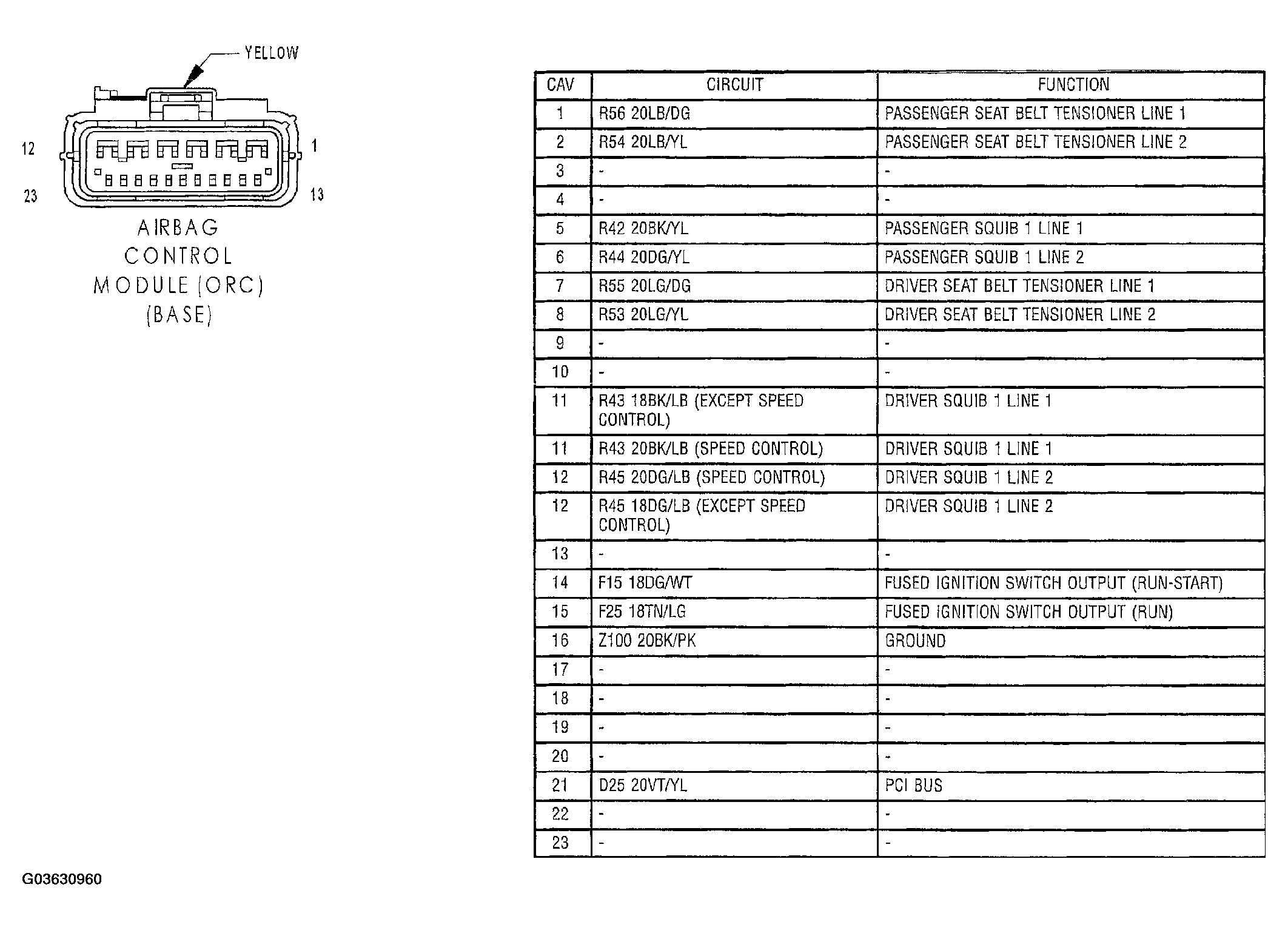

Fig 1: Airbag Control Module (ORC) (Base) Connector End View
G03630960Courtesy of CHRYSLER GROUP, LLC
