Blower Motor Resistor Block Connector End View

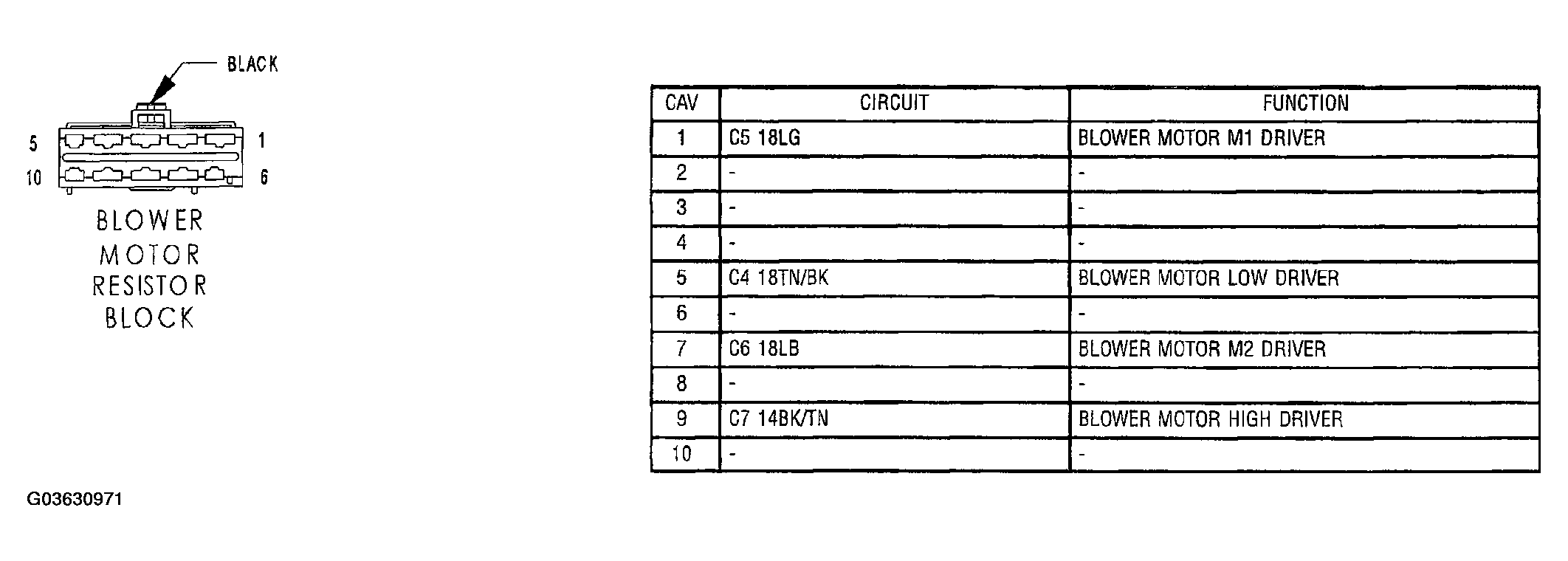

Fig 1: Blower Motor Resistor Block Connector End View
G03630971Courtesy of CHRYSLER GROUP, LLC
